| Categories | Grooved Heat Pipe |
|---|---|
| Brand Name: | Transense |
| Model Number: | C10100 |
| Certification: | Rohs |
| Place of Origin: | Jiangsu, China |
| MOQ: | 1 ton |
| Price: | USD LME Cu + Fabrication cost |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 200 Tons one month |
| Delivery Time: | 3-4 weeks |
| Packaging Details: | Bundle and wooden case |
| Product name: | Oxygen-Free Grooved Heat Pipe |
| colour: | Red |
| Annealing state: | semi-hard |
| Standard: | JISH3300;GB/T19447;EN12735 |
| Surface: | Washed |
| Grade: | Copper |
| Alloy or not: | Non-Alloy |
| Material: | C10100 |
| Company Info. |
| transense copper |
| View Contact Details |
| Product List |

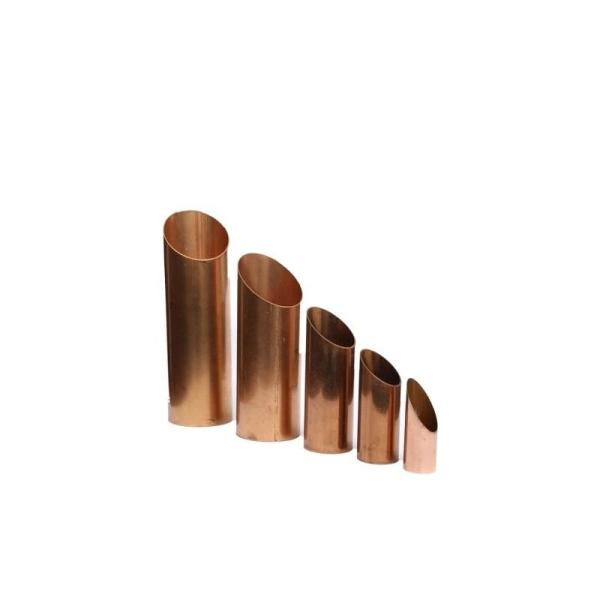

Straight ASTM C10100 Copper Tube Pipe
Product description
The copper tube has a strong and corrosion-resistant property, and it is the first choice for modern contractors to install the plumbing, heating and cooling pipes in all residential commercial buildings.
Used to make heat transfer equipment (such as condenser, etc.). It is also used in oxygen - making equipment to assemble cryogenic piping. Copper pipe is easy to process and connect, so that it can save material and total cost when installing. The copper tube has a strong and corrosion-resistant property, and it is the first choice for modern contractors to install the plumbing, heating and cooling pipes in all residential commercial buildings. Small diameter copper tubes are often used to transport pressurized liquids (such as lubricating systems, oil pressure systems, etc.) and pressure gauges for instrumentation
| Product name:Grooved Heat Pipe |
| Nominal Size | Outer diameter | Bottom wall thickness | Fin height | Apex angle | Total wall thickness | Fin number | Unit weight |
| mm | mm | mm | ° | mm | N | g/m | |
| 3*0.25+0.15 | 3 | 0.25 | 0.15 | 15 | 0.40 | 31/28/55/40 | 20.8 |
| 3*0.30+0.10 | 3 | 0.30 | 0.10 | 10 | 0.40 | 80 | 31 |
| 4*0.30+0.25 | 4 | 0.30 | 0.25 | 10 | 0.55 | 55 | 42 |
| 6*0.20+0.05 | 6 | 0.20 | 0.05 | 10 | 0.25 | 110 | 35 |
| 6*0.20+0.10 | 6 | 0.20 | 0.10 | 10 | 0.30 | 80/100/110 | 40 |
| 6*0.20+0.20 | 6 | 0.20 | 0.20 | 10 | 0.40 | 65/30 | 49 |
| 6*0.25+0.10 | 6 | 0.25 | 0.10 | 10 | 0.35 | 100/80 | 47 |
| 6*0.28+0.12 | 6 | 0.28 | 0.12 | 10 | 0.40 | 100 | 54 |
| 6*0.30+0.25 | 6 | 0.30 | 0.25 | 10 | 0.55 | 55 | 54 |
| 8*0.20+0.10 | 8 | 0.20 | 0.10 | 10 | 0.30 | 110 | 59 |
| 8*0.25+0.10 | 8 | 0.25 | 0.10 | 10 | 0.35 | 110 | 51 |
|
