AlTiN Coating 4mm Solid Carbide Ball Nose End Mill 8mm 2 Flutes 3D Milling

Categories Ball Nose End Mill
Brand Name: RLD Tools
Model Number: HRC50-R2
Place of Origin: China
MOQ: 1
Price: EXW 2.1USD/negotiable
Payment Terms: T/T/PayPal/Credit Card
Supply Ability: 100000pcs/month
Delivery Time: 5-8 work days
Packaging Details: One piece end mill in a plastic pipe, ten pieces a bundle, then in carton.
Product name: HRC50 2 Flutes 4mm Ball Nose End Mill
Diameter: 4R2
Flute Length: 8mm
Overall length: 50mm
Shank diameter: 4mm
Helix: 30°
Flutes: 2
Suitable for: Low-alloy steel, iron, cast iron, etc.
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

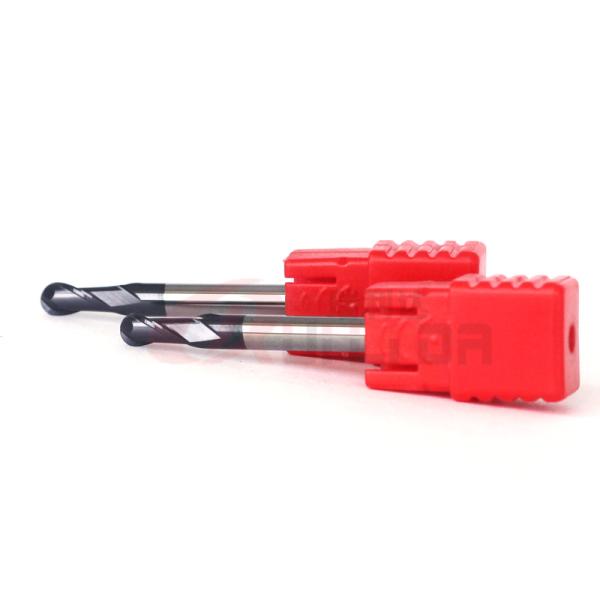

AlTiN Coating 4mm Solid Carbide Ball Nose End Mill 8mm 2 Flutes 3D Milling

HRC50 2 Flutes 4mm Diameter Carbide Ball Nose Endmill For 3D Milling with AlTiN Coating


Superior Ball R Precision


Excellent heat & Wear Resistance


Bigger Corner Radius


Lower cutting resistance


Product nameRLD HRC50 2 flutes 4mm ball nose end mill
SpecificationR2*8*50*4D*2F
Suitable forGeneral steel under hardness HRC45, stainless steel, iron, cast iron, etc.
Machine typeCNC Milling
Flutes2
CoatingAlTiN
Helix30°
Co10%
HRA91.8
TRS Min(N/mm²)4000
ToleranceWithin 0/-0.02mm
Processing machineANCA/

Carbide Raw Material Introduction


End mill gradeCarbide rodGrain sizeHRAApplication
HRC50YG10X0.6μm91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45

HRC55WF250.6μm92.2Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60GU25UF0.4μm92.5Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65GU0920.2μm93.5Alloy Steel, Hardened Steel under hardness HRC62

Coating Introduction


Coating nameColorThicknessHardnessFrictionThe Max ℃
AlTiNBlack1.5-333000.4900
AlTiSiNCopper1.5-335000.351000
TiAlNDark Violet1-330000.4800
Blue NanoBlue2-432000.451000
AlCrNDark grey1.5-335000.31250
DLCBlack1-318000.1350
DiamondBlack2-12100000.02-0.1650
Coating can be customized according to requirement

RLD HRC50 2F Ball Nose End Mill Standard Size
Flute Dia(mm)Overall Length(mm)Cutting Length(mm)Shank Dia(mm)Flutes
150242
1.550342
250442
2.550542
350632
3507.542
3.550942
4501042
4751442
41001842
5501352
5501362
6501562
6752162
61002762
8602082
8753082
81003582
107520102
1010020102
127524122
1210024122
1410028142
1610032162
1810036182
2010040202
61501262
81501682
1015020102
1215024122
1415028142
1615032162
1815036182
2015040202


FAQ

1. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide tools which established in 2011.


2. Which CNC grinding machines do you use?

All of our carbide end mills are produced by ANCA & machines.

They are imported from Australia and Germany.


3. Which shipping method do you usually use?

We usually send goods by express like FedEx, UPS, DHL, EMS, ARAMEX, ETC.

For large amount, we can send by air or by sea.

We also can send products to your forwarder in China.


4. How about the delivery time?

For stock items, we can dispatch within 2 business days after receiving payment.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.


5. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.

We also can accept CNY (Chinese Yuan)


6. Can you produce special carbide tools?

Yes, we can produce special carbide tools according to your drawings or samples.


7. Do you attend international exhibitions?

Yes, we had attended exhibitions in Indonesia, India, Russia, Thailand, Vietnam,

Brazil, etc.
