| Manufacturer | Tesla |
| level | midsize car |
| Model | Model 3 2021 rear-wheel drive |
| Energy type | pure electric |
| Time to market | 2021.11 |
| Electric motor | Pure electric 264 horsepower |
| Pure electric cruising range (km) | 556 |
| Charging time (hours) | Fast charge 1 hour Slow charge 10 hours |
| Maximum power (kW) | 194(264Ps) |
| Gearbox | Electric vehicle single speed gearbox |
| LxWxH(mm) | 4694x1850x1443 |
| Body structure | 4-door 5-seat sedan |
| Maximum speed (km/h) | 225 |
| Official 100 km acceleration time (s) | 6.1 |
| BODY |
| Length(mm) | 4694 |
| Width(mm) | 1850 |
| Height(mm) | 1443 |
| Wheelbase(mm) | 2875 |
| Front track(mm) | 1580 |
| Rear Track(mm) | 1580 |
| Minimum ground clearance (mm) | 138 |
| Body structure | Sedan |
| Number of doors (pcs) | 4 |
| door opening method | swing door |
| Number of seats (pieces) | 5 |
| Curb weight (kg) | 1761 |
| Full load mass (kg) | 2170 |

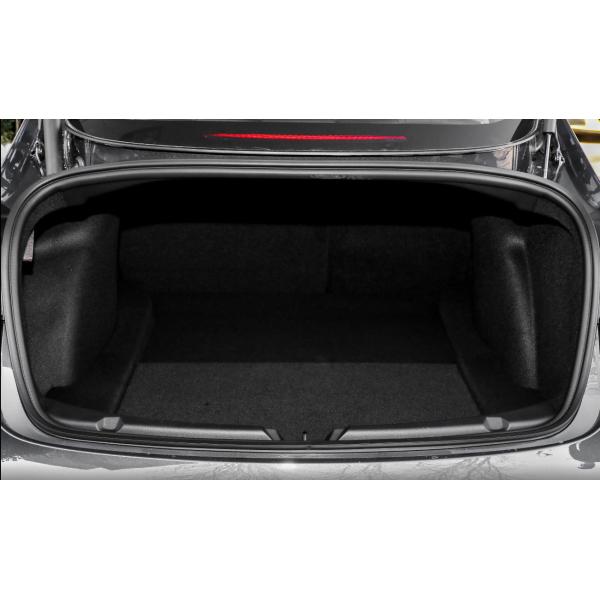

| Luggage compartment volume (L) | 649 |
| Motor description | Pure electric 264 horsepower |
| Motor type | Permanent Magnet / Synchronous |
| Motor total power (kW) | 194 |
| Motor total horsepower (Ps) | 264 |
| Rear motor maximum power (kW) | 194 |
| Number of drive motors | single motor |
| Motor layout | rear |
| Charging batteries |
| Battery Type | Lithium iron phosphate battery |
| Battery brand | Matsushita |
| Battery capacity (kWh) | 60 |
| Battery energy density (Wh/kg) | |
| Charging batteries | Fast charge 1 hour Slow charge 10 hours |
| ●Quick charge interface |
| Battery temperature management system | ●Low temperature heating |
| ●Liquid cooling |
| |
| Gearbox Description | Electric vehicle single speed gearbox |
| Number of gears | 1 |
| Transmission type | Fixed Ratio Transmission |
| Chassis/Steering |
|
| drive mode | rear drive |
| Four-wheel drive type | |
| center differential structure | |
| front suspension | Double wishbone independent suspension |
| rear suspension form | Multi-link independent suspension |
| steering type | Electric assist |
| body structure | load bearing |
| Front brake type | ventilated disc |
| rear brake type | ventilated disc |
| Parking brake type | Electronic parking |
| front tire size | 235/45 R18 |
| rear tire size | 235/45 R18 |
| ABS anti-lock brake, | ●Standard |
| Brake force distribution (EBD/CBC, etc.), | ●Standard |
| Brake Assist (EBA/BA, etc.), | ●Standard |
| Traction Control (TCS/ASR, etc.), | ●Standard |
| Body stability system (ESP/DSC, etc.), | ●Standard |
| Active safety warning system, | ●Lane departure warning |
| ● Forward Collision Warning |
| active braking, | ●Standard |
| Parallel assist, | ●Standard |
| Lane Keeping Assist, | ●Standard |
| road traffic sign recognition, | ●Standard |
| front airbag | ●Main driver's seat ●Co-pilot seat |
| side airbag | ●Front row |
| side air curtain | ●Standard |
| Seat belt not fastened | ●Standard |
| Tire pressure monitoring system | ●Tire pressure display |
| Child seat interface (ISOFIX) | ●Standard |
| passive pedestrian protection | ●Standard |
| parking radar | ●Front ●Back |
| Driving assistance video | ●Reversing image icon |
| cruise system | ●Cruise at fixed speed ●Adaptive cruise ●Full-speed adaptive cruise |
| Assisted driving level | ●L2 level |
| automatic parking | ○Optional |
| AUTOHOLD | ●Standard |
| Hill Assist (HAC) | ●Standard |
| driving mode selection | ●Sport ●Standard Comfort |
| Brake Energy Recovery System | ●Standard |
| Low-speed driving warning sound | ●Standard |

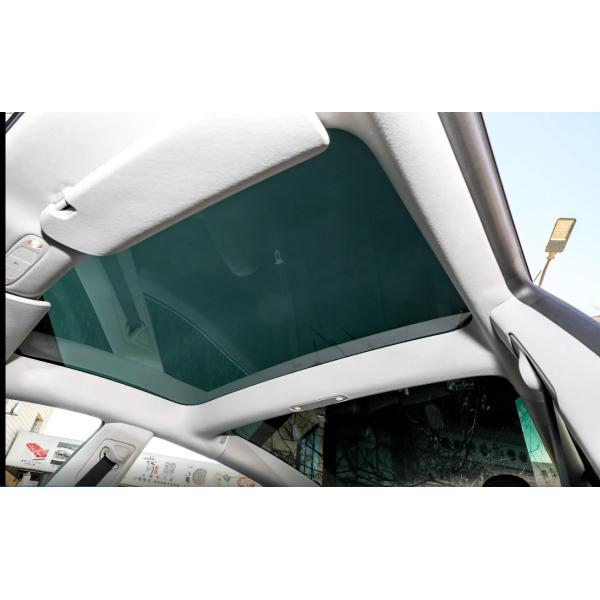

| sunroof type | ●Segmented non-openable panoramic sunroof |
| Aluminum alloy wheels | ●Standard |
| Frameless Design Door | ●Standard |
| hidden door handle | ●Standard |
| Steering wheel material | ●Cortex |
| Steering wheel adjustment | ●Up and down + front and rear |
| Electric steering wheel adjustment | ●Standard |
| Steering wheel function | ●Multifunctional control ●Memory ●Heating |
| Electric tailgate | ●Standard icon |
| Electric tailgate position memory | ●Standard |
| interior central lock | ●Standard |
| Remote key type | ○Smart remote control key 1200 yuan ●NFC/RFID key ●Mobile phone
Bluetooth key |
| keyless entry | ●Diagram of the whole car |
| keyless start | ●Standard icon |
| Remote start | ●Standard |
| remote control mobile vehicle | ○Optional |
| vehicle call function | ○Optional |
| Built-in driving recorder | ●Standard |
| mobile phone wireless charging | ●Standard icon |
| Seat configuration ●Standard ○Optional none |
|
| seat material | ●Faux leather |
| Electric seat adjustment | ●Main driver's seat ●Co-pilot seat |
| Overall adjustment of the driver's seat | ●Forward and backward movement ●Backrest angle ●Height adjustment |
| Local adjustment of the driver's seat | ●waist |
| Overall adjustment of passenger seat | ●Forward and backward movement ●Height adjustment ●Backrest angle |
| Second row seat local adjustment | ●Headrest |
| front seat function | ●Heating ●Memory (main driver) |
| Second row seat function | ●Heating |
| Front/rear armrests | ●Front row ●Rear row |
| rear cup holder | ●Standard |
| Rear seat reclining ratio | ●40:60 |
| intelligent interconnection | ●Standard ○Optional |
| none |

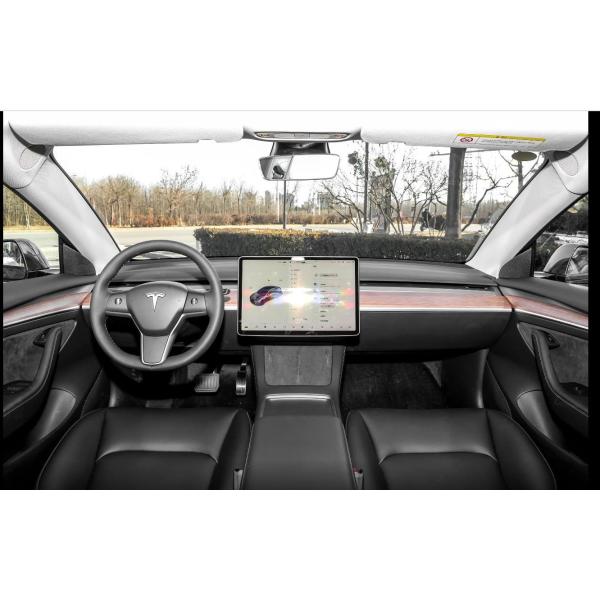

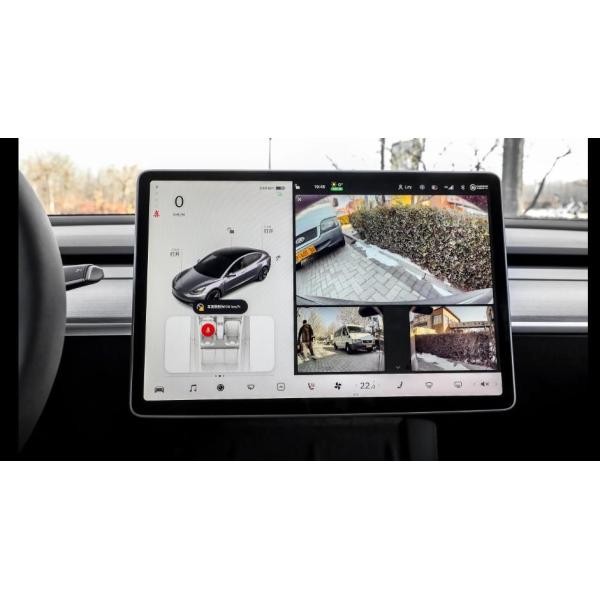

| Central control color screen | ●Large screen |
| Center control screen size | ●15 inches |
| GPS Navigation System | ●Standard |
| Navigation traffic information display | ●Standard |
| Bluetooth/Car Phone | ●Standard |
| Internet of Vehicles | ●Standard |
| OTA upgrade | ●Standard |
| voice recognition control system | ●Standard |
| multimedia interface | ●USB/Type-C |
| Number of USB/Type-C ports | ●2 in the front row ●2 in the rear row |
| Number of speakers (pcs) | ●8 |
| Lighting configuration ●Standard ○Optional none |
|
| Low beam lights | ●LED |
| High beam | ●LED |
| daytime running lights | ●Standard |
| Adaptive far and near light | ●Standard |
| automatic headlights | ●Standard |
| headlight height adjustment | ●Standard |
| Headlights turn off | ●Standard |
| glass/rearview mirror | ●Standard ○Optional |
| none |
| power windows | ●Front row ●Rear row |
| One key lift of windows | ●The whole car |
| Window anti-pinch function | ●Standard |
| Outside rearview mirror function | ●Electric adjustment icon ●Heating ●Electric folding ●Automatic anti-glare ● Main driver's seat + lighting ● Co-driver's seat + lighting |
| Inside rearview mirror function | ●Automatic anti-glare |
| interior vanity mirror | ● Main driver's seat + lighting ● Co-driver's seat + lighting |
| Rain-sensing wipers | ●Standard |
| Multilayer soundproof glass | ●Front row |
| Air conditioner/refrigerator | ●Standard ○Optional |
| none |
| Air conditioning control method | ●Automatic |
| rear air outlet | ●Standard |
| temperature zone control | ●Dual zone air conditioner |
| Assisted Driving Operating System | ●Autopilot |
| Assisted driving chip | ●HW 3.0 |
| Assisted driving chip computing power (TOPS) | ●144 |
| Vehicle Intelligent System | ●Tesla in-vehicle system software |
| Vehicle Smart Chip | ●AMD Ryzen |
| Mobile App Remote Control | ●Service reservation ●Vehicle monitoring ●Digital key ●Charging
management ●Remote control |
| Heat Pump Management System | ●Standard |
| Number of cameras | ●8 |
| Ultrasonic radar quantity | ●12 |
| Number of mmWave radars | ●1 |
