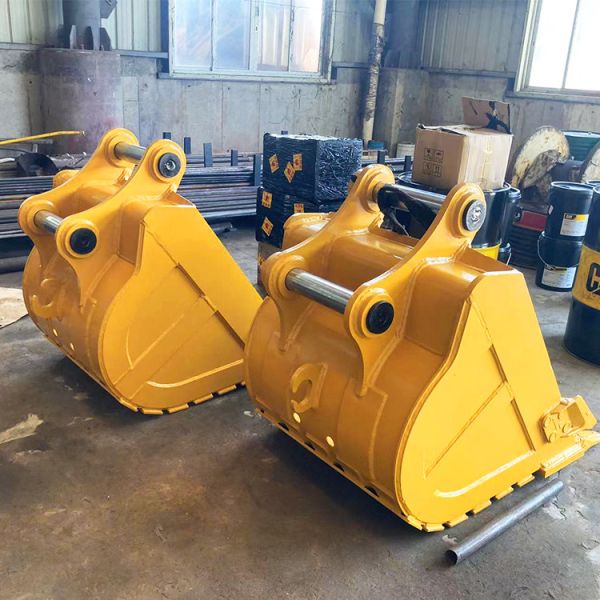

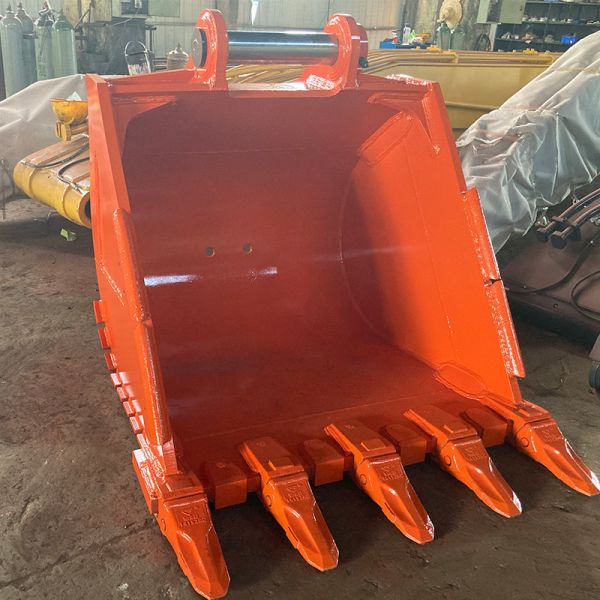

Construction Machinery Parts Heavy Duty 1.3 cbm Rock Bucket Rock HD Bucket for ZX260 XE260U SY260U

click here to check out the catalog:Zhonghe Machinery Catalog-Contact Sales Manager Aria Directly

Rock bucket is a kind of material classification of Excavator Bucket, excavator bucket is divided into standard bucket, reinforcing bucket, rock bucket, gravel bucket, etc. .

Rock Hopper belongs to structural products, the utility model is composed of a tooth base plate, a bottom plate, a bottom reinforcing plate (two layers) , a side plate, a wall plate, a hanging lug plate, a back plate, a bucket lug plate, a bucket lug sleeve, a bucket tooth, a tooth base, a guard plate or a bucket horn, etc. .

Our strength base plates provide structural support while still reducing the amount of steel used, which in turn reduces weight. The lack of a single horizontal channel allows optimal material flow, opening the mouth wider to accept material easier.

1. Standard bucket
Q355B material, standard plate thickness, and China high-quality bucket tooth base. It is mainly applicable to light operation occasions such as excavation of general clay and loading of sand, soil and gravel.

2. Rock bucket
Q355B material, NM400 optional. On the basis of the standard bucket, reinforcing plates are added at the bottom, and the tooth plate and side plate are thickened. It is mainly applicable to heavy and light industrial occasions such as excavation of hard soil and loading of soil, gravel and gravel mixed with soft sand.

3. Heavy duty rock bucket:
Q355B+Hardox500. On the basis of the reinforced bucket, the bottom plate and side plates are thickened. It is mainly applicable to the excavation of hard rocks, secondary hard rocks and wind fossils mixed in the soil; Loading of hard rock and ore after blasting.

GOOD SERVICE:
1. Online support within 24 hours.
2. Appointment video technical support.
(Our engineers have focused on excavator boom and attachment over 10 years)
3. Long excavator boom shall be two/three jointed pcs to make it fittable into container to save shipping cost.

WARRANTY
1 year for long reach boom, 180 days for cylinder and linkage, 90 days for bucket.
