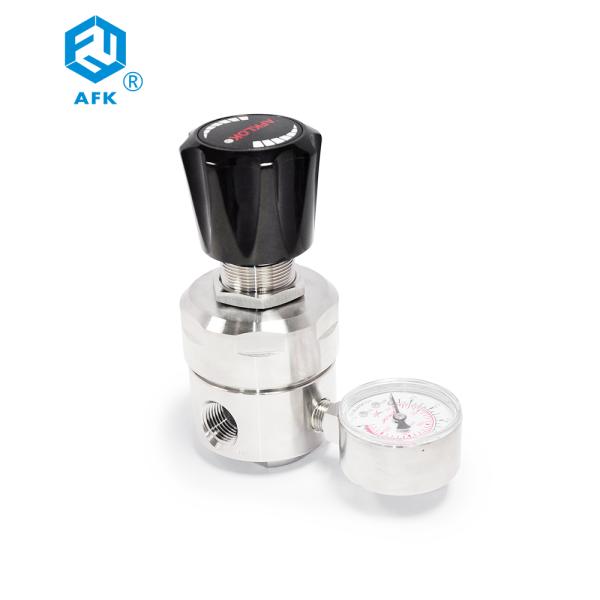

AFK Low Pressure 1.6Mpa Stainless Steel Pressure Regulator For Toxic / Corrosive Gases

The single gauge pressure of R12 pressure regulator of this picture product is 1.6Mpa, which is equivalent to the pressure of 200psi, and the actual gas pressure shall not exceed 200psi, that is, 1.6Mpa

Technical Data
1. Maximum inlet pressure: 500PSI or 3000psi

2. Outlet pressure range: 0 ~ 30, 0 ~ 60, 0 ~ 100, 0 ~ 150, 0 ~ 250

3. Material of internal components:

Valve seat: PCTFE

Diaphragm: Hastelloy

Filter element: 316L

4. Working temperature: - 40 ℃ ~ + 60 ℃ (- 40 ℉ ~ + 140 ℉)

5. Leakage rate (helium): Inside: no visible bubbles External: ≤ 1x10-9 mbar L / S

6. Flow coefficient (CV): 1.0

7. Parent port:

Inlet: 1 / 2NPT

Outlet: 1 / 2NPT

Pressure gauge port: 1 / 4NPT

Ordering information

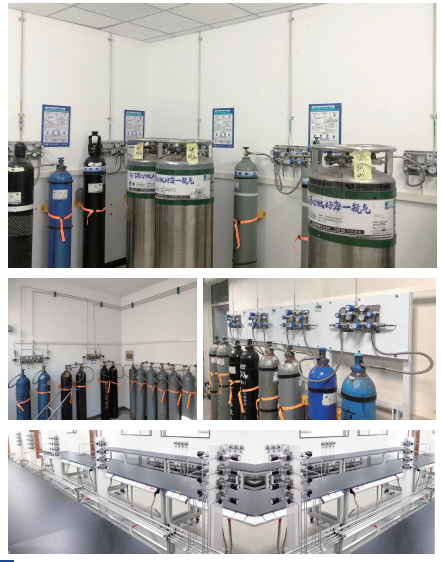

Project Case

1. Maintain gas purity
2. Uninterrupted gas supply: the system can switch between gas cylinders manually and automatically to ensure continuous gas supply
3. Low pressure warning: when the air pressure is lower than the alarm limit, the alarm device can automatically start the alarm
4. Stable gas pressure: the system uses two-stage decompression to supply gas, which can obtain very stable pressure
5. High efficiency: through the gas supply control system, the gas in the gas cylinder can be fully used to reduce the gas storage margin and reduce the gas consumption cost
6. Easy operation: all gas cylinders are stored in the same location, reducing the operation of handling and installation, and saving time and cost
