| Categories | Flange |
|---|---|
| Brand Name: | FLRS |
| Model Number: | FLRS-F058 |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 2 pieces |
| Payment Terms: | T/T， L/C， Western union， paypal |
| Supply Ability: | 100tons/month |
| Delivery Time: | 8-20days |
| Packaging Details: | carton/ plywood cases/plywood pallets |
| Pressure: | 150LB |
| Wall Thickness: | SCH10S |
| Type: | Welding Neck |
| Face: | Raised Face |
| Package: | Plywood Case |
| Application: | Industrial,Petroleum |
| Connection: | Butt Weld |
| Technics: | Forged |
| Company Info. |
| Shaanxi Flourish Industrial Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

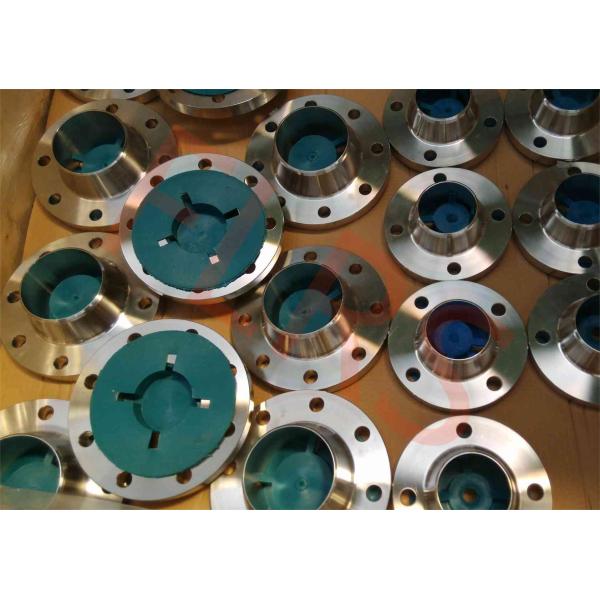

Size 3 inch Wall Thickness SCH10S Stainless Steel A182 F304/304L Raised Face Welding Neck Pipe Flange
Flanges are used in place of welded connections to enable maintenance operations since they can be dismantled quickly and conveniently, unlike other mechanical connectors. As a result, they are commonly used in temporary or moving installations, dismantling piping systems, transitions between dissimilar materials, or connections in areas unfit for solvent cementing.
Flange technical parameters:
| Facing Type | Raised-Face, Flat-Face, Ring Type Joint, Tongue and Groove, Male and Female |
| OD | 15mm-6000mm. 1/2"to 80".DN10-DN3600 |
| Pressure | 150#-3000#,PN0.6-PN400,5K-40K,API 2000-15000 |
| Standard | ANSI B16.5,ANSI B16.47 A/B, EN1092-1, SABA1123, JIS B2220, ALL DIN,
ALL GOST, ALL UNI, AS2129, API 6A , BS4504, etc |
| Wall thickness | SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40,
SCH60, SCH80, SCH160, XXS and etc. |
| Stainless steel | A182F304/304L, A182F316/316L, 316H, 321H,304H, 310H, A182F321,
A182F310S, A182F347H, 347L, 317L, A182F316Ti, A182 F317, 904L,
1.4301, 1.4307, 1.4401, 1.4571, 1.4541 etc. |
| Carbon steel | A105, A350 LF1,A350LF2,A350LF3, Q345, E24, A42CP,A48CP, A515 GR55, A515GR60, A515GR70, A516 GR60, A516 GR70, ST37.2,ST45.8, Q235, STEEL20, P235GH,P245GH, P250GH, P265GH, P280GH, P295GP etc. |
| Duplex steel | UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462,
1.4410, 1.4501, A182F51, A182F53 and etc. |
| Pipeline steel | A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc |
| Nickel alloy | inconel600, inconel625, inconel690, incoloy800, incoloy 825,
incoloy 800H ,C22, C-276, Monel400, Alloy20 etc. |
| Cr-Mo alloy | A182F11, A182F5, A182F22, A182F91, A182F9, 16mo3 etc. |
| Application | Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform |
| Attention | ready stock,faster delivery time;available in all sizes,customized;high quality |
|
