42KV Stress Control Tube Chemical Resistant Heat Shrink Tubing

Categories Dual Wall Heat Shrink Tube
Brand Name: Long
Model Number: 35mm
Certification: ISO
Place of Origin: China
MOQ: 1m
Price: Can discussible
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 30000meters per day
Delivery Time: 1-8days
Packaging Details: Roll/Carton
Size: 35mm
Providing effective electrical stress control for MV cable terminations and joints up to: 35-42 kV
Continuous operation temperature: 31°C
Shrink temperature start at: 91°C,
Fully recovered at: 129°C
After Recovered (Max): 15°C
Wall thickness: 2.0mm
m/Roll: 25m
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

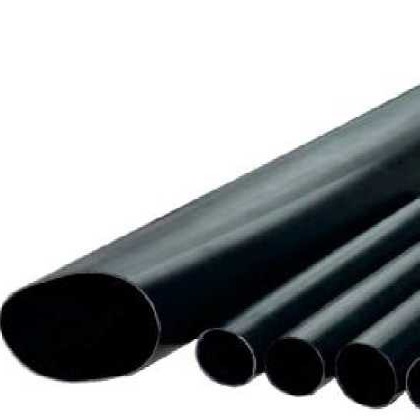

42KV Stress Control Tube Chemical Resistant Heat Shrink Tubing

Stress Control Tube Chemical Resistant Heat Shrink Tubing


・ Manufactured from cross linked polyolefin


・ Providing effective electrical stress control for MV cable terminations and joints up to 42 kV


・ Continuous operation temperature: -40°C to 100°C


・ Shrink temperature: start at 90°C, and fully recovered at 130°C


・ Color: black & Red


Selection Table


Product No.Inner Diameter/mmAfter Recovered Wall Thickness (±0.2)/mmStandard Cut Length /mmStandard Continuous Length (m/roll)
As Supplied (Min)After Recovered (Max)
10kV WRSYL-30/1130112.0100-120025
10kV WRSYL-35/1435142.0100-120025
10kV WRSYL-40/1740172.0100-120025
10kV WRSYL-45/1945192.0100-120025
10kV WRSYL-55/2555253.2100-120015
10kV WRSYL-60/2560252.3100-120015
10kV WRSYL-70/2970293.2100-120015

20kV WRSYL Series

20k WRSYL-35/1435142.0100-120025
20kVWRSYL-40/1740172.0100-120025
20kVWRSYL-45/1945192.0100-120025
20kVWRSYL-55/2555253.2100-120015
20kVWRSYL-60/2560252.3100-120015
20kVWRSYL-70/2970293.2100-120015
30kV WRSYL Series
30kVWRSYL-45/1945192.0100-120015
30kVWRSYL-55/2455243.2100-120015
30kVWRSYL-70/2970293.2100-120015
30kVWRSYL-85/4085403.5100-120015
30kVWRSYL-90/4090403.5100-120015
35kV WRSYL Series
35kVWRSYL-45/1945192.0100-120015
35kVWRSYL-55/2455243.2100-120015
35kVWRSYL-70/2970293.2100-120015
35kVWRSYL-85/4085403.5100-120015
35kVWRSYL-90/4090403.5100-120015
Technical Data
Property ITest MethodStandard
Tensile StrengthASTM-D-638NlOMPa
Elongation at BreakASTM-D-638N300%
Tensile Strength after AgingASTM-D-63838MPa (130^,168 hrs)
Elongation at Break after AgingASTM-D-6383240% (1302,168 hrs)
Dielectric ConstantIEC 6025015-25
Volume ResistivityIEC 60093& 1 x 1010 Q • cm
Longitudinal ShrinkageASTM-D-2671<5%
EccentricityASTM-D-2671<30%
Water AbsorptionISO 62W0.5%


Changzhou Longchuang Insulating Material Co., Ltd is a high-tech enterprise with headquarter in Changzhou, China. Founded in 2010,The Long brand has always been a guarantee for the supply of heat shrink tubing products and services. From product design and raw materials purchasing to final inspection and testing, Longchuang has a perfect quality assurance program covering the entire production process. So far, we have been successfully certified by ISO 9001, ISO 14001, ISO/TS 16949, UL, CSA, 3C, etc.

At Longchuang, we know this can be done.


FAQ

Professional Production Quality is Reliable

Q1 . Which certifications or test reports do you have?

A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?

A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.

For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?

A : We have a lot of products in stock. We can send the stock products in 3 work days.

If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?

A : Yes. We can provide samples.

Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?

A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
