W01-M58-7679/20C2 Firestone Air Bags 2 Convoluted Industrial Air Springs For Cutting Machine

Firestone Air Bags W01-M58-7679/20C2 Double Convoluted Industrial Air Springs For Cutting Machine

OEM NO.

Firestone W01-M58-7679/20C2

Firestone W01M587679/20C2

Firestone W01 M58 7679/20C2

Firestone WO1-M58-7679/20C2

Firestone WO1M587679/20C2

Firestone WO1 M58 7679/20C2

Goodyear 2B9-269

Goodyear 2B9 269

Goodyear 2B9269

Dunlop S0 9280

Dunlop S09280

Gart T291/2B

R.O.R/Meritor 21221356

Weweler US 07394F

Schmitz Trailer 016808

Granning 15670

Specifications and Detailed Technical Parameters:AIRSUSTECH 2B7679

Nut/blind nut

Top plate screw (nut) teeth: 2XM10×1.5
The screw center distance of the top cover plate: 89mm
Screw (nut) teeth of the bottom cover plate: 2XM10×1.5
The screw center distance of the bottom cover plate: 89 mm

Air hole/air inlet/air fittings

Air hole/air inlet: 1/4NPTF

The screw center distance between the air hole and the nut: 44mm

Cover plate

Top plate diameter: 160 mm

Diameter of the bottom cover: 160mm

Bell rubber bellows

Maximum diameter of rubber bellows: 262 mm
Natural diameter of rubber bellows:240 mm
Working stroke: minimum 79 mm to maximum 325 mm
Maximum height: 325mm
Minimum height: 95 mm
Stroke height: 230mm

Bumper block/bumper block

Without bumper block

Belt loop/Girdle hoop/Girdle ring

One piece of belt loop/girdle hoop/girdle ring

Packing Details

Rubber air springs for cutting machines

Cutting machine tools belong to the category of electrical processing, and are mainly composed of three major parts: CNC wire cutting machine tools, mechanical, electrical and working systems. On the premise of not using any shock absorption equipment, the cutting machine will vibrate during use.
In order to avoid unnecessary trouble caused by vibration and improve the service life of the machine, it is necessary to dampen it. The rubber air spring has a good effect of absorbing shock absorption, so the rubber air spring of Guomat can be widely used in cutting machine tools. If you have any requirements, please feel free to contact us via email or telephone.

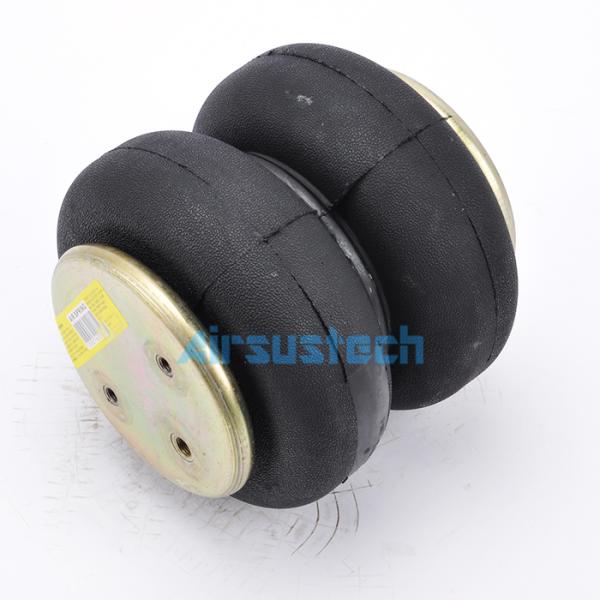

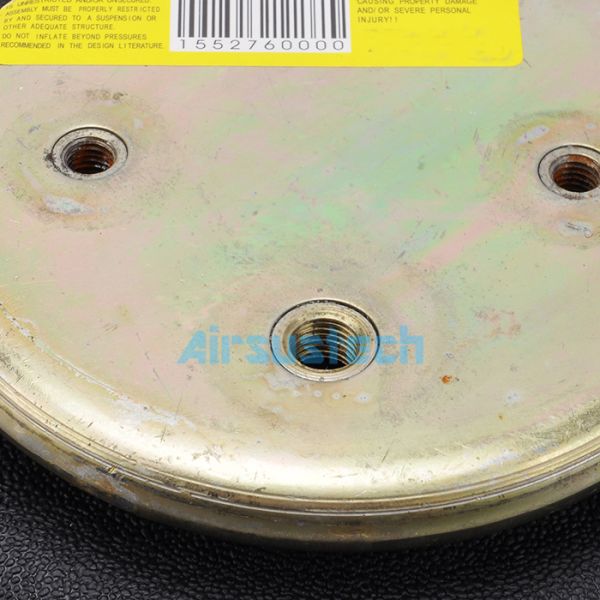

The related picture of 2B7679
