| Categories | Clear PETG Sheet |
|---|---|
| Place of Origin: | Jiangsu, China |
| Brand Name: | Jiaou |
| Model Number: | PETG Sheet |
| Supply Ability: | 100 Tons Peer Day |
| MOQ: | 1000 kilograms |
| Price: | Negociated |
| Certification: | FDA, GRS, Reach, RoHS, ISO9001 |
| Packaging Details: | Sample: A4 size rigid PETG with PP bag in box Sheet packing: 30kg per bag or as your requirement Pallets packing: 500- 2000kg per wooden pallet Container loading: 20 tons as normal |
| Payment Terms: | T/T |
| Delivery Time: | 7 Work Days |
| Product name: | Clear PETG Sheet Custom Size |
| Material: | PETG |
| Thickness: | 0.18-7mm |
| Size: | 2440mm |
| Other Product Name: | PETG Sheet |
| Origin: | China |
| Color: | Transparent |
| Raw Material: | PETG Resin |
| Application: | For sale displays, sneeze guard, machinery guards |
| Feature: | High Gloss |
| Sample: | Available |
| Packing: | Pallets |
| Certificate: | ISO |
| Port: | Shanghai,Lianyungang,Zhangjiagang |

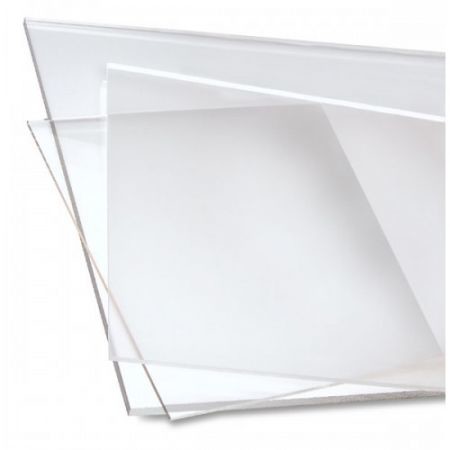

Clear PETG Sheet Custom Size Plastic Transparent PETG Sheet For Sneeze Guards
Product Description
PETG sheet is a thermoplastic sheet made from polyethylene terephthalate resin. PETG is capable of producing complex shapes, precise details, deep draws and composite curves without the worry of durability. PETG is easy to mold, die-cut and stamp. It also brings greater design freedom and lower manufacturing costs. In sheet form, PETG offers impact strength and manufacturing ease unmatched by acrylic, and its durability can significantly reduce packaging and shipping costs.
| Item | Typical Value |
| Product name | Plastic 1mm Clear PETG Sheet For Sneeze Guards |
| Width | 300mm - 2100mm |
| Thickness | 0.18mm - 7mm |
| Size | Custom |
| Material | PETG |
| Color | Transparent, Custom |
| Application | Sneeze Gurads |
| Surface | Smooth |
| Feature | Rigid |
| Sample | Available |
• Outstanding thermoforming characteristics, particularly in deep
draw applications
• Good impact resistance
• Less brittle than acrylic
• Resistant to common cleaners used on point of purchase displays
• Allows for rigid thermoforming cycle times
• FDA compliant grades available
• Impact strength greater than acrylic and approaches polycarbonate
• 86% light transparency compared to 87% for polycarbonate and 92%
for acrylic
• Die cuts/punches easily
• Low forming temperature
• Printable
• Chemical resistant
• Self-extinguishing
| Item | Typical Value | Testing Method |
| Intrinsic Viscosity(dL/g) | 0.750+/-0.015 | Ubbelodhe viscometer |
| Specific Gravity(kg/cm³) | 1.27 | ASTM D792 |
| Moisture Absorption(%) | 0.15 | ASTM D570 |
| Tensile Strength@Yield 50mm/min( inch/min)(kgf/cm²) | 496 | ASTM D638 |
| Tensile Strength@Break 50mm/min( inch/min)(kgf/cm²) | 281 | ASTM D638 |
| Elongation@Yield 50mm/min( 2inch/min)(%) | 3.7 | ASTM D638 |
| Elongation@Break 50mm/min(2 inch/min)(%) | 136 | ASTM D638 |
| Flexural Strength 1.27mm/min(2 inch/min)(kgf/cm²) | 620 | ASTM D790 |
| Flexural Strength 1.27mm/min(3 inch/min)(kgf/cm²) | 20800 | ASTM D790 |
| Low temperature falling dart impact(g) | 791 | ASTM D358 |
| Atmospheric temperature falling dart(g) | 1701 | ASTM D358 |
| Lzod Impact Strength Notched@23 ℃(J/m) | 98 | ASTM D256 |
| Rockwell Hardness(℃) | 106 | R-scale |
| Heat Distortion Temperature 0.45Mpa(66 psi)(℃) | 77 | ASTM D648 |
Application For PETG Sheet
PETG is used as a Midrange priced product between Acrylic and Polycarbonate. The clearity of PETG approchies that of Acrylic and Impact Resistance of Polycarbonate. Also is used in Signing, Glazing, POP Displays, etc.
Package
FAQ
Q1. Are you a factory or trade company?
A: We are a professional manufacturer with 15 years' experience. If you have interests, welcome to visit our factory.
Q2. Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free, but charge by freight collection.
Q3. How about the lead time?
A: Normal sample supply it at once. Special samples need 3 days. mass production is generally 5-10 working days after receiving your initial payment.
Q4. Do you have any MOQ limits?
A: Normal Only 1000kgs, Special colors about 2000kg.
A: 30% T/T in advance, balance before shipment. We accept L/C at Sight.
|
