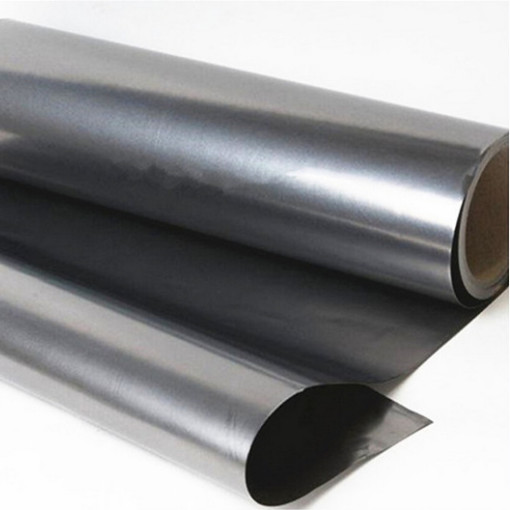

Flexible Electrosis Refractory Heat Dissipation Carbon Graphite Film Diaphragm

Flexible Electrosis Refractory Heat Dissipation Carbon Graphite Film Diaphragm

Flexible Diaphragm Smart Mobile Phone Melting Electrosis Refractory Synthetic Heat Dissipation Carbon Graphite Film

Features of Natural Graphite Sheet:
1:Excellent thermal conductivity ;
2:Electric conduction low thermal resistance ；light weight ; easy processing —can be die-cut
into different sizes, shapes. ;
3:Ease of use —graphite fins can be attached smoothly to any flat and curved surface. ;
4:Flexibility—it is easy to laminate with metal, insulating or double-sided adhesive to increase design flexibility and can be processed with
adhesives.

Typical application:
1:LED lighting/Heat sink:
2:Communication Devices; Between the Circuit board chip and heat sink of LCD-TV ; PDP chip
3:and IC Between the transformer and the shell. Between Led particle base and aluminum plate Between PCB board and its shell Between IC and heat sink
4 Laptop NB display card and network card Between heat sink and shell

Horizontal thermal conductivity: 1300~1600W//M·K
Vertical thermal conductivity: 15~20W//M·K
Heat temperature: - 40 ℃ to 400 ℃
Density: 1.7 ~ 2.0 g/cm³
Thickness: 0.027 ~ 0.08 mm
Hardness: 85 A
The surface resistance: ≤0.1Ω
