| Categories | Dry Mortar Plant |
|---|---|
| Brand Name: | MG |
| Model Number: | MGDM3.7 |
| Certification: | CE,SGS,FERI,BV,C/O |
| Place of Origin: | China |
| MOQ: | 1 Set |
| Price: | USD 3000-70000/SET |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 set within 30 days |
| Delivery Time: | 20 working days |
| Packaging Details: | Wooden box and bubble plastic wrapping packing |
| Name: | Automatic Tile Adhesive Dry Mortar Mixer Machine |
| Capacity: | 10-15T/H |
| Mixer type: | Twin Shafts Agravic Mixer Type |
| Material: | steel or as your require |
| Mixing time: | 3~5min/batch |
| Weight: | 10-15T |
| Warranty: | 1 Year |
| Voltage: | Customized 220V/380V/415V |
| Raw material: | Sand Cement Caco3, Fly ash, Additives |
| Color: | Customer's Request |
| Company Info. |
| Zhengzhou MG Industrial Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Description of 10-15T/H Dry Mortar Mixer Machine:
The tower type dry-mix mortar equipment is arranged from top to bottom according to the production process, the production process is smooth, the product variety is large, and the cross-contamination of raw materials is small. It is suitable for the production of ordinary mortar and various special mortars. In addition, the entire production line covers a small area, has a outward appearance, and has relatively low energy consumption. However, compared to other process structures, the initial investment is relatively large.
Technical parameters of 10-15T/H Dry Mortar Mixer Machine
| No. | Product Name | Model | Function and usage |
| 1 | Bucket elevator | Chain type lifting capacity: 15-100T/H Belt type lifting capacity: 10-35T/H | An high efficient vertical lifting device to carry Granular material from ground to silos top or premix hopper, powder material usually feeding by pump truck. |
| 2 | Detachable Storage System | Volume: 60T, 100T 150T, etc. | To store dry raw material powder such as cement, sand, fly ash, caco3, slag etc. |
| 3 | Screw Conveyor | Size: Φ165/Φ219/Φ273*6000m | An horizontal conveying device to carry the materials to the weighting hopper. |
| 4 | Weighting System | Volume: 2m3/3m3/4m3/6m3 | Automatic weighting different materials device |
| 5 | Twin Shaft Agravic Mixer | Mixing time:3-5min/batch Mixing capacity: 2m3/3m3/4m3/6m3/8m3/10m3 | To mix materials uniformly and high efficiency, MG fly cutter system in the top of mixer will cut and break up the fibre easily. |
| 6 | Finished product silo | Volume: 2m3/3m3/4m3/6m3 | To store the end product and preparing for packing. So that the weighting system, mixing system and packing system can work constantly. |
| 7 | Automatic weighing packaging machine | Impeller valve type Pneumatic valve type Packing range: 15-50kg/bag, packing accuracy can be + / - 0.5kg. | To pack the end product and automatically sewing, it can realize automatically weighing and packaging. |
| 8 | PLC Control cabinet | PLC touchable screen or computer operation. | To operate and control all machine parts. The touchable display can input and record more than 10 different kinds of formula. |
| 9 | Air compressor | Common type or screw compressor type | Provide air source for silos, dust collectors, premix hopper, twin shift agravic mixer, end product hopper, packing machines, etc. |

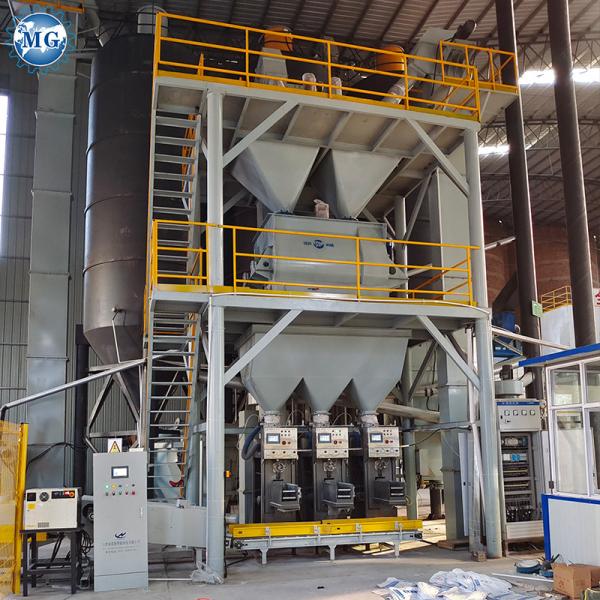

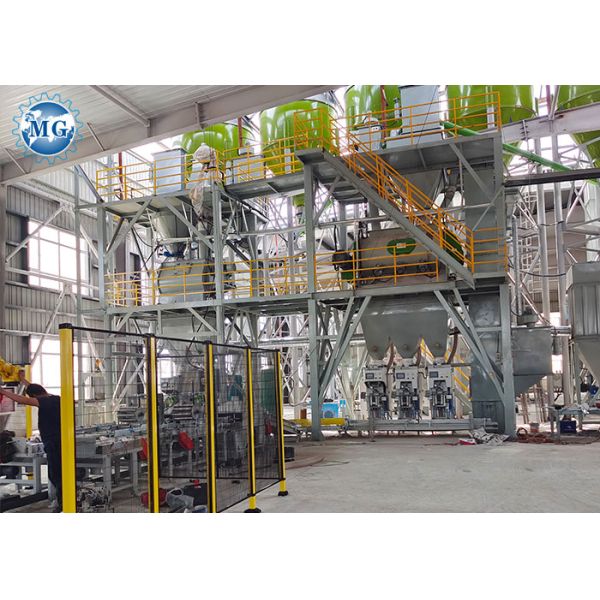

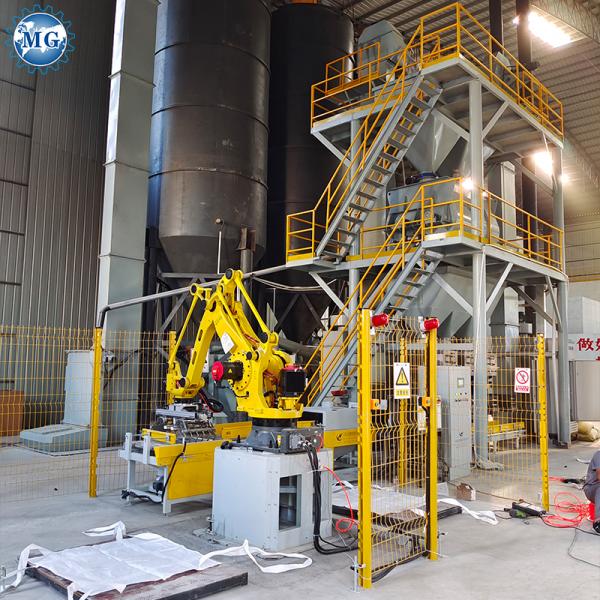

Working site of 10-15T/H Dry Mortar Mixer Machine

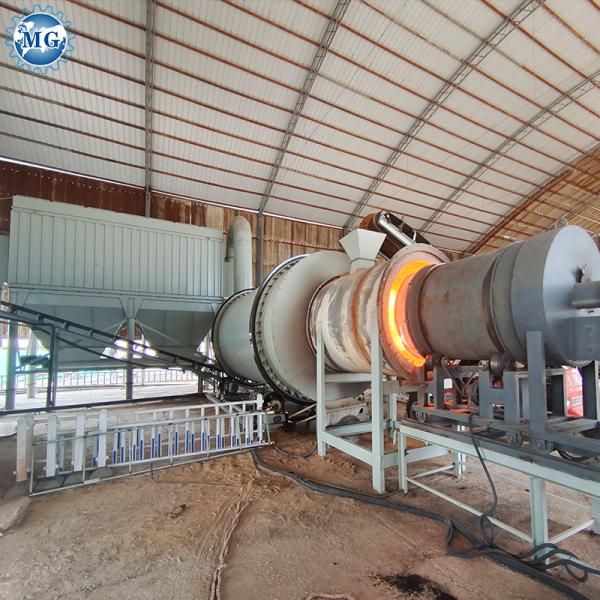

Dry sand production part: In order to obtain dry sand that meets the production requirements, the raw wet sand must be dried and the moisture content should be less than 0.5%. The main production equipment used in the drying process is a three-pass dryer, which is newly developed for the drying of sand Dryer, high thermal efficiency, novel structure, compact, stable and efficient. After the sand is dried, it is sent to a classification screen by a belt conveyor. The dry sand is divided into several grains according to the process requirements and stored in the discharge bin.
Our Service:
1.According to your inquiry, We will reply to you in 24 hours.
2.Best After-sales: We will send the technical personnel to the site for installation, commissioning and training work.
3.Warranty period 12 Months, in addition to the force majeure and man-made factors, the damage caused by design, process and manufacturing equipment, the seller is responsible for sending people to offer free repair.
4.We will send the spare parts as soon as possible when necessary, equipment repair parts provided by the seller are original, authentic, quality goods.
We are professional manufacture supplier dry mortar powder mixing equipment plant and sand dryer plant in China, supporting one-stop service for your plant. Details including working site design, foundation drawing, installation and debugging, worker training, formulations, chemicals, after-sale service and technical supports.
|
