| Categories | Hot Melt Adhesive Film |
|---|---|
| Brand Name: | Hunter Men |
| Model Number: | HT02-08 |
| Certification: | ROHS, REACH |
| Place of Origin: | Shenzhen,China |
| MOQ: | 1rolls |
| Price: | Negotiable |
| Payment Terms: | Western Union, L/C, T/T, D/A, D/P,Alibaba，Paypal |
| Supply Ability: | 300rolls per day |
| Delivery Time: | 1-15 work days |
| Packaging Details: | 100 Yards/Carton or as your demands |
| Structure: | TPU + Glassine Release Paper |
| Color: | Milky Translucent |
| Proportion: | 1.18±0.02g/cm³ |
| Melt Flow Index:: | 25±5g/10min（Condition:ASTMD1238-04） |
| Operate Temperature: | 100-160℃ |
| Thickness(mic): | 50mic,80mic,100mic,150mic |
| Length(Yards): | 100 Yards per roll or as your demands |
| Normal Size: | 140cm*100yards per roll or as your demands |

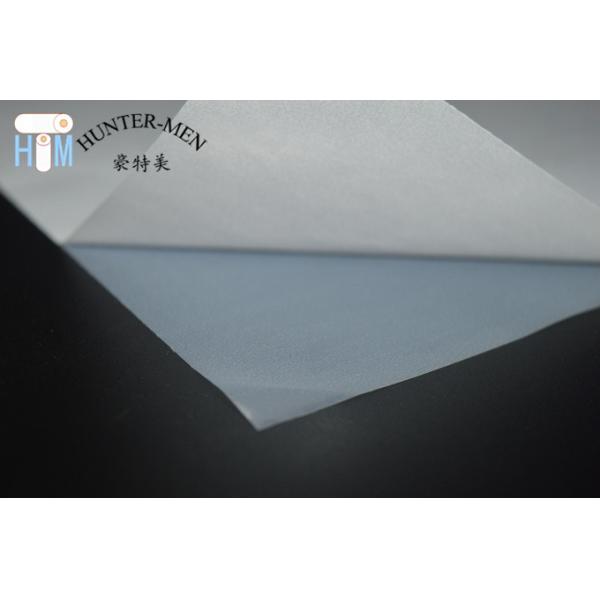

Lower Temperature Milky Translucent Hot Melt Adhesive Film for Bonding Leather and Plastics
This product is a thermoplastic hot-melt adhesive film it can be heat plasticized adhesive repeated. It has excellent adhesion for textile, polyester, cotton, blended fabric, TPU,PVC,PC,ABS and has good resilience, elasticity, heat resistance, cold resistance and water resistance.HT02-08 possesses excellent chemical additives resistant, and it can resist 24hour -20℃ to + 70℃ cyclic test.
Operate machine :iron,high-frequency machine,heat roller machine,flat-bed heat press machine or other hot composite machine.
Technical Parameters:
| Colour | Milky Translucent | Release Layer | Glassine Release Paper |
| Proportion | 1.20±0.02g/cm³ | Thickness | 0.01mm-0.3mm |
| Opening time | 5min | Width | 5mm-1600mm |
| Melt Flow Index | 37±10g/10mins (ASTM D1238-04) | Conventional Thickness | 0.05mm,0.08mm,0.10mm 0.12mm, 0.15mm |
| Hardness | 97±3 (Shore A) | Conventional Width | 1400mm |
| Melting Range | 55-75℃ | Conventional Length | 100 yards |
| Activation Temperature | 77-116℃ | Finished Product | 1400mm*100yards/roll |
Hot Melt Adhesive Film Technical Parameters:
| First Lamination | Second Implanting | ||
| Mechanical Mold Temperature | 90℃-110℃ | Mechanical Mold Temperature | 90℃-130℃ |
| Time | 5-15 seconds | Time | 8-25 seconds |
| Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |
Hot Melt Adhesive Film Application:

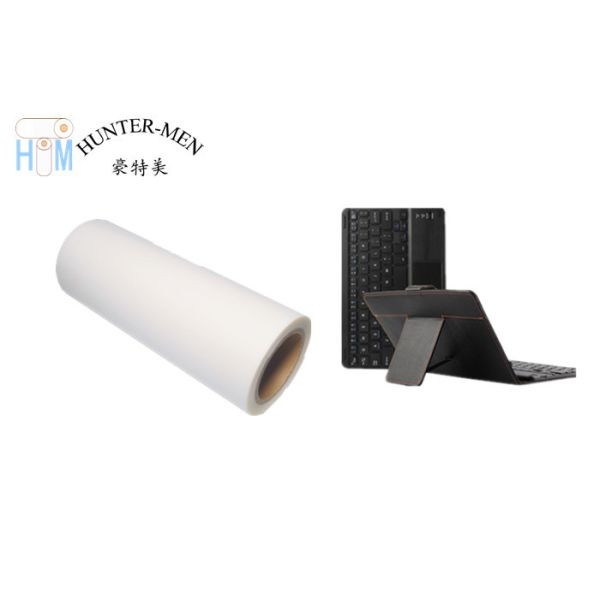

It widely applied in TPU and leather lamination,moblie phone case, metals,automobile trims,Ic card sealing, PVC lamination etc
How to Use:
Hot melt adhesive film is usually processed by iron,high-frequency
machine,heat roller machine,flat-bed heat press machine or other
hot pressure machine.The processing structure have two layers of
material, three layers of materials or more layers.
Two Layers :
Three Layers :
Support Customization Production:
We have many years experience for control the products quality, and we can customize to product as your opinions.According to customer details demands for new product development, we can offer technical support and production as customer opines.Please contact with us for any about the product questions.
1. According to the Film Performance:
Melt Point: 70-110℃,
Melt Index:10-2000g/10min( Condition:190℃/2.16KG ASTMD1238-04),
Thickness:0.05mm-1mm,
Width: 5mm-1500mm,
Length:1M-1000M/roll,
Colors:All of colors
2.According to the base material:
A. Single/Double side silicone glassine release paper,
B. Single/Double side silicone kraft release paper,
C. Single/Double side silicone PE coated paper,
D. Matte / Glossy PP paper,
E. Matte / Glossy Pearlescent paper,
F. Single/Double side silicone PET release film,
G. Without base materials
H. You also can choose the base materials thickness and grammage.
We can tailor hot melt film as your business and demands.
|
