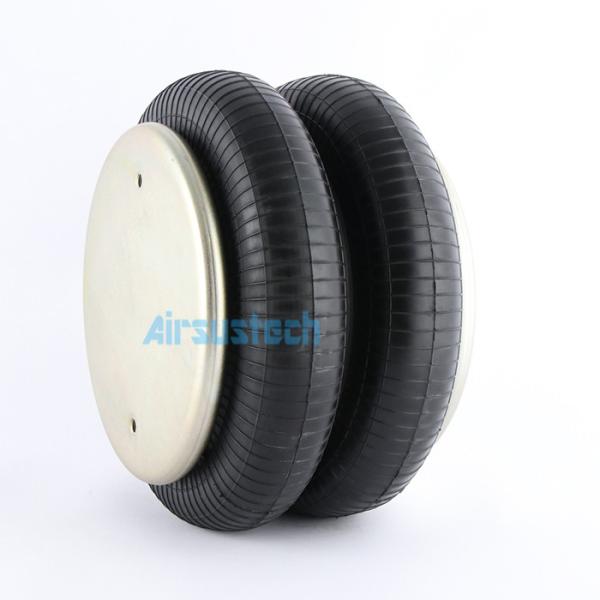

1/4NPTF Air Inlet Goodyear 2B12-425 Shock Absorber Bellow Replacement Double Convoluted Air Rubber Spring

1/4NPTF Air Inlet Goodyear 2B12-425 Shock Absorber Bellow Replacement Double Convoluted Air Rubber Spring

The detailed Specifications

1. Nut/blind nut Top plate screw (nut) teeth: 2 x 3/8-16UNC

2. Bottom cover plate screw (nut) teeth: 2 x 3/8-16UNC

3. Top/Bottom plate screw center distance : 157 mm
4. Air hole/air inlet/air fitting air hole/air inlet: 1/4 NPTF

Screw Center Distance Between Gas Hole and Nut : 73mm
5. Top plate diameter (width): 231 mm, bottom cover diameter (width): 231 mm bell-shaped rubber bellows rubber bellows Max. diameter: 325 mm

6. Working Stroke: 81mm to 305 mm

4. Bumper block/bumper block without bumper
5. Belt loop/belt loop/Girdle hoop: with one piece of belt loop/Girdle hoop

Refer Number:

The reated picture

Comparison of different springs

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

AIRSUSTECH is another brand of Guangzhou Guomat Air Spring Co., Ltd.

AIRSUSTECH is focus on industrial air spring.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
