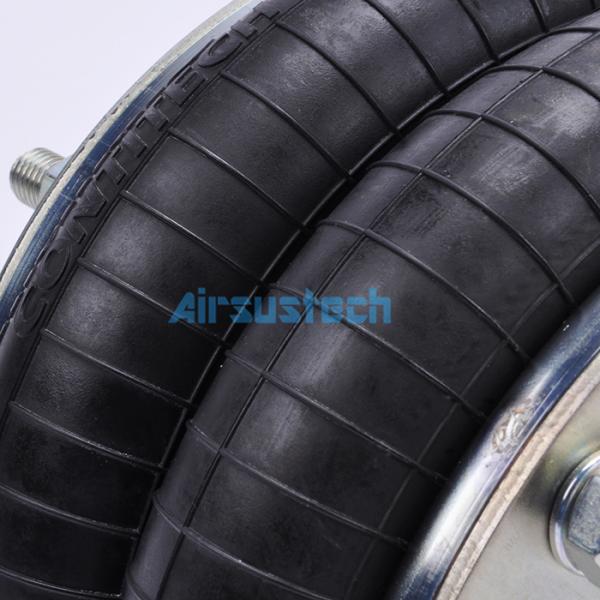

Air Actuator Contitech FD 138-18 DS Double Convoluted Air Spring With M10 Blind Nut

Double Convoluted Air Actuator Contitech FD 138-18 DS Air Spring With M10 Blind Nut

OEM NO.

AIRSUSTECH Part Number:2B8X2

Specifications and Detailed Technical Parameters:FD 138-18 DS

• Nut/blind nut

Top plate screw (nut) teeth: 4×M10
The screw center distance of the top cover plate: 155.5mm
Screw (nut) teeth of the bottom cover plate: 4×M10
The screw center distance of the bottom cover plate: 155.5 mm

• Air hole/air inlet/air fittings

Air hole/air inlet: G1/2

The screw center distance between the air hole and the nut: 72.75mm

• Cover plate

Top plate diameter: 184mm

Diameter of the bottom cover: 184mm

• Rubber Bellows

Maximum diameter of rubber bellows: 230 mm
Natural diameter of rubber bellows: 205 mm
Working stroke: minimum 75 mm to maximum 250 mm
Maximum height: 250 mm
Minimum height: 75 mm
Stroke height: 175 mm

Required Installation Space: 245mm

• Bumper block/bumper block

Without bumper block

• Belt loop/Belt loop/Girdle hoop

One piece of belt loop/girdle hoop

Min. pressure 0 bar
Return force to min height ≤ 300 N
Overall weight 3.5 kg
