Triple Convolutions Industrial Air Spring Contitech FT 22-6 DI CR Rubber Air Actuator

Triple Convolutions Industrial Air Spring Contitech FT 22-6 DI CR Rubber Air Actuator

OEM NO.

Contitech FT 22-6 DI CR

Contitech FT 22 6 DI CR

Specifications and Detailed Technical Parameters

• Nut/blind nut

Top plate screw (nut) teeth: 2×M6
Screw (nut) teeth of the bottom cover plate: 2×M6

• Air hole/air inlet/air fittings

Air hole/air inlet: G1/4

• Rubber Bellows

Top plate diameter (width): 78mm

Diameter (width) of the bottom cover plate: 78mm

Material top and bottom plate: aluminum

Bell rubber bellows
Maximum diameter at 7 bar: 80mm

Rubber bellows stroke: 80mm-140m

Required installation space: 95mm

• Bumper block/bumper block

Without bumper block

• Belt loop/Belt loop/Girdle hoop

With belt loop: two pieces of belt loop/Girdle Hoop

Min. pressure: 0 bar

Return force to min.height: ≤100N

Overall weight with clamped plates: 0.53kg

Pneumatic application-static characteristic values

Force F[KN]

Other types Contitech DI Air Spring( Air Bellows) We could offer

Application range of air spring

Air springs can guarantee the stability of mechanical equipment; improve the self-vibration of mechanical equipment during operation; prolong the service life of mechanical equipment; reduce the wear and tear of mechanical equipment due to vibration. To keep the system stable; to make the system not resonate when disturbed; to stabilize soon after being disturbed. Therefore, it is more and more widely used in the following industrial field:
Power plant (rotary) equipment, such as pipelines, transformers, diesel generators, steam-driven feed pumps, steam turbine generators, condensers, control rooms, fans, coal mills, crushers, water pumps;
Precision instruments, such as three-coordinates, roll grinders, control cabinets, marine precision instruments;
Forging hammer equipment, such as forging hammers, presses, high-speed punches;
Test bench equipment, such as engine test bench, motor vehicle test bench

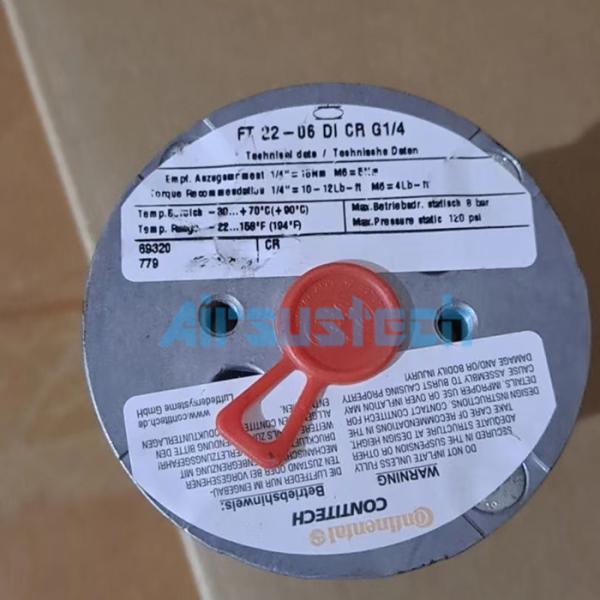

The related picture

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

AIRSUSTECH is another brand of Guangzhou Guomat Air Spring Co., Ltd.

AIRSUSTECH is focus on industrial air spring.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
