Contitech FD 200-19 P04 895 N Convoluted Air Spring Assembly Rubber Steel Material

Contitech FD 200-19 P04 895 N Replacement Double Convoluted Rubber Air Spring Assembly

Refer No.

Contitech FD 200-19 P04 895 N

Contitech FD 200 19 P04 895 N

Specifications and Detailed Technical Parameters:AIRSUSTECH 2B5235

• Nut/blind nut

Top plate screw (nut) teeth: 2×M10×1.5

The screw center distance on the top plate: 85mm

Screw (nut) teeth of the bottom cover plate: 2×M10×1.5,M14×2.0

• Air hole/air inlet/air fittings

Air hole/air inlet: ZG1/2

The distance between the screw and the air inlet: middle in the screw center

• Cover plate

Top plate diameter: 160 mm

Diameter of the bottom cover: 160 mm

• Bell rubber bellows

Rubber Bellow Natural Diameter: 224mm

Max Diameter: 251mm

Height: 210mm

• Bumper block/bumper block

With bumper block

• Belt loop/Belt loop

With belt loop: one piece of belt loop

Min. pressure: 0 bar

Return force to min.height: ≤200N

Overall weight with clamped plates: 3.0kg

Vibration isolation - dynamic characteristic values

Design Height H: recommended 210mm, minimum 195mm

Pneumatic application-static characteristic values

Force F[KN]

Other Types Of Contitech Convoluted Air Spring Replacement We Could Offer:

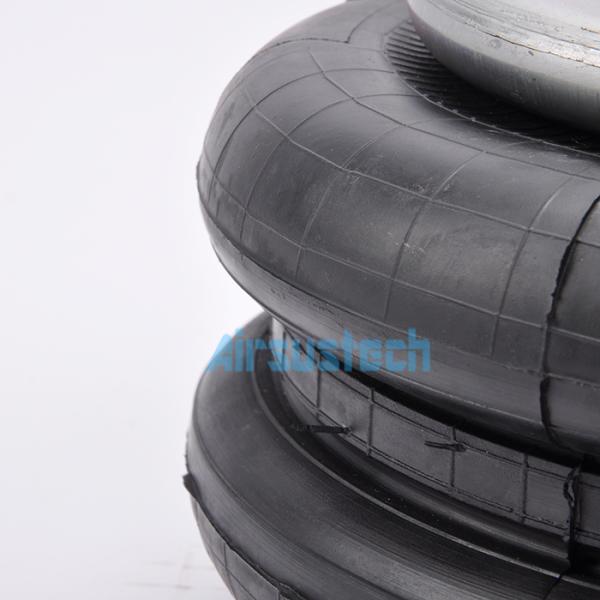

The related picture of 2B5235
