Firestone W01-358-8027 38 W01-358-8029 Air Spring Actuator 3 Convoluted

Firestone W01-358-8027/38/W01-358-8029 OEM Air Spring Actuator 3 Convoluted

Refer NO.

Firestone W01-358-8027

Firestone W01 358 8027

Firestone W013588027

Firestone Style 38

Firestone W01-358-8029

Firestone W013588029

Firestone W01 358 8029

Contitech FT 330-29 466

Contitech FT 330 29 466

Contitech FT330-29 466

Contitech FT330 29 466

Contitech FT33029 466

Contitech FT 33029466

Goodyear 578933100

Goodyear 3B12-310

Goodyear 3B12 310

Goodyear 3B12310

Triangle 4466

Triangle 6334

Arvin Meritor 200117

Suspensions 200117

Silent Drive

Histeer

Specifications and Detailed Technical Parameters: 3B8027

• Nut/blind nut

Top plate screw (nut) teeth: 3/4-16UNC; 1/2-13UNC

Bottom cover plate screw (nut) teeth: 2×3/8-16UNC

The screw center distance of the Top cover plate: 157mm

The screw center distance of the bottom cover plate: 157mm

• Air hole/air inlet/air fittings

Air hole/air inlet: 1/4NPT

• Rubber Bellows

Top plate diameter (width): 231 mm

Diameter (width) of the bottom cover plate: 231 mm

Rubber Bellows MAX Diameter: 330mm

The Working Stroke: 117mm to 460mm

• Bumper block/bumper block

With bumper block

• Belt loop/Belt loop/Girdle Hoop

With belt loop: 2 pieces of belt loop/girdle hoop

Min. pressure: 0 bar

Return force to min.height: ≤400N

Overall weight with clamped plates: 5.9kg

Pneumatic application-static characteristic values

Force F[KN]

Other types of 3 convolutions firestone air spring replacement we could offer

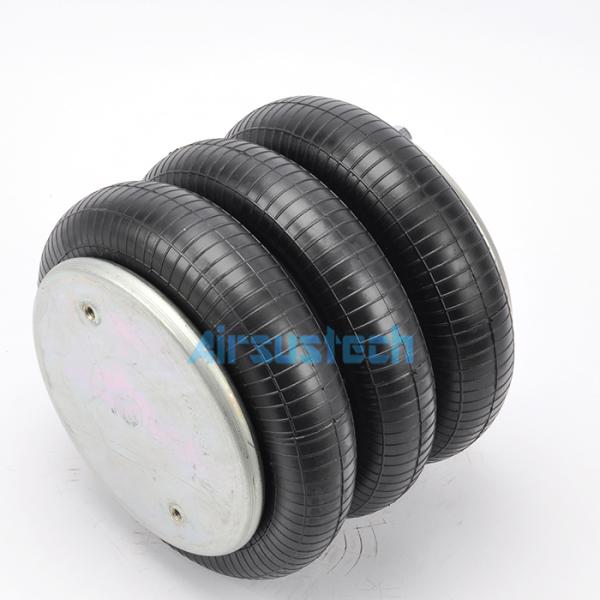

The related picture of 3B8027
