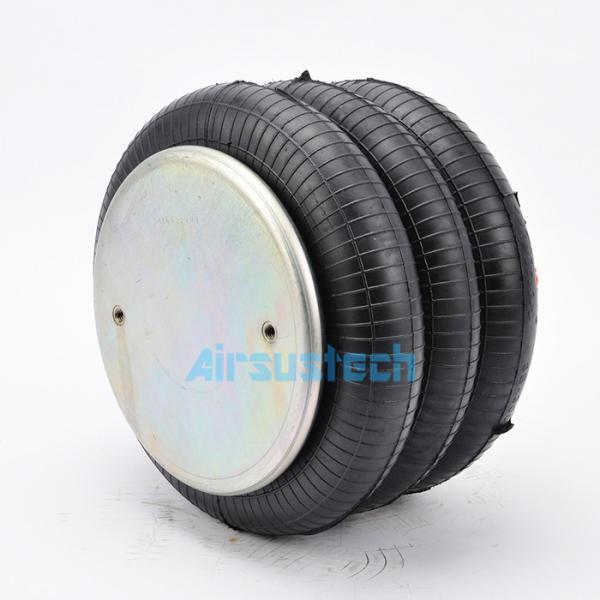

3B12-328 Goodyear Air Spring Triple Convoluted Rubber Shocks

Triple Convoluted Rubber Shocks 3B12-328 Goodyear Air Spring

OEM NO.

Goodyear 3B12-328

Goodyear 3B12 328

Goodyear 3B12328

Contitech FT 330-29 546

Contitech FT 330 29 546

Contitech FT330-29 546

Contitech FT330 29 546

Contitech FT33029546

Contitech FT64572

Firestone W01-358-7994

Firestone W01 358 7994

Firestone W013587994

Triangle 4546

Triangle 6364

Watson&chalin AS-0019-F

Watson&chalin AS 0019 F

Watson&chalin AS0019F

Euolid/meritor After market E-FS7994

Euolid/meritor After market E FS7994

Euolid/meritor After market EFS7994

Specifications and Detailed Technical Parameters: 3B7994

• Nut/blind nut

Top plate screw (nut) teeth: 3/8-16UNC,3/4-16UNC

Bottom cover plate screw (nut) teeth: 2×3/8-16UNC

The screw center distance of the Top cover plate: 140 mm

The screw center distance of the bottom cover plate: 157.5 mm

• Air hole/air inlet/air fittings

Air hole/air inlet: 1/4NPTF

The air inlet/air hole/ air fittings is combined with the screw teeth

• Rubber Bellows

Top plate diameter (width): 231 mm

Diameter (width) of the bottom cover plate: 231 mm

Rubber bellows stroke: 130mm-460mm

• Bumper block/bumper block

With bumper block

• Belt loop/Belt loop/Girdle hoop

With belt loop: Two pieces of belt loop/girdle hoop

Min. pressure: 0 bar

Return force to min.height: ≤400N

Overall weight with clamped plates: 5.9kg

Pneumatic application-static characteristic values

Force F[KN]

Other Goodyear assembly we could offer

Air Bag 3B7994 can replace Goodyear 3B12-328/3B12 328 air spring. We also have the following goodyear types.

The related picture of 3B7994
