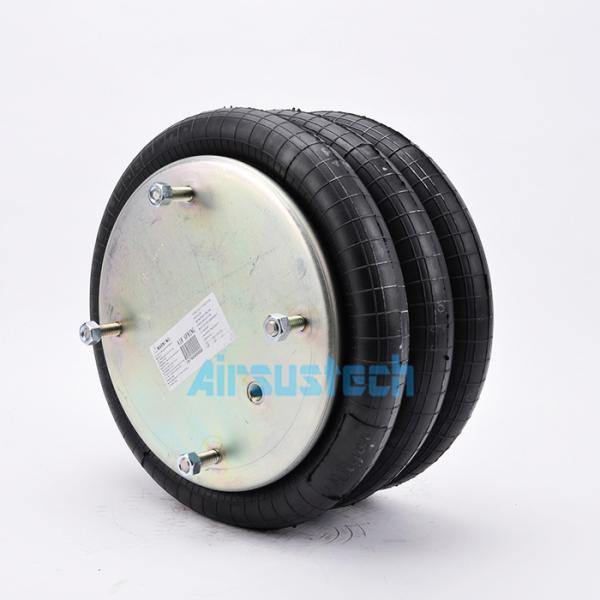

Rubber Triple Convoluted CONTITECH FT 530-32 333 Air Spring Assembly Aircraft Airbag

Rubber Triple Convoluted CONTITECH FT 530-32 333 Air Spring Assembly Aircraft Airbag

Refer NO.

CONTITECH FT 530-32 333

CONTITECH FT 530 32 333

CONTITECH FT 530-32 325

CONTITECH FT 530 32 325

FIRESTONE W01-358-7800

FIRESTONE W01 358 7800

FIRESTONE W013587800

FIRESTONE W01-358-7818

FIRESTONE W01 358 7818

FIRESTONE W013587818

FIRESTONE FLEX 313D

GOODYEAR 3B14-360

GOODYEAR 3B14 360

GOODYEAR 3B14-359

GOODYEAR 3B14 359

GOODYEAR FLEX 578-93-3-350

GOODYEAR FLEX 578 93 3 350

GOODYEAR FLEX 578933350

AIRKRAFT 115070

AIRKRAFT 116052

Specifications and Detailed Technical Parameters: 3B7800

Nut/blind nut

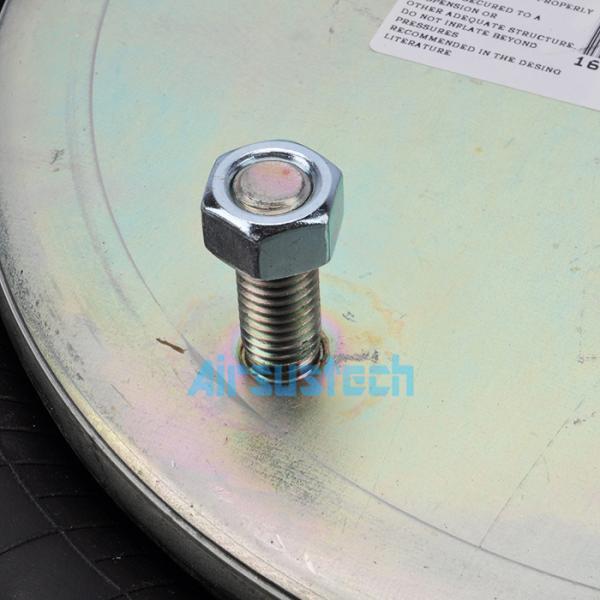

Top plate screw (nut) teeth: 4×1/2-13UNC

Bottom cover plate screw (nut) teeth: 4×1/2-13UNC

Screw Center Distance: 158.8mm

Air hole/air inlet/air fittings

Air hole/air inlet: 1/4NPT

Distance from air hole to screw: middle

Rubber Bellows

Top plate diameter (width): 289mm

Diameter (width) of the bottom cover plate: 289mm

Rubber Bellows MAX Diameter: 356mm

Design Height: 9-13 inches / 229mm-330mm

Maximum Height : 460 mm

Bumper block/bumper block

Without bumper block

Belt loop/Belt loop/Girdle Hoop

With belt loop: Two pieces of belt loop/girdle hoop

Other types

The application of air springs in aircraft

Under certain internal pressure and height conditions, the rubber air spring assembly passes the outward thrust of the upper and lower base end faces, that is, limits the outward extension tension of the rubber air spring. A distance set between the upper and lower base end faces of the rubber air spring assembly. This distance is the origin of the deformation of the rubber air spring, and the rubber air spring vibrates up and down at the origin when it works.

The use of air spring lifting computer control technology, and air spring automatic inflation and deflation technology can realize the three-point synchronous lifting and lowering of the aircraft in the support and maintain a horizontal attitude in the suspension support, which greatly improves the aircraft. The safety, efficiency and performance indicators of the support have reached international standards.
