| Brand Name: | LIRI TENT |
| Model Number: | TH 40m / 330 |
| Certification: | ISO9001:2008, SGS, TUV, CFM, IFAI, etc. |
| Place of Origin: | CHINA( Mainland), Guangdong |
| MOQ: | 1 set |
| Price: | negotiable |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 100,000sqm/month |
| Delivery Time: | within 20 days |
| Packaging Details: | 1 . membrane film. 2. Carton . 3. PVC carry bag . |
| Frame material: | GB/T 6061-T6 standard, Hard Pressed Extruded Aluminum Alloy |
| Usage: | Party, Advertising, event, exhibitions, Outdoor Display |
| Warranty: | 5 years,Aluminum Frame=8 years,PVC >8years,Frame >20years,PVC=5 years |
| Feature: | UV-resistant,Water proof and fire resistance,Clear Span Inside 100% Space Utilization |
| Temperature capacity: | -40 -- +70,-40 --- +70 |
| Wind resistance: | 100 mph(44 meters per second),80km-100km/h,100km/h |

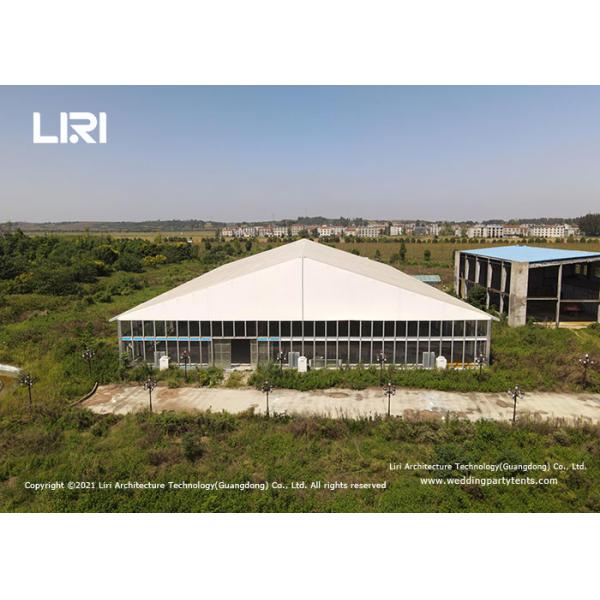

2800square meter aluminium 40mx70m white Luxury Wedding Tent
2800square meter aluminium 40mx70m white Luxury Wedding Tent span widths of the Tent Hall-TH series are available in 30m, 40m with mainframe profile 300x120x5mm. The Tent Hall structure is a modular system, and the length can be increased or decreased by 5m bay. There are no center poles inside the tent, so tent space utilization is up to 100%. Also, Tent Hall-TH series’ stability, fire resistance, and wind resistance all meet with international standards.
1.Specification for 40mx70m white Luxury Wedding Tent
Frame struss: hard pressed extruded aluminium 6061/T6(15HW) which can last more
than 20 years.
Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof,
flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear
resistant, self-cleaning ability, etc.
Connector: strong hot-dip galvanized steel
Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
Wind load: max. 100km/h (can be reinforced)
Snow load: 75kg/sqm (snow can't stay if use big degree roof pitch design)
Easy to be assembled and dismantled, movable.
No pole inside, 100% available interior space.
| Span Whidth | Eave Height | Ridge Height | Bay Distance | Main Profile |
|---|---|---|---|---|
| 30m | 4m | 8.9m | 5m | 300x120x5mm (4 - channel) |
| 40m | 4m | 10.5m | 5m | 300x120x5mm (4 - channel) |
2. Optional Accessories of 40mx70m white Luxury Wedding Tent
Covers: colourful cover, transparent cover, inflatable roof cover
Windows: dome or square clear PVC windows, mesh window, glass window for
glass wall
Wooden Flooring System: VIP cassette flooring, simple cassette flooring
Doors: double-wing glass door, single-wing glass door, glass fire door,
aluminium door, rolling shutter(automatic or manual)
Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel
wall, steel plate wall
Fixing Methods: ground anchors, weight plate, expandable bolts
Rain Gutters:inner roof beam rain gutter or rain gutter between two similar
tents
Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.
Liri Tent Series
Tent Roof Type | Span Width | Bay Distance | Eave Height |
| Regular | 3m~60m | 3m/5m | 2.6m/3m/3.3m/3.88m/4.2m/5m/5.2m |
| Dome | 3m~40m | 3m/5m | 2.6m/3m/3.23m/3.88m/3.92m |
| High Peak | 3m~10m | 3m/4m/5m/6m/8m/10m | 2.5m/2.6m |
| Curve | 15m~40m | 5m | 3.87m/3.89m |
| Polygon | 10m~60m | 5m | 4m |
| Double Decker | 10m~30m | 5m | 5m |
Please note this is a general description.For exact tent types and
sizes please feel free to contact us.
|
