| Categories | Ring Mesh Curtain |
|---|---|
| Brand Name: | XIANGYI |
| Model Number: | Ring Mesh Drapes |
| Certification: | ISO9001 |
| Place of Origin: | CHINA |
| MOQ: | 1m2 |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sqm per month |
| Delivery Time: | 20days after confirm the order |
| Packaging Details: | 1.in roll,water proof paper in side and outside with woven bag, 2.wooden case 3.pallet 4.The package able to according to customer's requirment |

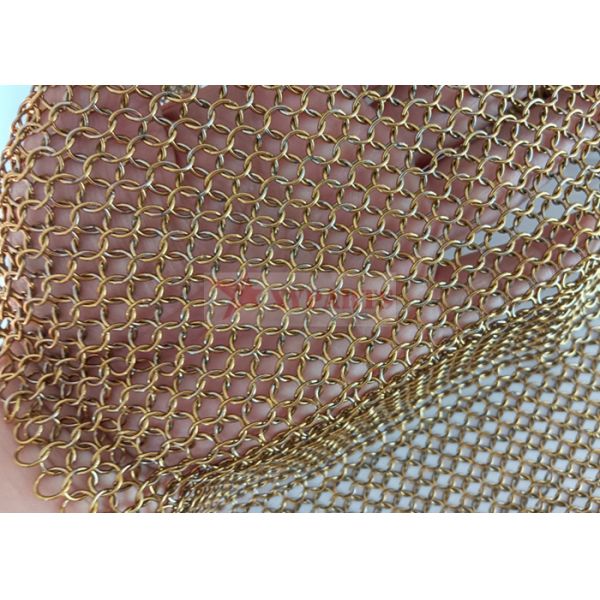

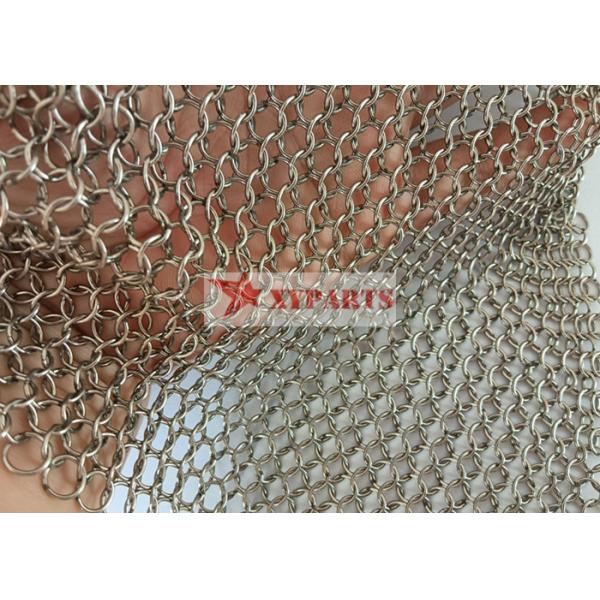

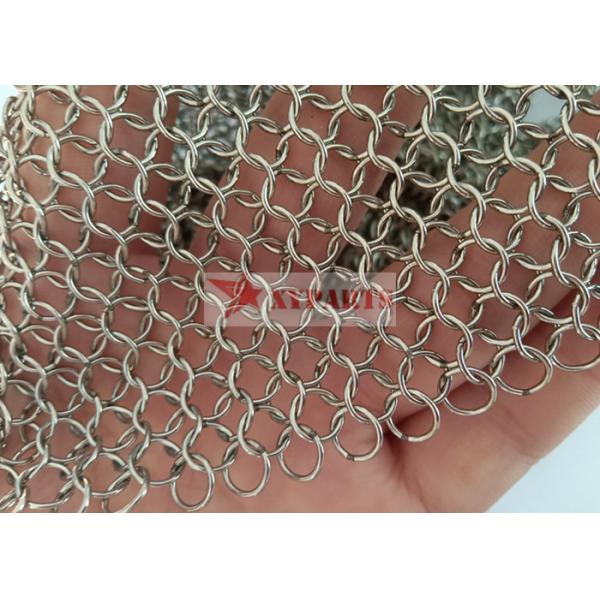

| Product Name: | Chain Mail Ring Mesh Drapes |
| Material: | stainless steel 316 |
| Surface treatment: | brass,polish |
| Ring type: | welded type |
| wire diameter: | 0.7mm |
| ring mesh: | 7mm |
| Shape: | accroding your drawings |
| Service: | door to door service |
Type - 1 : 316 material , 0.53mm wire , 3.81mm diameter
Type - 2 : 316 material , 0.8mm wire , 7mm diameter
Type - 3 : 316 material , 1.2mm wire , 10mm diameter
Color: is brass or metallic color
Shape : can made the ring mesh shape as your request, you only advice us the detail date to us.
Stainless steel
|  |
 | Bronze
|
Contact us for custom colors and size !
Welded Type :
*****************************************************
| Term | Type | Material | Wire diameter | Outer diameter | Weight/m2 |
| XY-SS-053 | Weld | stainless steel | 0.53mm | 3.81mm | 3.2kgs |
| XY-SS-080 | Weld | stainless steel | 0.80mm | 7.00mm | 2.8kgs |
| XY-SS-150 | Weld | stainless steel | 1.50mm | 15.00mm | 4.8kgs |
| XY-CS-150 | Weld | Copper/brass | 1.50mm | 15.00mm | 5.5kgs |
| XY-SS-200 | Weld | stainless steel | 2.0mm | 20.00mm | 6.8kgs |
| XY-CS-200 | Weld | Copper/brass | 2.0mm | 20.00mm | 7.8kgs |
Non-Welded Type :
******************************************************
| Term | Type | Material | Wire diameter | Outer diameter | Weight/m2 |
| XY-SS-100 | Non-welding | Stainless steel | 1.0mm | 8.00mm | 4.7kgs |
| XY-MS-100 | Non-welding | Mild steel | 1.0mm | 8.00mm | 4.6kgs |
| XY-SS-120 | Non-welding | Stainless steel | 1.2mm | 10mm | 4.8kgs |
| XY-CS-120 | Non-welding | Mild steel | 1.2mm | 10mm | 5.5kgs |
| XY-SS-150 | Non-welding | Stainless steel | 1.5mm | 15mm | 4.8kgs |
| XY-CO-150 | Non-welding | Mild steel | 1.5mm | 15mm | 5.5kgs |
| XY-SS-200 | Non-welding | Stainless steel | 2.0mm | 20mm | 6.8kgs |
| XY-CO-200 | Non-welding | Mild steel | 2.0mm | 20mm | 7.8kgs |
Permanent: Despite initial cost, Metal Mesh Drapes, unique maintenance and longevity properties prove
it more economical over the life of the installation.
Maintenance Free: Metal Mesh Drapes tend to shed dust. An occasional brushing or dusting will suffice.
Stains wash off with mild soap and water.
Fireproof: Its melting point is that of the base metal.
Air Conductive: While effectively concealing heat and air conditioning outlet, Metal Mesh Drapes permit
the relatively free circulation of warm and cool air currents.
Stable: Metal Mesh Drapes neither shrinks nor stretches in use.
Malleable: Metal Mesh Drapes can be hung in strips, panels or joined to create a metal fabric with
superb draping characteristics.
Mildewproof: It is unaffected by dampness and humidity.
Sunrot-proof: It is impervious to even intense tropical sunlight.
Light Diffusing: Metal Mesh Drapes have exceptional light filtration properties.
Space divider.
• Wall decoration. • Ceiling decoration. • Window curtain.
• Handrail balustrade. • Elevator cab mesh Facade cladding.
• Glass laminated wire. • Sunshade screen. • Security door.
• elevator cabins screen. • Floor covering fabrics
Wire mesh facades.
• Shade screens. • Architecture ceilings. • Metal draperies for
walls.
• Partition and isolation screens. • Staircases isolation screen.
Function : room dividers ,ceiling decoration ,wall decoration ,door curtain, window screen ,rolling shutters ,
shower curtain ,fireplace screen ,light portioning , balustrades , shop exhibition stands ,building façade ,
column cladding ,craft projects ,sun protection , ect
Application place :balcony ,corridor ,elevator,hotel,restaurant ,office ,building ,grad ballroom,museum ,
concert halls ,dining hall ,exhibition halls ,shopping mall ,airport access,theater ,ect
 | plastic foam and carton box for inner packing Fumigated wooden cases for outer packing also can be as the request Sample:by DHL/EMS/UPS/TNT/EXPRESS ect Delivery time :20 days after confirm the order Large order :we recommand you by SEA .or by AIR if in an emergency |
1.pattern design support according to the application
2.frame design support according to the installation
3.surface treatment support ,inclode to the installation
4.supply install accessories ,include PVDF,PVD Spraying
5.Material:stainless steel ,copper ,bronze ,brass ,aluminum ,aluminum alloy ,ect
6.Weave type :Plain weave,twill weave ,dutch weave ,plain dutch weave ,twill weave ,uinque woven method,ect
7.ISO9001-2008 Quality certification management system
|
