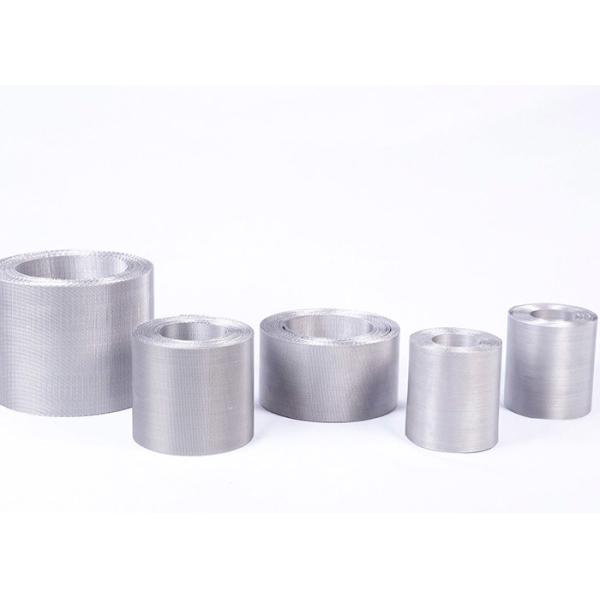

Food 304 Dutch 100*760 Stainless Steel Woven Wire Mesh For Filtering

Food 304 Stainless Steel Dutch Wire Mesh 100*760 Mesh For Filtering

Description

Stainless steel Dutch woven mesh material is divided 304 , 304L, 316 and 316L. Stainless steel has good wear resistance, heat resistance, acid resistance and corrosion resistance. The filter is also available in brass, mild steel, nickel, steel or other metallic materials and is also available upon request.

Feature

1. Trouble-free processing performance.

2. Easy to clean and has excellent durability.

3. In addition to excellent mechanical strength, it has higher speed stability than any other material.

4. Has extremely high physical and chemical resistance.

Material	304 stainless steel wire mesh
Weave	Plain weave
Mesh count	20270mesh-5003500 mesh
Thread diameter	0.250.2-0.0250.015mm
Opening size	3-119 micron
Color	silver
Brand name	R&K

Specification

Plain weave Dutch mesh
Number	Mesh(warpxweft)	Wire diameter (warpxweft)	Aperture (um)	Weight (kg/m2)
32#	8 x 62	0.63mm x 0.45mm	300	5.42
40#	10 x 79	0.50mm x 0.355mm	250	3.16
48#	12 x 64	0.58mm x 0.40mm	280	2.9
55#	14 x 88	0.40mm x 0.30mm	180	2.54
76#	19 x 140	0.315mm x 0.20mm	140	1.88
80#	20 x 300	0.35mm x 0.20mm	-	3.6
95#	24 x 110	0.355mm x 0.25mm	120	2.45
100#	25 x 140	0.28mm x 0.20mm	100	1.95
120#	30 x 150	0.25mm x 0.18mm	80	1.68
140#	35 x 175	0.224mm x 0.16mm	71	1.52
160#	40 x 200	0.20mm x 0.14mm	60	1.40
180#	45 x 250	0.16mm x 0.112mm	56	1.09
200#	50 x 250	0.14mm x 0.11mm	53	1.04
220#	55.5 x 280	0.14mm x 0.10mm	50	0.92
240#	65 x 330	0.11mm x 0.08mm	36	0.71
280#(1)	70 x 350	0.11mm x 0.08mm	35	0.72
280#(2)	70 x 385	0.11mm x 0.07mm	32	0.75
300#	78 x 700	0.11mm x 0.08mm	30	1.39
315#(1)	80 x 400	0.10mm x 0.065mm	40	0.62
315#(2)	80 x 600	0.10mm x 0.06mm	-	0.74
315#(3)	80 x 800	0.15mm x 0.04mm	-	0.77
320#	81 x 780	0.10mm x 0.07mm	30	1.22
354#	90 x 550	0.12mm x 0.05	-	0.667
Width:1m-1.6m

Product Tags:


*From:	Your email address is incorrect!
*To:	Hebei Reking Wire Mesh Co.,Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Stainless Steel Woven Wire Mesh
Brand Name:	R&K
Model Number:	Dutch-10
Certification:	ISO
Place of Origin:	Hebei,China
MOQ:	1 square meter
Price:	Negotiate
Payment Terms:	L/C, T/T, Western Union，PayPal
Supply Ability:	1000 squaremeter per week
Delivery Time:	5-8 work days
Packaging Details:	Inside with paper tube,Then waterproof paper covered,Finally in a wooden case or pallet
Product name:	Food 304 Stainless Steel Dutch Wire Mesh 100*760 Mesh For Filtering
Type:	Weave wire mesh
Hole shape:	Square shape
Application:	Screen
Technique:	Woven
Feature:	Acid resistant
Material:	Stainless steel woven mesh
Key word:	stainless steel Dutch mesh
