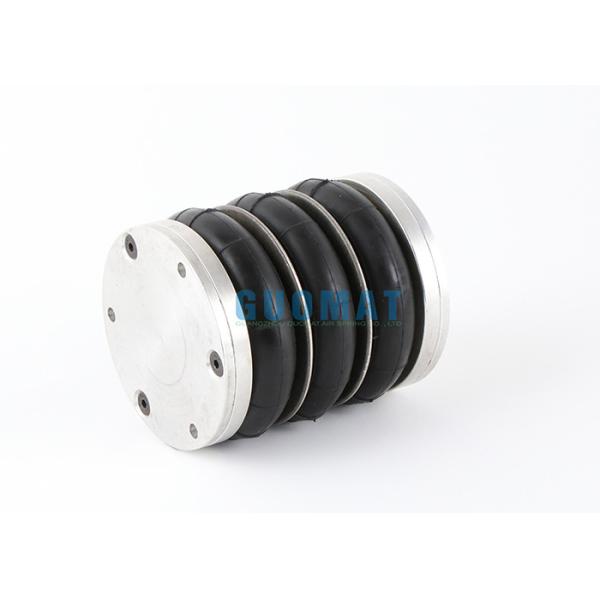

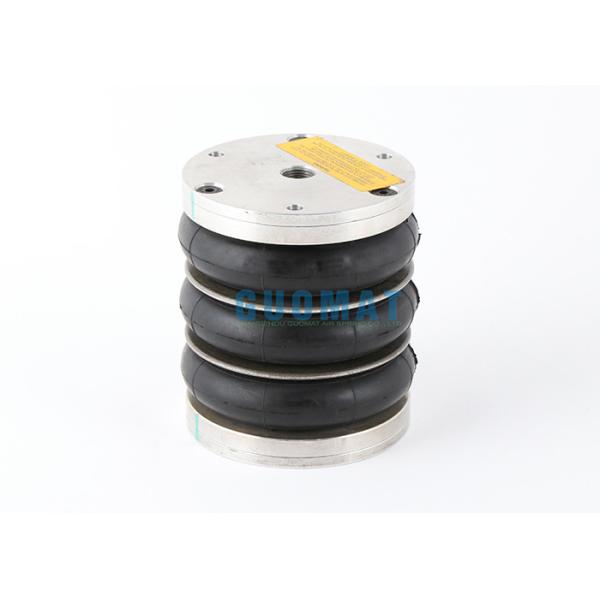

Triple Convoluted Industrial Air Bags Dunlop 4 1/2x3 Firestone Air Spring W01-R58-4035

Triple Convoluted Industrial Air Bags Dunlop 4 1/2x3 Firestone Air Spring W01-R58-4035

Product Description

The Cross Reference Number of 4 1/2x3

Firestone Air Bellow :W01-R58-4035 , W01R584035 , W01 R58 4035

Dunlop Air Bellow : SP2895 , SP 2895

Dimensions(Pouces) : 41/2 X2 / 41/2x2 / 41/2'' x2 / 4.5x2 / 4.5'' x2

FIRESTONE Number : W01-R58-4035

DUNLOP Number : SP2895

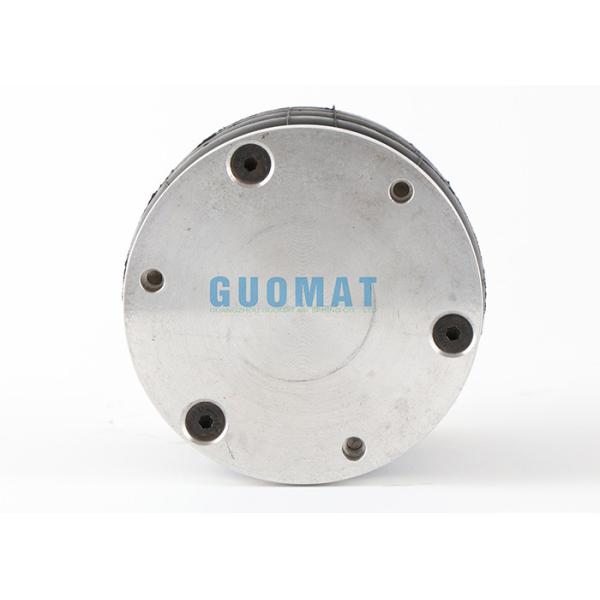

Top Bead Plate

Top Cover Plate Diameter

110mm

Gas Hole

G3/8

Screw(Nut)

M6x12

Screw(Nut) Number

6 Pieces

Screw Center Distance of Top Cover Plate

93mm

Bottom Bead Plate

Bottom Cover Plate Diameter

110mm

Screw(Nut)

M6x12

Screw(Nut) Number

6 Pieces

Screw Center Distance of Top Cover Plate

93mm

Rubber Bellow

Rubber Bellows MAX Diameter

125mm

The Working Stroke

MAX 200 mm to MIN 100 mm

Maximum Height

200mm

Minimum Height

100mm

Compression Height

100mm

What equipment are industrial air springs used for?
Air springs are widely used in industrial machinery for vibration isolation of machinery and equipment, so what equipment are they used for? Below we give an example.

General industrial air springs are used in the following equipment, such as presses, air compressors, centrifuges, vibration conveyors, control hammers, foundry machinery and textile machinery, optical and laser machines, integrated circuits, ultra-precision machine tools and other precision equipment and precision testing equipment .

Air springs can be used in machinery and equipment to cushion and dampen, control movement and pressurize. Compared with other springs with the same function, the air spring has a simple structure, does not require complicated calculations, does not have the problem of seal leakage, is simple to maintain and has a long service life. In the vibrating screen equipment, the material box is operated by a vibrator to make the material evenly mixed, and the vibration will cause fatigue or even damage to the supporting parts of the material box, so a vibration-isolating air spring must be installed. The use of air springs can also provide greater flexibility. Adjusting the amount of air charged in the spring can accommodate different workloads and height requirements without affecting the effect of vibration isolation.
