| Categories | Magnesium Alloy Plate |
|---|---|
| Brand Name: | Hilbo |
| Model Number: | AZ31 AZ80 Az91 We43 We54 We94 Zk60 Am60 |
| Certification: | ISO9001,CE,SGS |
| Place of Origin: | China |
| MOQ: | 100KG |
| Price: | USD10~30/KGS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100mt/month |
| Delivery Time: | 5-10days |
| Packaging Details: | In carton, on pallet |
| Usage: | Steelmaking Additive |
| Processing: | Hot Roll / Extruded |
| Material: | Magnesium Alloy |
| Thickness: | 0.5-300mm or Customized |
| Dimensions: | Customer's Demands |
| Chemical Composition: | 95% |
| Company Info. |
| Dongguan Hilbo Magnesium Alloy Material Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
0.5mm - 400mm Good Resistance To Organic And Alkaline Corrosion Magnesium Alloy Plate Sheet
Magnesium alloy can be used in all kinds of field.
1. Magnesium alloy thick plate are used to make satellites, lunar
landing aircraft bases, exterior panel of missile and rocket and
the empennage of missile and plane.
2. Magnesium alloy middle board are used to make the auxiliary tank
,side board and other structure of battleplane.
Specification of magnesium alloy: | ||||
Magnesium Alloy Plates/sheet | classify | specification | ||
Brand | AZ31B/ZK60A/AZ91D/AZ61A/AZ40M/AZ41M/AZ80A | |||
Sheet | Thickness:0.3-7.9mm Customized Max.width 600mm | |||
Medium and heavy plate | Thickness:8-15mm Customized Max.width 1500mm | |||
Thick plate | Thickness:15-200mm Customized Max.width 3000mm | |||
Magnesium Alloy Bar/Rod | Brand | AZ31B/ZK60A/AZ91D/AZ61A/AZ40M/AZ41M/AZ80A/Mg99.95 | ||
Extrusion Bar | φ3-φ130*3000(Customized) | |||
Cast round bar billet | φ93-φ600*4500(Customized) | |||
Magnesium alloy profiles | Size | Customized | ||
Model | chemical component(%) | ||||||
| Type | Mg | Al | Zn | Mn | Si | Fe | Cu |
| AX31B | residual | 2.5-3.5 | 0.60-1.4 | 0.20-1.0 | ≤0.08 | ≤0.003 | ≤0.001 |
| AZ61A | 5.8-7.2 | 0.40-1.5 | 0.15-0.50 | ≤0.10 | ≤0.005 | ≤0.005 | |
| AZ80A | 7.8-9.2 | 0.20-0.80 | 0.12-0.50 | ≤0.10 | ≤0.005 | ≤0.005 | |
| AZ91D | 8.5-9.5 | 0.45-0.90 | 0.17-0.40 | ≤0.08 | ≤0.004 | ≤0.001 | |

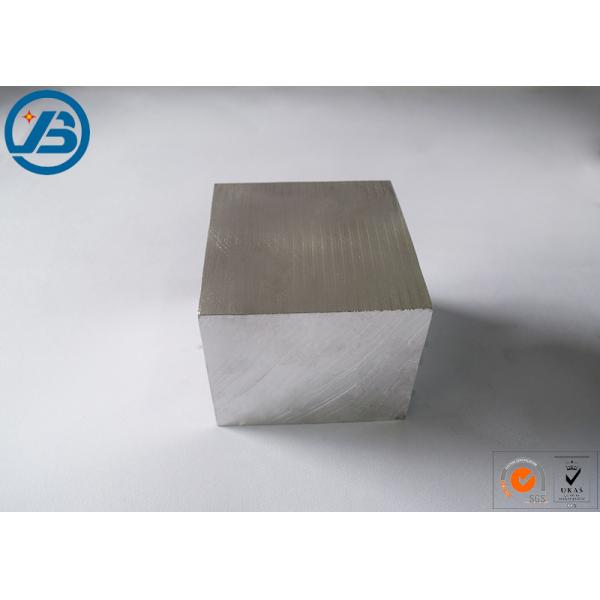

Magnesium Alloy Plate Picture show:
Chemical Composition:
| Model | Mg | Al | Zn | Mn | Ce | Zr | Si | Fe | Ca | Cu | Ni | Be | Other | |
| Single | Total | |||||||||||||
| AZ31B | Bal. | 2.5-3.5 | 0.6-1.4 | 0.2-1.0 | - | - | ≦0.08 | ≦0.003 | ≦0.04 | ≦0.01 | ≦0.001 | - | ≦0.05 | ≦0.30 |
| AZ91D | Bal. | 8.5-9.5 | 0.45-0.90 | 0.17-0.40 | - | - | ≦0.08 | ≦0.004 | - | ≦0.025 | ≦0.001 | 0.0005-0.003 | ≦0.01 | - |
| AZ61 | Bal. | 5.5-7.0 | 0.5-1.5 | 0.15-0.50 | - | - | ≦0.10 | ≦0.05 | - | ≦0.05 | ≦0.005 | ≦0.01 | ≦0.01 | ≦0.30 |
| AZ80 | Bal. | 7.8-9.2 | 0.2-0.8 | 0.12-0.50 | - | - | ≦0.10 | ≦0.005 | - | ≦0.05 | ≦0.005 | - | - | ≦0.30 |
| ZK61M | Bal. | ≦0.05 | 5.0-6.0 | ≦0.10 | - | 0.3-0.9 | ≦0.05 | ≦0.05 | - | ≦0.05 | ≦0.005 | ≦0.01 | ≦0.01 | ≦0.30 |
| ME20M | Bal. | ≦0.20 | ≦0.30 | 1.3-2.2 | 0.15-0.35 | - | ≦0.10 | ≦0.05 | - | ≦0.05 | ≦0.007 | ≦0.01 | ≦0.01 | ≦0.30 |
Advantage of Hilbo company:
Full range of product types, Ensure production capacity
We ave advanced die-casting, extrusion, forging, rolling, casting
processing production line and precision testing equipment. Can
produce a variety of types of magnesium alloy and magnesium alloy
products, and developed a high-strength magnesium alloy extruded
sheet. Through the purification of ordinary magnesium, magnesium
can be raised up to 99.99% of high purity.
Product technology advantages
Engaged in magnesium smelting technology personnel with more than
15 years experience, from the selection of primary materials to
smelting processing has a wealth of experience and mature
management techniques.
We are in magnesium ingots, magnesium alloy extrusion products have
technical research and development capabilities. We are come out in
front in the Magnesium alloy production enterprises
Cost advantage
Magnesium alloy casting production can customized as your
requirement. the technical process is great, extrusion production
required for a variety of bar, no need to purchase from abroad,
extrusion molding products is easy molding, low energy consumption,
saving production costs.
Workshop:
Our services:
1. Small order quantity available
2. Professional engineering team and sales team
3. Payment: T/T & Western Union
4. OEM/ODM Support
5. Free samples provided
6. Competitive price and high quality
|
