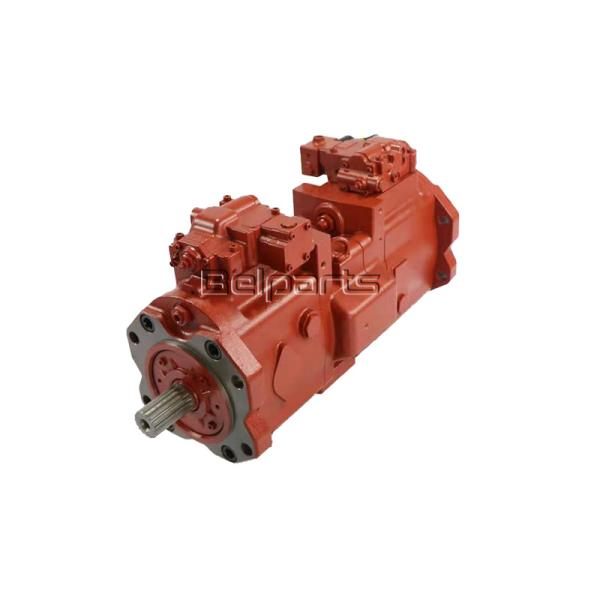

Name: 31qa10010 Hyundai Pump Assy For Crawler Excavator R360lc9 R380lc9a R380lc9dm R380lc9mh R430lc9
Brand: Belparts
Price: 1 USD

Home > Corner Guards >

31qa-10010 Hyundai Pump Assy For Crawler Excavator R360lc9 R380lc9a R380lc9dm R380lc9mh R430lc9

Categories	Hydraulic Pump Excavator Parts
Brand Name:	Belparts
Model Number:	R360lc9 R380lc9a R380lc9dm R380lc9mh R430lc9
Place of Origin:	Guangdong, China
Price:	negotiation
Supply Ability:	1000 Piece/Pieces per Month
Packaging Details:	Packaging Details: 1.According to orders,pack the spare parts one by one by oil paper; 2.Put them into small carton boxes one by one; 3.Put the packed small carton boxes into bigger carton boxes one by one; 4.Put the bigger carton boxes
Product name:	Hydraulic Pump
Model:	R360lc9 R380lc9a R380lc9dm R380lc9mh R430lc9
Weight:	76KG
Brand:	Hitachi
Package:	wooden box
Part number:	31qa-10010

Contact Now

Add to Cart

Company Info.

GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

31qa-10010 Hyundai Pump Assy For Crawler Excavator R360lc9 R380lc9a R380lc9dm R380lc9mh R430lc9

Parts on group MAIN PUMP (-#0632):

Pos.	Part No	Qty	Parts name
*.	31QA-10010	[1]	PUMP ASSY
*-1.	@	[1]	MAIN PUMP UNIT
*.	31QA-10010	[1]	PUMP ASSY
*-1.	@	[1]	MAIN PUMP UNIT
S012.	XJBN-00680	[2]	BLOCK-CYLINDER
111	XJBN-00574	[1]	SHAFT-DRIVE(F)
113	XJBN-00573	[1]	SHAFT-DRIVE(R)
114	XJBN-00572	[1]	COUPLING-SPLINE
123	XJBN-00571	[2]	BEARING-ROLLER
124	XJBN-00570	[2]	BEARING-NEEDLE
127	XJBN-00569	[3]	SPACER-BEARING
130	XJBN-00568	[1]	BOOSTER
NS151.	XJBN-00681	[18]	PISTON
NS152.	XJBN-01385	[18]	SHOE
153	XJBN-00020	[2]	PLATE-SET
156	XJBN-00564	[2]	BUSHING-SPHERICAL
157	XJBN-00541	[18]	SPRING-CYLINDER
211	XJBN-00023	[2]	PLATE-SHOE
S212.	XJBN-00012	[2]	PLATE-SWASH
S214.	XJBN-00013	[2]	BUSHING-TILTING
251	XJBN-00560	[2]	SUPPORT-S.P.
261	XJBN-00025	[1]	COVER(FR)-SEAL
271	XJBN-01386	[2]	CASING-PUMP
311	XJBN-00559	[1]	COVER-VALVE(F)
312	XJBN-00558	[1]	COVER-VALVE(R)
S313.	XJBN-01387	[1]	PLATE(R)-VALVE
S314.	XJBN-01388	[1]	PLATE(L)-VALVE
401	XJBN-00028	[4]	SCREW
402	XJBN-00555	[4]	SCREW-HEX SOC HD
406	XJBN-00029	[4]	SCREW-HEX
466	XJBN-00030	[4]	PLUG
468	XJBN-00031	[4]	PLUG
490	XJBN-00032	[28]	PLUG
492	XJBN-00234	[1]	PLUG
492	XJBN-00234	[1]	PLUG
NS531.	XJBN-00369	[2]	PIN-TILTING
532	XJBN-00033	[2]	PISTON-SERVO
534	XJBN-00034	[2]	STOPPER(L)
535	XJBN-00035	[2]	STOPPER(S)
NS548.	XJBN-00360	[2]	PIN-FEED BACK
702	XJBN-00040	[2]	O-RING
706	XJBN-00554	[1]	O-RING
710	XJBN-00041	[1]	O-RING
717	XJBN-00042	[2]	O-RING
719	XJBN-00043	[3]	O-RING
724	XJBN-00361	[19]	O-RING
725	XJBN-00362	[6]	O-RING
706	XJBN-00554	[1]	O-RING
728	XJBN-00363	[4]	O-RING
732	XJBN-00047	[2]	O-RING
774	XJBN-00906	[1]	SEAL-OIL
789	XJBN-00049	[2]	RING-BACK UP
792	XJBN-00050	[2]	RING-BACK UP
808	XJBN-00364	[4]	NUT-HEX
824	XJBN-00052	[2]	RING-SNAP
885	XJBN-00053	[2]	PIN 2
886	XJBN-00054	[5]	PIN-SPRING
901	XJBN-00055	[2]	BOLT-EYE
953	XJBN-00056	[2]	SCREW-SET
954	XJBN-00553	[2]	SCREW-SET
981	XJBN-00156	[1]	NAME PLATE
983	XJBN-00341	[2]	PIN
*-2.	@	[1]	REGULATOR ASSY
*-3.	@	[1]	REGULATOR ASSY
*-4.	@	[1]	GEAR PUMP
S011.	XJBN-01382	[2]	PISTON ASSY
S013.	XJBN-01383	[1]	CYLINDER ASSY-RH
S014.	XJBN-01384	[1]	CYLINDER ASSY-LH
*-3.	@	[1]	REGULATOR ASSY
S030.	XJBN-00011	[2]	SWASH PLATE ASSY
S530.	XJBN-00371	[2]	TILTING PIN SUB ASSY
S011.	XJBN-01382	[2]	PISTON ASSY
S013.	XJBN-01383	[1]	CYLINDER ASSY-RH
S014.	XJBN-01384	[1]	CYLINDER ASSY-LH
S030.	XJBN-00011	[2]	SWASH PLATE ASSY
S530.	XJBN-00371	[2]	TILTING PIN ASSY
N.	@	[AR]	NOT SUPPLIED PARTS

Product Tags:

31qa-10010 Hyundai Pump Assy

Crawler Excavator Pump Assy

R360lc9 Excavator Pump Assy

31qa-10010 Hyundai Pump Assy For Crawler Excavator R360lc9 R380lc9a R380lc9dm R380lc9mh R430lc9
