| Categories | Metal Sewing Thread |
|---|---|
| Brand Name: | huitong |
| Model Number: | 8-14um Ultra Fine Resistive Wire |
| Certification: | SGS,ISO9001-2015 |
| Place of Origin: | Yiyang,China |
| MOQ: | 10kg |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 10tons per months |
| Delivery Time: | depends on quantity |
| Packaging Details: | paper carton |
| Material: | 316L,304 |
| features: | For Electronic Textile Identification Solutions |
| MOQ: | 1kg |
| diameter: | 12-14um |
| product name: | Ultra Fine RFID Wire |
| certification: | SGS,ISO9001-2015 |
| Company Info. |
| Hunan Huitong Advanced Materials Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

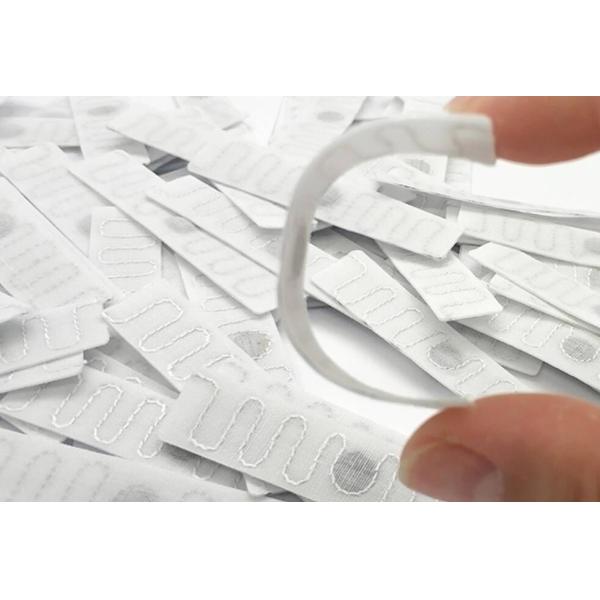

Metal Fiber RFID Wire Used In Electronic Textile Identification Solutions For The Industrial Laundry Process
With excellent electrical conductivity, high strength, high elasticity, abrasion resistance, corrosion resistance and excellent thermal stability in oxidative atmosphere; good durability, easy to weave into textiles, wide resistance range, customizable heating resistance ;The intelligent heating element made by ultra-fine metal fiber wire has the characteristics of softness, folding resistance, uniform heating and long service life.
【Technical Parameter】
| Type | Weight/meter (g) | Breaking load(N) | Elongation | Average Resistance |
| 14μm×90×1 | 0.12 | 25 | ≥1.10% | 61 |
| 12μm×90×2 | 0.17 | 44 | ≥1.10% | 42 |
| 12μm×100×1 | 0.095 | 24 | ≥1.10% | 59 |
| 12μm×100×2 | 0.19 | 41 | ≥1.10% | 38 |
| 12μm×100×3 | 0.28 | 69 | ≥1.10% | 22 |
| 12μm×275×1 | 0.25 | 59 | ≥1.10% | 27 |
| 12μm×275×2 | 0.50 | 75 | ≥1.10% | 14 |
| 12μm×275×3 | 0.75 | 125 | ≥1.10% | 9 |
| 12μm×275×4 | 1.01 | 130 | ≥1.10% | 7 |
| 12μm×275×5 | 1.25 | 160 | ≥1.10% | 5.5 |
| 12μm×275×6 | 1.5 | 180 | ≥1.10% | 4.7 |
| 12μm×275×8 | 2 | 180 | ≥1.10% | 3.6 |
| 8μm×1000×1 | 0.42 | 69 | ≥1.10% | 16 |
| 8μm×1000×2 | 0.85 | 108 | ≥1.10% | 8 |
| 12μm×1000×1 | 0.95 | 100 | ≥1.10% | 7 |
| 12μm×1000×2 | 1.9 | 340 | ≥1.10% | 3.6 |
| 13.3μm×100×3 | 0.33 | ≥80 | ≥1.10% | 22 |
Product Application
Be used in intelligent heating clothing (heating gloves, belts, insoles, socks, vests, jackets, sleeping bags, etc.), heating pads, car seats and steering wheel heating, it also widely used in anti-static brushes, high temperature sewing thread, RFID and so on.
|
