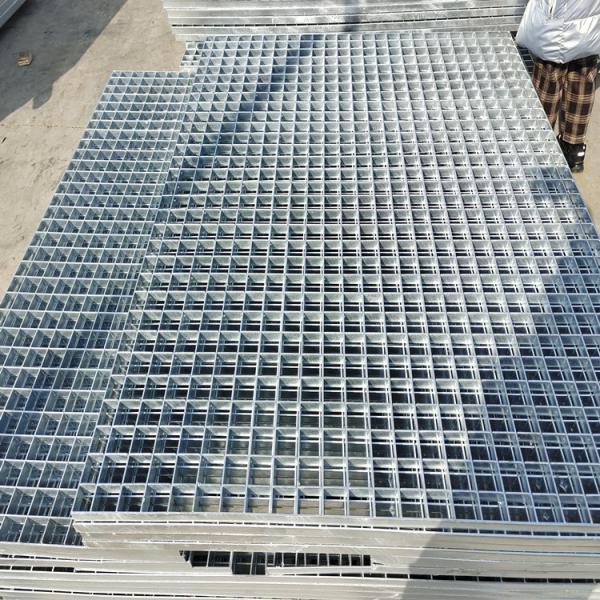

Hot Dipped Galvanized Metal Floor Grilles , Drainage Tree Cover Steel Mesh Grating

Metal floor grilles hot dipped galvanized steel mesh grating drainage tree cover grating

A. Material:

Low Carbon Steel or Stainless Steel

B.Surface Treatment:
Untreated, Painting or Hot Dipped Galvanizing

C.Specifications:

--Bearing Bar (Load Bar) Specifications (mm):

The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10.

The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.

--Bearing Bar Pitch (center to center):
12.5, 15,25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended,
America standard is available <1' x 3/16', 1 1/4' x 3/16', 1-1/2' x 3/16', 1' x 1/4', 1-1/4' x 1/4', 1 1/2' x 1/4'(19-w-4),(19-w-2) and so on.>

--Cross Bar Pitch (center to center):
38, 50, 76, 100, 101.6mm etc, also be according to client's requirement and 50, 100mm are recommended, America standard is available.

Steel grating standards:

A. China: YB/T4001-1998

B. USA: ANSI/NAAMM (MBG 531-88)

C. UK: BS4592-1987

D. Australia: AS1657-1988

E: Japan: JIS

Professional Work shop of drainage trench cover steel grating

Steel bar grating is made by welding with Flat steel and Cross bars with certain distance. As we have more than 20 years experience, so we can guarantee the catwalk steel grating with good welding technique and heavy galvanized coating.We can supply our client high quality catwalk steel grating with best steel grating prices in the market.

  Hebei Zhuote wire mesh products Co., LTD

We are Hebei Zhuote wire mesh Products Co., LTD., our company is located in the intersection of Beijing, Tianjin, Shijiazhuang three cities - the famous "China wire mesh town"

Peace. The company covers an area of 30000㎡, has more than 100 employees.

 As a modern enterprise, specializing in the production of steel grid plate,Grid plate, step plate, platform plate, punching plate series, guardrail net and other products.

The company is equipped with four automatic large-scale pressure welding production lines, welding technology is exquisite, beautiful, solid, smooth and burr free. In recent years, the company's sales increased steadily, last year's domestic trade sales of 75 million dollars, export sales reached 45 million dollars, domestic product sales involved in chemical energy, power plant substation, sewage treatment plant, new energy engineering, logistics transfer station, municipal engineering, for the domestic construction of a force. At the same time, the products are exported to Southeast Asia, Europe, the Middle East, Africa and other regions, and also create considerable foreign exchange income for the local.
