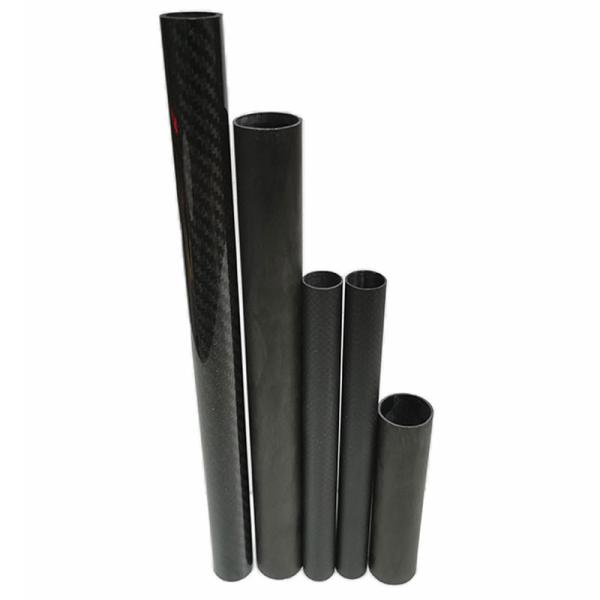

Lightweight High Modulus LIJIN Carbon Fiber Composite Tube - 100% 3K

Lightweight High Modulus LIJIN Carbon Fiber Composite Tube - 100% 3K

Our range includes both roll-wrapped carbon fibre tubes and pultruded carbon fibre tubes. Roll-wrapped carbon fibre tubes tend to be larger diameters and - because of their alternating layers of reinforcement - produce a more resilient tube, especially to crush and twist forces. Pultruded tubes tend to be in smaller diameters and provide the maximum possible longitudinal strength but at the expense of being more vulnerable to crushing or torsional fracture.

Features:

• Light weight.with a super low density of only 1.5 comparing
• with 1.95 of fiberglass composite,2.7 of aluminum and 7.85 of steel. It’s no more than 1/5 of steel.
• Super strength.it’s 5 times of that of steel.
• Corrosion-resistant.anti-acid,anti- alkali,never rust.it’s more excellent than stainless steel.
• UV-resistant.durable with a long lifetime.
• Pretty weak thermal conductivity
• Resistance of a super high temperature above 2000 degrees.
• X-ray transparency
• Non-magnetic electromagnetic
• Strength of extension is above 3500MPa,7 to 9 times of steel.
• Specific strength is above 2000,comparing with 59 of steel.
• Specific modulus is also higher than steel.
• Superior dimensional stability. It swell scarcely.
• Eco-friendly

What is Carbon Fiber?

Carbon fiber is composed of carbon atoms bonded together to form a long chain. The fibers are extremely stiff, strong, and light, and are used in many processes to create excellent building materials. Carbon fiber material comes in a variety of "raw" building blocks, including yarns, uni-directional, weaves, braids, and several others, which are in turn used to create composite parts.

Mission

Our products are engineered and technical in nature, requiring in-depth knowledge of technology in their design and fabrication. We utilize creative approaches to the solutions of problems and the creation of our products and processes to fabricate them. We apply high levels of craftsmanship to create our products, which are always beautiful and of the highest quality.

Our Products

LIJIN products are designed for use in constructing high-performance structures and are simple to work with as they can be easily cut, drilled, and assembled for a wide variety of applications. LIJIN offers a wide selection of standard sizes in laminate, veneer, angle, tube, rod and more.

Shanghai Lijin focuses on the Carbon Fiber industry and offers carbon fiber tubes, plates, and aluminum CNC services.

Being experienced in the carbon fiber applications for over 7 years, Shanghai Lijin manages customized production according to various industry standards. Shanghai Lijin started to keep in stock for some standard

sized and frequently ordered tubes and plates. This enables Shanghai Lijin to make prompt delivery. Not only

can Shanghai Lijin complete mass production orders in short period, we can even ship normal sample, prototype orders of Carbon Fiber Plate CNC parts in just SEVEN days after order confirmation when the

drawings are available. Shanghai Lijin is dedicated to solve any technical points during the production and new item developing to ensure the quality.

Carbon Fiber tube production is Shanghai Lijin’s core business and occupies 70% of our turnover.
The carbon fiber tubes Shanghai Lijin mainly produce is table-rolled and oven thermoset. The tubes can be Full Carbon or Carbon Fiber and Fiberglass composite, depending on the application, weight limit,mechanical

strength and surface requirement.Shanghai Lijin offers top quality ROUND carbon fiber tubes. The general OD tolerance we achieve is +/-0.10mm and it can be even +/-0.05mm after our special surface process.

The maximum length of the tube can be 5500mm.

Besides the traditional table-rolled carbon fiber tubes, Shanghai Lijin also offers REAL Filament wound carbon fiber tubes,which are widely used for mechanical strength like auto driving shaft, antennas, even for military

applications. The filament wound carbon tubes are wound at a certain angle like 30 or 45 degree. We invested the new production line from Jun 2013 and this increases Shanghai Lijin’s advantage in the carbon

fiber tube industry. There are just a few real filament wound carbon fiber tube manufacturers in domestic

China and we are one of them.


Since the rapid growth of UAV in the international market, instead of the standard plane like Phantom from DJI, RC fans are getting more interested in the customized multicopters. As carbon fiber is the most preferred

material for UAV, Carbon Fiber CNC parts demand is increasing. Shanghai Lijin sticks to offering OEM service for the international market, fine quality and prompt delivery.To ensure the thickness tolerance +/-0.10mm and minimum warp of the Carbon Fiber plates that are used for the cutting, Shanghai lijin execute high standard to

the plate production. For the normal thicknesses including 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm,
Shanghai Lijin keeps regular stock, to make sure the raw material will be available for cutting immediately when order is firmed.Experienced engineers are in Shanghai Lijin’s office ready to deal with different types of

drawings from customers. No matter the drawing formats are .DWG, .DXF that can be edited by AutoCAD

and used directly for production, 3D drawings like .IGS, or even draft drawings, our staff can do adjustment and change to customer’s idea. Our engineers are also good at English communication, Email and IM is easy

for them. Editing drawings for customers is FREE* of charge. Shanghai Lijin is having several professional CNC machines for carbon fiber cutting and drilling, with the capacity of cutting 20-50pcs standard full sized plate per day. The carbon fiber chassis general cutting tolerance Shanghai Lijin offer is +/-0.02mm. The

special designed cutting solution ensures the smoothness of the cutting edge.

‘Customers’ Persuit for Change, Lijin’s Motivation for Growth’, Shanghai Lijin takes customers’ demand for center, enhances the
customer satisfaction, and grows with customer.
