| Categories | Mineral Insulated Metal Sheathed Cable |
|---|---|
| Brand Name: | Leadkin |
| Model Number: | LK-KK-φ8.0-SS316-I |
| Certification: | ISO, |
| Place of Origin: | CHINA |
| MOQ: | 100M |
| Price: | USD 0.99-30/M |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1,000,000M/year |
| Delivery Time: | 2-7 working days |
| Packaging Details: | 68*68*8cm Carton |
| Sheath Material: | SS304,SS321,SS316,310S,Inconel600 |
| Type: | single,double |
| Calibration: | K,N,E,J,T,R,B,S,Pt100 |
| Dia: | 0.5mm-12.7mm |
| Name: | 2 core high temperature Sheath cable |
| Purity of MgO: | ≥99.6% |
| Sample: | free |
| Usage: | Industrial Temperature test |
| Supply ability: | 1,000,000 M/year |
| Company Info. |
| Ningbo Leadkin Instrument Complete Sets of Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

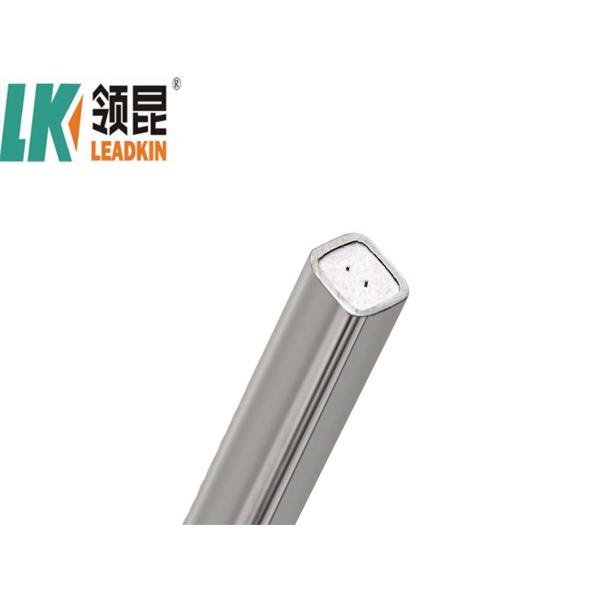

Mineral Insulated Cable MI Thermocouple Cable With Certifications
There are multiple types and grades of thermocouple wire. Each type of thermocouple wire has a specific combination of metal alloys. This combination is what defines the type of thermocouple. Thermocouple grade wire is used to manufacture thermocouple probes. Thermocouple grade wire is normally used for the junction and inside the stem sheath.
Type for Sheath Wire Type K
| Product Name | Code | Type | Shaeth Material | Outside Dia. | Temperature |
| NiCr-NiSi /NiCr-NiAl | KK | K | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| SS310 Inconel600 | 0.5-1.0 | 500 | |||
| 1.5-3.2 | 800 | ||||
| 4.0-6.4 | 900 | ||||
| 8.0-12.7 | 1000 | ||||
| NiCrSi-NiSi | NK | N | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| SS310 Inconel600 | 0.5-1.0 | 500 | |||
| 1.5-3.2 | 800 | ||||
| 4.0-6.4 | 900 | ||||
| 8.0-12.7 | 1000 | ||||
| NiCr-Konstantan | EK | E | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| Fe-Konstantan | JK | J | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| Cu-Konstantan | TK | T | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| RhPt10-Ph | SK | S | Inconel600 | 6.0-12.7 | 1100 |
Accuracy for Sheath Wire Type K
| Type | Class I | Class II | ||
| Accuracy | Temp.Range | Accuracy | Temp.Range | |
| K | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ | |
| N | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ | |
| E | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ | |
| J | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ | |
| T | ±0.5℃ | -40~125℃ | ±1.0℃ | -40~125℃ |
| ±0.4% | 125℃-350℃ | ±0.75% | 125℃-350℃ | |
| S | 0-1100℃ | ±1.0℃ | 0-1100℃ | ±1.5℃ |
Product Pictures
Order Notice:
| 1. Accurate quotation. |
| 2. Confirm the price, trade term, lead time, payment term etc. |
| 3. LEADKIN sales send the Proforma Invoice with LEADKIN seal. |
| 4. Customer arranges the payment for deposit and sends us bank slip. |
| 5. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again. |
| 6. End Production-Mass production products photos. |
| 7. Clients make payment for balance and LEADKIN ships the goods. Inform the tracking number and check the status for clients. |
| 8. The order is finished perfectly when you receive the goods and get satisfied with them . |
| 9. Feedback to LEADKIN about Quality , Service, Market Feedback & Suggestion. And we will do better . |
|
