Single Convoluted Industrial Air Springs G1/4 Centered Air Inlet Contitech FS 120-9 61358 Dunlop FR 8''x1 S08100

G1/4 Centered Air Inlet Contitech FS 120-9 61358 Dunlop(FR) 8''x1 S08100 Single Convoluted Industrial Air Springs

Item Information

Product no.: 1B1209-1/4

Similar model we have: G3/4 air inlet air spring

Brand: Netural Or As Customer's Customized

Packing: Strong netural box

Delivery time: 3 Working days

Cross Reference

Air Spring Supplier: Firestone

Supplier Number: W01-M58-6166; W01 M58 6166; W01M586166; WO1-M58-6166; WO1 M58 6166; WO1M586166; w01-m58-6166; w01 m58 6166; w01m586166

Air spring supplier: Dunlop(FR)

Supplier number: 8’’x1 S08100

Air spring supplier: Bosch

Supplier number: 822419008

Air spring supplier: Weforma

Supplier number: WBE 300-E2; WBE 300 E2; WBE300E2

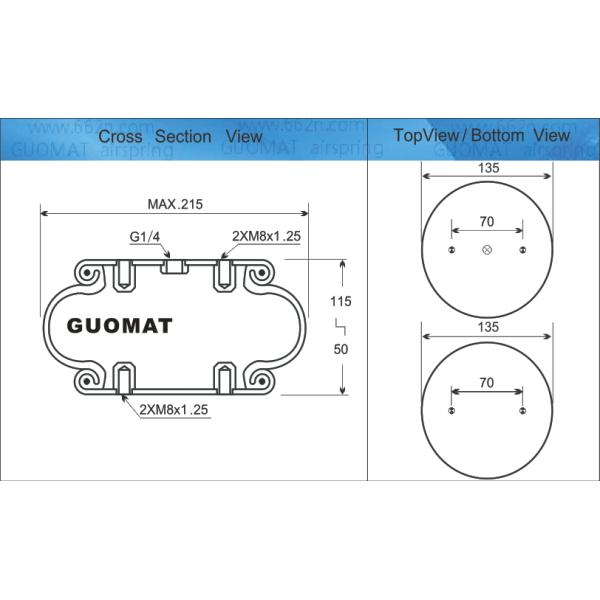

Specifications and Detailed Technical Parameters: 1B1209-1/4

Top plate diameter: 135mm

Bottom plate diameter: 135mm

Top plate blind nuts: 2pcs × M8× 1.25

Top plate screw center distance: 70mm

Bottom plate blind nuts: 2pcs × M8 ×1.25

Bottom plate screw center distance: 70mm

Air Fitting: G1/4, Centered

Max. rubber bellow diameter: 215mm

Min. Height: 50mm

Max. Height: 115mm

Bumper: Without

Girdle hoop: No

Packing Details

GUOMAT air springs can be used in nearly all branches of industry, such as

vehicle applications
automation technology
conveyor systems
agricultural machinery
food industry
paper and textile equipment
pantograph drives
sawmill machinery
punch and forming presses

Transfer station
Tensioning station
Bark peeling machine
Edge control
Scissors-type lifting table
Veneering press
Automatic ram weight adjustment

Pantograph

Air spring composition

Air fitting: A tapped hole allowing for the spring to be fed from the air compressor
Nut/bolt/mount: The method for attaching the air spring to the component. Some air springs incorporate a bolt and air fitting combination device.
Bead plate: Crimped metal plate enclosing the spring and allowing attachment. This is typically forged steel, cast zinc alloy or cast aluminum.
Bellows: The physical, multi-layer material withholding the compressed gas. Usually made of neoprene or rubber.
Girdle hoop: Only found in air springs of convoluted design, separating the bellows chambers.
Bumper: An optional layer of padding protecting the piston from damage if the air spring fails.

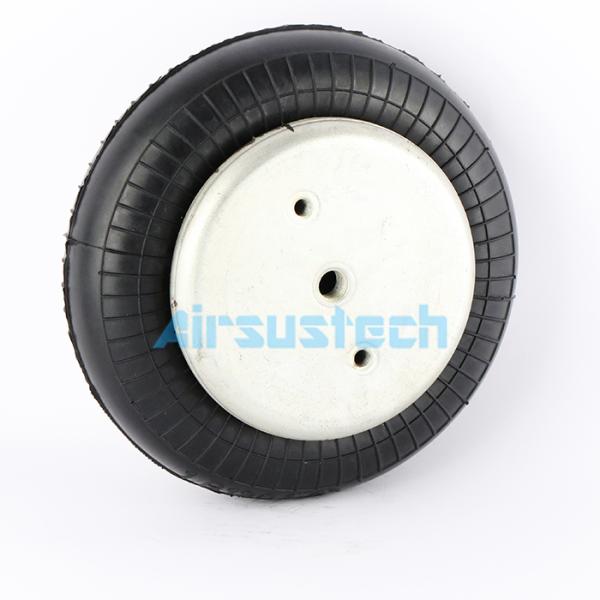

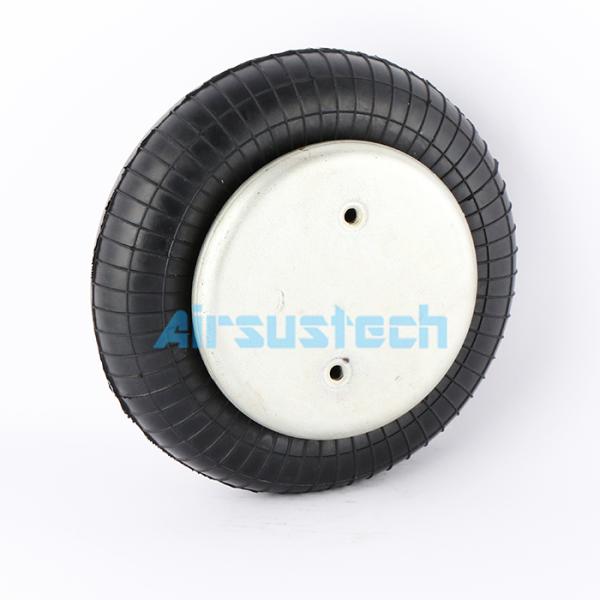

The related picture of 1B1209-1/4

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

AIRSUSTECH is another brand of Guangzhou Guomat Air Spring Co., Ltd.

AIRSUSTECH is focus on industrial air spring.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
