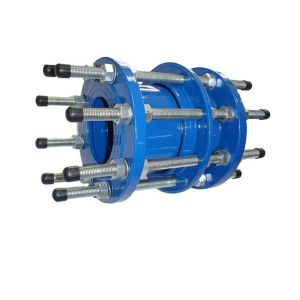

Ductile Iron PN10 ~ PN25 Dismanting Joint 2"-80"

Dismantling joint

1. PRODUCT PROFILE

Dismantling Joints play a decisive role in the design and layout of pipelines and valves. They are an essential aid during the installation and removal of pipe sections and valves. Without a dismantling joint offering longitudinal adjustment, it is almost impossible to insert a valve exactly into a pipe section.

2. FEATURES

· ±25mm longitudinal adjustment simplifies future pipework modifications, reducing down time

· Facilitates dismantling and reassembly in situ on the pipeline when bracketed to a flanged valve while guaranteeing continued mechanical resistance

· The substantial adjustable travel of these products means the “face to face” tolerances of the equipment to be installed is no longer a concern

· Makes placing joint rings between flanges easier, even those with inserts

· Special configurations and high pressure alternatives are available on request

3. TECHNICAL SPECIFICATION

· PN10~PN25

· Size: 2”~80” (DN50~DN2000mm)

· Materials: Ductile iron EN1563 GGG50

4. STANDARD

· Design & manufacturing: ISO, BS/EN, AWWA /ANSI

· Face to face: manufacturer’s

· Flange ends: AS/BS table D/E, ANSI B16.1/16.5, EN1092

· Inspection & testing: API598

5. APPLICATION

· Typical applicable industry:

· Sewage treatment works

· Water treatment works

· Power generation equipment

· Gas distribution station

· Industrial cooling systems

· Pumping station
