| Categories | Pneumatic Air Cylinders |
|---|---|
| Brand Name: | FESTO |

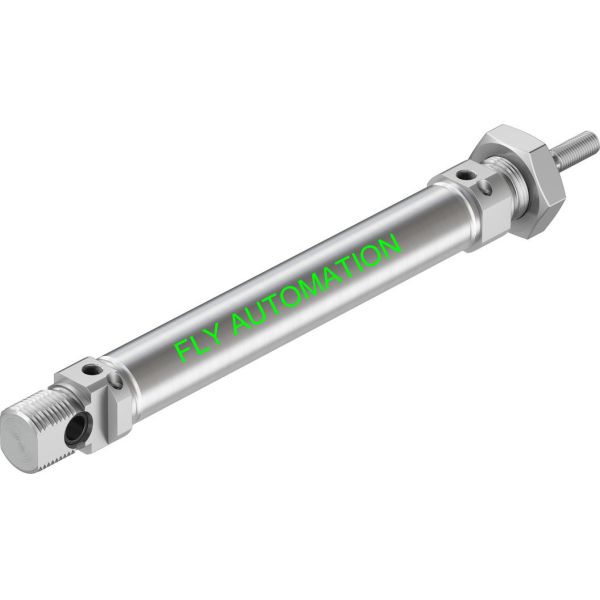

| Model Number: | DSNU-16-80-PPV-A |
| Place of Origin: | China |
| MOQ: | 1pc |
| Price: | EXW USD25-35 |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100 pcs per month |
| Delivery Time: | 7-10 working days |
| Packaging Details: | plastic bag, carton，OPP bag |
| Brand: | FESTO |
| Type: | DSNU-16-80-PPV-A |
| Part no: | 19231 |
| GTIN: | 4052568003302 |
| Cushioning length: | 12 mm |
| Material piston rod: | High-alloy stainless steel |
| Company Info. |
| Airwolf Automation |
| Verified Supplier |
| View Contact Details |
| Product List |
About product
1.Wide range of variants for customised applications.
2.Good running performance and long service life.
3.Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes.
Technical Data
| Stroke | 80 mm |
| Piston diameter | 16 mm |
| Piston rod thread | M6 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | CETOP RP 52 P ISO 6432 |
| Piston-rod end | Male thread |
| Design | Piston Piston rod Cylinder barrel |
| Position detection | Via proximity switch |

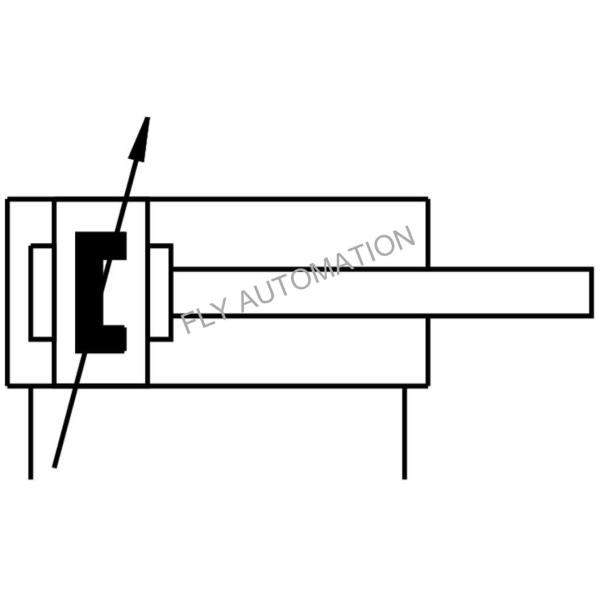

| Symbol | 00991235 |
| Variants | Piston rod at one end |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C-80°C |
| Cushioning length | 12 mm |
| Basic weight for 0 mm stroke | 89.9 g |
| Additional weight per 10 mm stroke | 4.6 g |
| Type of mounting | With accessories |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy Colourless anodised |
| Material seals | NBR TPE-U(PU) |
| Material piston rod | High-alloy stainless steel |
| Material cylinder barrel | High-alloy stainless steel |
Other stroke as Below
| Type | Order no | GTIN | Price |
| DSNU-16-10-PPV-A | 1908266 | 4052568108472 | USD25-35 |
| DSNU-16-15-PPV-A | 1908267 | 4052568108489 | USD25-35 |
| DSNU-16-20-PPV-A | 1908268 | 4052568108496 | USD25-35 |
| DSNU-16-25-PPV-A | 33973 | 4052568067809 | USD25-35 |
| DSNU-16-30-PPV-A | 1908269 | 4052568108502 | USD25-35 |
| DSNU-16-35-PPV-A | 1908270 | 4052568108519 | USD25-35 |
| DSNU-16-40-PPV-A | 19229 | 4052568067090 | USD25-35 |
| DSNU-16-50-PPV-A | 19230 | 4052568003296 | USD25-35 |
| DSNU-16-60-PPV-A | 1908271 | 4052568108526 | USD25-35 |
| DSNU-16-70-PPV-A | 1908272 | 4052568108533 | USD25-35 |
| DSNU-16-80-PPV-A | 19231 | 4052568003302 | USD25-35 |
| DSNU-16-100-PPV-A | 19232 | 4052568003319 | USD25-35 |
| DSNU-16-125-PPV-A | 19233 | 4052568003326 | USD25-35 |
| DSNU-16-150-PPV-A | 1908273 | 4052568108540 | USD25-35 |
| DSNU-16-160-PPV-A | 19234 | 4052568003333 | USD25-35 |
| DSNU-16-200-PPV-A | 19235 | 4052568067106 | USD25-35 |
Product detail
| Cushioning types | Cushioning PPV |
| Mode of operation | The drive has adjustable end-position cushioning |
| Application | Medium to high loads |
| High speeds | |
| High impact energies | |
| Advantages | Very powerful |
Cushioning PPV
There are so many type ,please call me immediately!
|
