UL Certified Ceramic Automotive Fuse 400A-1250A Rated Current

High Breaking Capacity Fuse Ceramic Automotive Fuse UL Certified Fuse Made in China

The ceramic tube fuse has been widely used in the entire electronic product industry because of its excellent breaking capacity and explosion-proof function. The main material is ceramics, which is safer than traditional glass tubes.

The following are several different types of ceramic fuses produced by the Dissamnn fuse:

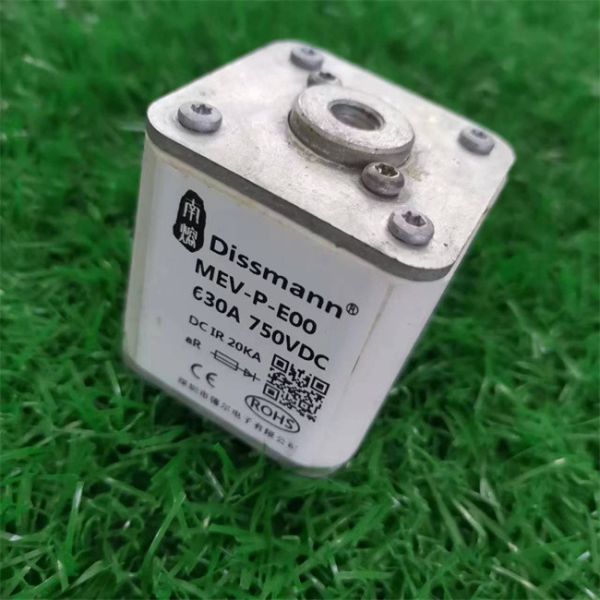

1.750VDC Square ceramic MEV series fuse:MEV-P-E00

Model	Product code	Rated current A	I²t(A²Sec)		Power consumption W
Model	Product code	Rated current A	Pre-arc	Total	Power consumption W
MEV-N-E00	MEV-N-E00-40	40A	40	270	9
	MEV-N-E00-50	50A	77	515	11
	MEV-N-E00-63	63A	115	770	14
	MEV-N-E00-80	80A	185	1250	18
	MEV-N-E00-100	100A	360	2450	21
	MEV-N-E00-125	125A	550	3700	26
	MEV-N-E00-160	160A	1100	7500	30
	MEV-N-E00-200	200A	2200	15000	35
	MEV-N-E00-250	250A	4200	28500	40
	MEV-N-E00-315	315A	7000	46500	50
	MEV-N-E00-350	350A	10000	68500	55
	MEV-N-E00-400	400A	15000	105000	60
	MEV-N-E00-450	450A	21000	140000	65
	MEV-N-E00-500	500A	27000	180000	70
	MEV-N-E00-550	550A	34000	230000	75
	MEV-N-E00-630	630A	48500	325000	80

2.500VDC Cylindrical Ceramic HEN series fuse:HEN-H-Q

500VDC Cylindrical Ceramic HEN series fuse

Size code	A±0.3	B±0.5	C±0.5	D±0.3	E±0.5	M
HN1	53	45	31	20	7	M6
HM1	53	45	31	20	7	M8
HN2	53	45	37	24	7	M6
HM2	53	45	37	24	7	M8

Model	Rated CurrentA	I²t(A²s)		Power dissipation W	Size code	Install
Model	Rated CurrentA	Pre-arc	Fusing	Power dissipation W	Size code	Install
HEN-H-Q-N200	200A	6000	20400	23	HN1	Mounting Bolt M6 recommended torque 6N·m
HEN-H-Q-N225	225A	9200	30500	25
HEN-H-Q-N250	250A	11500	40000	27
HEN-H-Q-N275	275A	14800	50000	29
HEN-H-Q-N300	300A	17000	60000	30
HEN-H-Q-N325	325A	19200	73500	32
HEN-H-Q-N350	350A	22000	86500	34
HEN-H-Q-N375	375A	25200	102000	36
HEN-H-Q-N400	400A	30000	117000	37
HEN-H-Q-N450	450A	56500	322000	40	HN2
HEN-H-Q-N500	500A	87000	365000	44
HEN-H-Q-N550	550A	115000	410000	47
HEN-H-Q-N630	630A	150000	512000	50
HEN-H-Q-M200	200A	6000	20400	23	HM1	Mounting Bolt M8 recommended torque 12N·m
HEN-H-Q-M225	225A	9200	30500	25
HEN-H-Q-M250	250A	11500	40000	27
HEN-H-Q-M275	275A	14800	50000	29
HEN-H-Q-M300	300A	17000	60000	30
HEN-H-Q-M325	325A	19200	73500	32
HEN-H-Q-M350	350A	22000	86500	34	HM2
HEN-H-Q-M375	375A	25200	102000	36
HEN-H-Q-M400	400A	30000	117000	37
HEN-H-Q-M450	450A	56500	322000	40
HEN-H-Q-M500	500A	87000	365000	44
HEN-H-Q-M550	550A	115000	410000	47
HEN-H-Q-M630	630A	150000	512000	50

3.750VDC Ceramic MEV series fuse:MEV-P-C20

750VDC Ceramic MEV series fuse

Model	Product code	Rated current A	I²t(A²Sec)		Power consumption W
Model	Product code	Rated current A	Pre-arc	Fusing	Power consumption W
MEV-P-C20	MEV-P-C20-16	16	7.2	48	5.5
	MEV-P-C20-20	20	11.5	78	7
	MEV-P-C20-25	25	19	130	9
	MEV-P-C20-32	32	40	270	10
	MEV-P-C20-40	40	69	460	12
	MEV-P-C20-50	50	115	770	15
	MEV-P-C20-63	63	215	1450	16
	MEV-P-C20-80	80	380	2550	19
	MEV-P-C20-100	100	695	4650	24
	MEV-P-C20-125	125	1200	8500	28
	MEV-P-C20-160	160	2300	16000	32
	MEV-P-C20-200	200	4200	28000	37
	MEV-P-C20-250	250	7750	51500	42
	MEV-P-C20-315	315	12000	80500	52
	MEV-P-C20-350	350	14500	98500	58
	MEV-P-C20-400	400	19500	133000	67

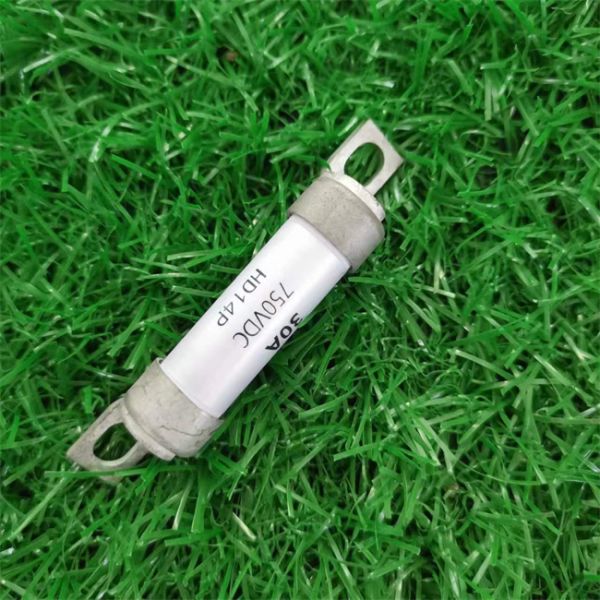

4.750VDC Ceramic HD14P series fuse:HD14P-30

750VDC Ceramic HD14P series fuse

Model

Rated current

Rated voltage

Breaking capacity

HD14S.J05

10A～150A

400Vac

6KA

HD14H.J05

10A～150A

500Vac

5.1000VDC Ceramic10x38 PV fuse:HD10PV.J03

1000VDC Ceramic10x38 PV fuse

Model	Rated current A	Rated voltage V	Breaking capacity	Body material
HD10PV.J01/ HD10PV.J03/ HD10PV.J04	1A～40A	1000Vac/dc	1.5KA	Ceramic / glass fiber
HD10P.J01/ HD10P.J03/ HD10P.J04	1A～40A	750Vac/dc	1.5KA
HD10V.J01/ HD10V.J03/ HD10V.J04	1A～50A	700Vac/dc	6KA
HD10D.J01/ HD10D.J03/ HD10D.J04	1A～50A	500Vac/dc	6KA
HD10C/HD10C.J01/HD10C.J03/HD10C.J04	30A～100A	400Vdc	1.5KA	Ceramic
HD10X/HD10X.J01/HD10X.J03/HD10X.J04	30A～100A	500Vac	1.5KA
HL10L1/HL10L1.J01/HL10L1.J03/HL10L1.J04	30A～100A	200Vdc	1.5KA
HL10L2/HL10L2.J01/HL10L2.J03/HL10L2.J04	30A～100A	100Vdc	1.5KA
HL10L/HL10L.J01/HL10L.J02/HL10L.J03/HL10L.J04	30A～100A	80Vdc	1.5KA
HDQ10C/HDQ10C.J01/HDQ10C.J03/HDQ10C.J04	30A～100A	400Vdc	1.5KA	glass fiber
HDQ10X/HDQ10X.J01/HDQ10X.J03/HDQ10X.J04	30A～100A	500Vac	1.5KA
HLQ10L1/HLQ10L1.J01/HLQ10L1.J03/HLQ10L1.J04	30A～100A	200Vdc	1.5KA
HLQ10L2/HLQ10L2.J01/HLQ10L2.J03/HLQ10L2.J04	30A～100A	100Vdc	1.5KA
HLQ10L/HLQ10L.J01/HLQ10L.J03/HLQ10L.J04	30A～100A	80Vdc	1.5KA

Product Tags:

400A High Breaking Capacity Fuse

1250A Ceramic Automotive Fuse

UL Certified Ceramic Automotive Fuse 400A-1250A Rated Current

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Dissmann \| Global Expert Fuse for EV \| HEV \| Photovoltaic \| Battery \| Energy Storage Solutions
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Ceramic Automotive Fuses
Brand Name:	Dissmann
Model Number:	MEV-H-F00/G00
Certification:	UL248-13、ISO8820、JAS0-D622、IEC60269、RoHS
Place of Origin:	China
MOQ:	100pcs
Price:	Negotiable
Payment Terms:	L/C, T/T
Supply Ability:	1000000pcs
Delivery Time:	5-8 days
Packaging Details:	Standard Carton Packing
Rated Voltage:	DC500V/AC690
Rated Current:	400A-1250A
Protection type:	aR
Breaking Capacity:	DC50KA (time instant ≤10ms)
Main Material:	ceramics
Application:	entire electronic product industry
