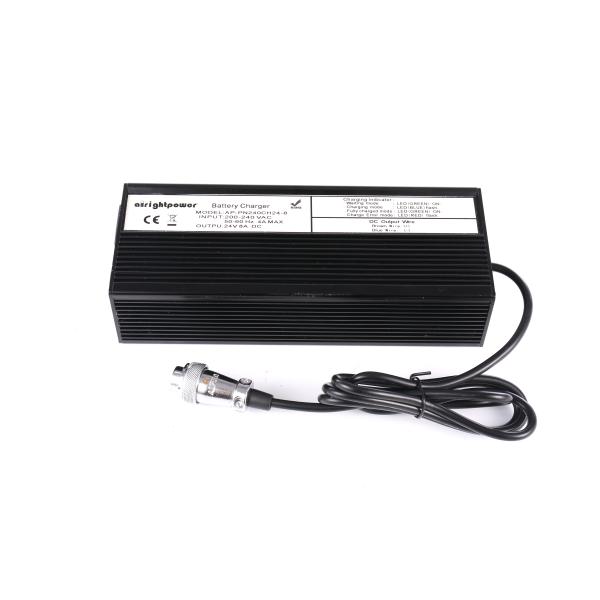

DC 240W EV Battery Charger For Golf Carts Ebike Electric Motorcycle

DC 240W EV Battery Charger For Golf Carts Ebike Electric Motorcycle

240W Battery Charger For Forklift Storage Battery Golf Carts Ebike Electric Motorcycle

深圳市盈源电子有限公司 Shenzhen YingYuan Electronics Co., Ltd Address:The 4-7th Floor, Building 8, HongYe Industrial Park, XiXiang Town, BaoAn District, ShenZhen, China
Specifications			PRODUCTS PICTURE
240W BATTERY CHAEGER l AC Input Voltage Range: AC100V～AC240V l AC Input Frequency: 45～65HZ l AC Power Factor Correction: ≥0.98 l Output Voltage:12V～60V l Output Current:16A(Max) l Full Load Efficiency: ≥90% l Shock & Vibration: 10～50HZ 2G 10 minutes,X,Y,Z /60 minutes l Operating Temperature: -20ºC～+45ºC(-20ºF～+113ºF) l Storage Temperature: -40ºC～+85ºC(-40ºF～+185ºF) l Dimensions (mm):(L)203х(W)81х(H)47.5 l Net Weight: 1.2kg
TYPICAL MODEL LIST
Charger Model	Rated Input Voltage	Battery Standard Voltage	Maximum charging Current	Maximum charging Current
AP-PN240CH01460160	100-240	12	14.6	16
AP-PN240CH02920080	100-240	24	29.2	8
AP-PN240CH04200060	100-240	36	42	6
AP-PN240CH05460040	100-240	48	54.6	4
AP-PN240CH01200160	100-240	12	14.7	16
AP-PN240CH02400080	100-240	24	29.4	8
AP-PN240CH03600060	100-240	36	44.1	6
AP-PN240CH04800040	100-240	48	58.8	4
SPECIFICATIONS
AC Input Voltage Range:	AC100V～AC240V	Shock & Vibration:	10～50HZ 2G 10 minutes,X,Y,Z /60 minutes
AC Input Frequency:	45～65HZ	Operating Temperature:	-20ºC～45ºC(-20ºF～+113ºF)
AC Power Factor Correction:	≥0.98	Storage Temperature:	-40ºC～+85ºC(-40ºF～185ºF)
Output Voltage:	12V～60V	Dimensions (mm):	(L)203х(W)81х(H)47.5
Output Current:	16A(Max)	Net Weigh:	1.2kg
Full Load Efficiency:	≥90%	Certifications	UL CE FCC RoHs
Protections	Thermal Self-Protection Charger will be stopped automatically when reaches to Maximum temperature , LED light will be red to warn it
	Short- circuit Protection When Short Circuit happened ,charger will turn off
	Reverse Connection Protection When the battery is polarity reversed ,the charger will cut off the connection between the circuit and the battery
	Battery Broken protection When some battery broke ,battery can not reach 100% full-charged ,charger will be shut down automatically
Application	Electric Bicycles/Tricycles/Scooters /Power tools and other electric-related equipment
MECHANICAL SPECIFICATION			PACKING DETAILS
			1pcs/Carton 1.2kg/Carton Carton size: 203*81*47.5mm

Application

Note: Before you place an order, please confirm the following questions to us:

1. What kind of battery do you need to charge ?

Li-ion battery or LiFePO4 battery or Lead Acid battery ?
2. What is the max charging voltage of the battery ?
3. What is the number of cells in series ?
4. What is the capacity(AH) of battery pack ?

5. What input plug and out plug do you need? For Example: B & 1
