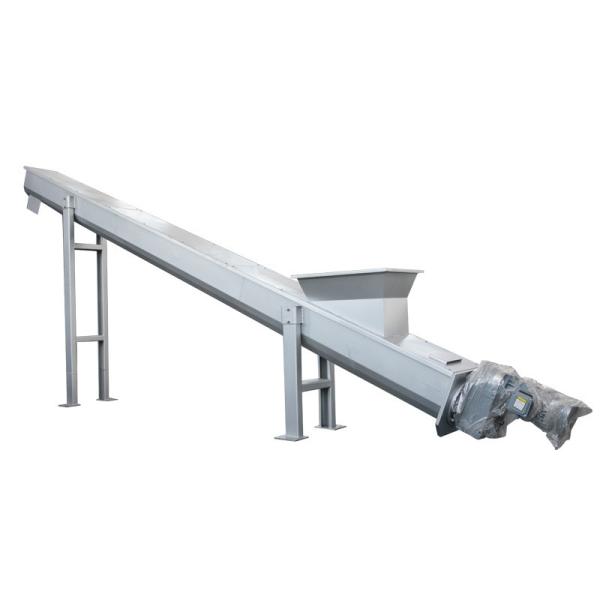

Stainless Steel Shaftless Screw Conveyor For Powder Grain Spiral Conveyor

stainless steel shaftless screw conveyor for powder grain spiral conveyor manufacturer

After the shaftless screw conveyor is installed in the sludge dewatering equipment, the dewatered sludge is transported to the loading place. Generally, it is made into a sealed structure for transportation, which plays the role of collecting and improving the environment for subsequent treatment. It consists of U-shaped groove, feed hopper and cover plate. Helix, lining plate, driving mechanism, etc.

Product Features

Fully automatic electrical protection can realize the joint control with the sludge dewatering system. It has a compact structure and is easy to install. The expansion bolt fixing groove is lined with wear-resistant materials, which has low noise. The length and angle of the environment can be improved. The feed hopper can be customized as required. The spiral blade is made of stainless steel or manganese steel, which has high strength.

Parameters	spiral Nominal diameter (mm) spiral dia (mm)	Type	LS-300W	LS-350W	LS-400W
			300	350	400
			285	320	385
Capacity	installation angle	0°	6	8.4	11.7
		5°	5.4	7.56	10.53
		15°	4.2	5.88	8.19
		25°	3.6	5.04	7.02
Spiral speed n(r/min)			12 to 16
Motor N(KW)		0.75-5.5 (according to L and angle)
installation size(mm)	A		0+40
	B		0 + 110
	Bi		Matching with corresponding equipment
	L		According to user requirements
	Li		Matching with corresponding equipment
	l_2		(L-1000)/2-(L-71000)/3
	L3		300	350	400
	H		Matching with corresponding equipment
	Hi		188	210	240
	H2		H-150
	H3		Matching with corresponding equipment

Real picture
