| Categories | Deep Groove Ball Bearing |
|---|---|
| Brand Name: | deep dream |
| Model Number: | 6709 |
| Place of Origin: | Shaanxi, China |
| MOQ: | 10 PCS |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 200000 pcs per day |
| Packaging Details: | 1.Single box: plastic bag+single box, OEM supply 2.Single wooden box: plastic bag+single wooden box 3.Carton: Standard export carton(30*108*38.1MM) or as your need. 4.Pallet: Wooden pallet with plastic film against moisture. 5.Pallet size: 1.2m*1m 6.Packag |
| Product name: | Deep Groove Ball Bearings |
| Type name: | 6709 |
| Service: | OEM Customized Services |
| Size: | 45x55x6mm |
| Package: | Original Package |
| Seals type: | OPEN |
| Material: | Chrome Steel GCR15 |

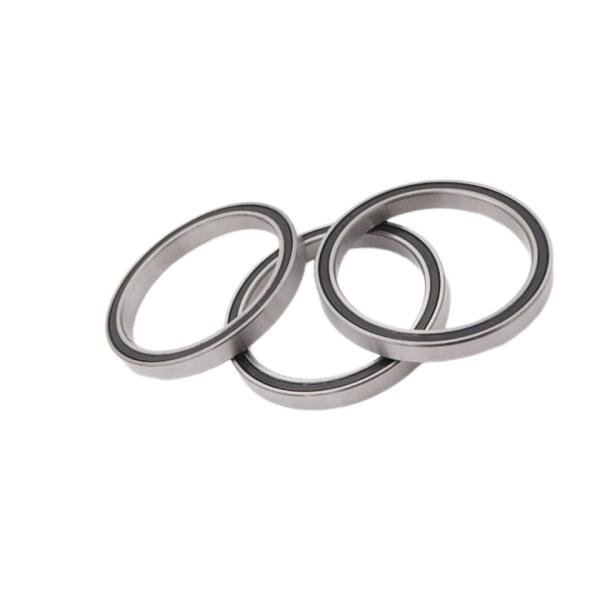

Description: of deep groove ball bearing
Deep Groove Ball Bearings offer multiple options that serve a wide
range of applications.
They typically consist of an Inner Ring, Outer Ring, Balls and
Cage. Variants are available with Steel Shields, Rubber Seals
(Contact/Non-Contact type), Snap-ring Grooves with Snap-rings, and
a variety of Cage types.
These Bearings are designed for radial, axial, and also composite
load applications. Deep Groove Ball Bearings offer
Uni or bi-directional load carrying capability
Very high-speed rotation
Very good running accuracy
Low noise and low friction torque
Specifications: of deep groove ball bearing 6709
Product Name | Deep Groove Ball Bearing |
Brand | Deep dream&OEM |
Model No | 6709 |
Sizes(mm) | 45x55x6mm |
Material | Chrome Steel, Bearing steel; GCr15; carbon steel, brass |
Sealed Type | 2RS rubber seals/ ZZ metal shields/Open |
Precision | P0, P5, P6 |
Clearance | C0, C2, C3, C4 |
Packing | Original Package |
| Model No | Size(ID*OD*B) | Dynamic load rating Cr(KN) | Static load rating Cor(KN) | Weight(kg) |
| 6700 | 10*15*3mm | 0.85 | 0.44 | 0.0015 |
| 6701 | 12*18*4mm | 0.92 | 0.053 | 0.003 |
| 6702 | 15*21*4mm | 0.93 | 0.58 | 0.004 |
| 6703 | 17*23*4mm | 0.99 | 0.66 | 0.005 |
| 6704 | 20*27*4mm | 1.05 | 0.73 | 0.006 |
| 6705 | 25*32*4mm | 1.10 | 0.84 | 0.006 |
| 6706 | 30*37*4mm | 1.15 | 0.95 | 0.008 |
| 6707 | 35*44*5mm | 1.8 | 1.6 | 0.015 |
| 6708 | 40*50*6mm | 2.51 | 2.23 | 0.023 |
| 6709 | 45*55*6mm | 2.58 | 2.39 | 0.025 |
| 6710 | 50*62*6mm | 2.67 | 2.64 | 0.032 |
Advantage:
1. High speed, high precision
2. Long service life
3. Low noise and good performance
Why Choose Us:
1. High speed, High Precision, Low Noise, Long Service Life
2. Widely used
3. Large Inventories
4. High Quality and Competitive Prices
5. Various Brands
6. OEM is supported
Applications:
Widely used in automobiles, household appliances, machine tools, motors, pumps, agricultural machinery, textile machinery and many other fields.
FAQ
1. who are we?
We are based in Shaanxi, China, start from 2019,sell to North
America(17.00%),Eastern Asia(15.00%),Domestic
Market(12.00%),Eastern Europe(10.00%),Western Europe(10.00%),South
Asia(5.00%),Southeast Asia(5.00%),South America(5.00%),Northern
Europe(5.00%),Oceania(5.00%),Mid East(4.00%),Southern
Europe(3.00%),Africa(2.00%),Central America(2.00%). There are total
about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
deep groove ball bearing,needle rollerbearing,bearings, pillow
block bearing,tapered roller bearing
4. why should you buy from us not from other suppliers?
Our company is located in Xi'An, China. With advanced science and technology R&D team, strong
marketing and financial support, sound after-sales service,
professional engineers, we will supply you goods with high quality
and good service.
|
