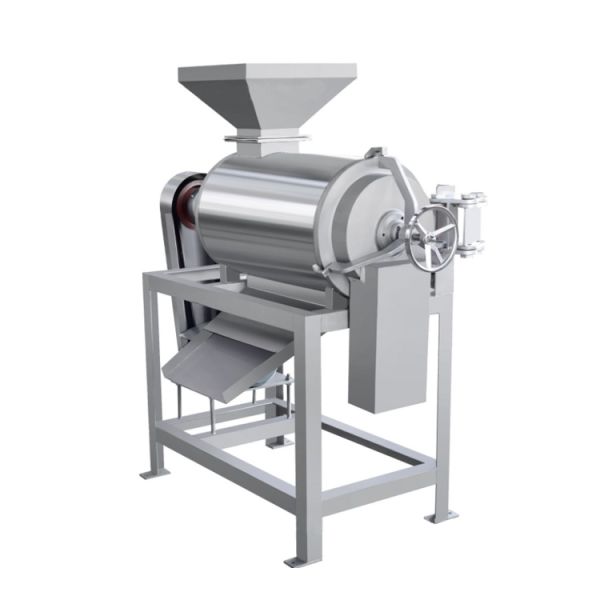

avocado pulper remove peel stone peach skin remover watermelon scoop peeler
Main Parameters:
| Product name | Model | Capacity | Power | Machine dimensions |
| Single-channel peeling and beating machine | CQ-DYJ1-1 | 500-1000kg/h | 3kw | 850*750*1100mm |
| CQ-DYJ1-2.5 | 1500-2500kg/h | 4-7.5kw | 1550*680*1500mm | |
| CQ-DYJ1-5 | 3000-5000kg/h | 11-15kw | 1950*800*1800mm | |
| Double-channel peeling and beating machine | CQ-DYJ2-1 | 500-1000kg/h | 3kw+3kw | 950*850*1500mm |
| CQ-DYJ2-2.5 | 1500-2500kg/h | 5.5kw+7.5kw | 1600*1450*1900mm | |
| CQ-DYJ2-5 | 3000-5000kg/h | 11kw+15kw | 1950*1750*2200mm |
Machine Features:
1. This machine can realize automatic separation of pulp and slag
core.
2. This machine can be combined on the production line or produced
on a stand-alone basis.
3. The parts in contact with the materials are made of high-quality
stainless steel, which meets the requirements of food hygiene.
4. The main structure of this machine is the transmission system,
bearing seat, cylinder back cover, baffle plate, cylinder body,
shaft, screen, scraper (or beating rod), cylinder front cover,
frame, etc.
5.Optional screen aperture: Φ0.6, 0.8, 1.0, 1.2, 1.6, 2, 3, 4, 6mm
and other specifications.
Working Principle:
1. The motor is driven by a V-belt to make the scraper mounted on
the shaft rotate at high speed. When the crushed fruit or raw fruit
enters the machine through the feed port, the baffle plate will
evenly discharge the material to the scraper and the screen. In
between, due to the rotation of the scraper and the existence of
the lead angle, the material moves along the cylinder to the outlet
end. The moving track is spiral, and the material is subjected to
centrifugal force during the movement between the scraper and the
screen. The juice and meat (have become pulpy) pass through the
screen holes and enter the next process (the double-pass beater
repeats the above process for linkage), and the skin and seed cores
are discharged from the slag hopper. To achieve the purpose of
automatic separation.
2. According to the different raw materials, as long as the screens
of different specifications are changed and the lead angle of the
scraper is adjusted, different beating speeds can be changed to
obtain satisfactory results.
