| Brand Name: | HANJIU |
| Model Number: | 4000 series |
| Certification: | ISO 2015:9001 |
| Place of Origin: | CHINA |
| MOQ: | 1 Sets |
| Price: | Start from 500 usd |
| Payment Terms: | L/C, T/T, Western Union, Western Union |
| Supply Ability: | 300000 sets per year |
| Delivery Time: | 15 - 45 work days |
| Packaging Details: | Carton, Box, Pallets |
| Item: | Disc Geroler motors |
| Model: | 4000 series |
| Direction of rotation: | Reversible |
| Fastening: | 4 Bolts standard type |
| flange: | SAE FLANGE |
| charlynn code: | 109-1339-006 |
| Company Info. |
| Shijiazhuang Hanjiu Technology Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

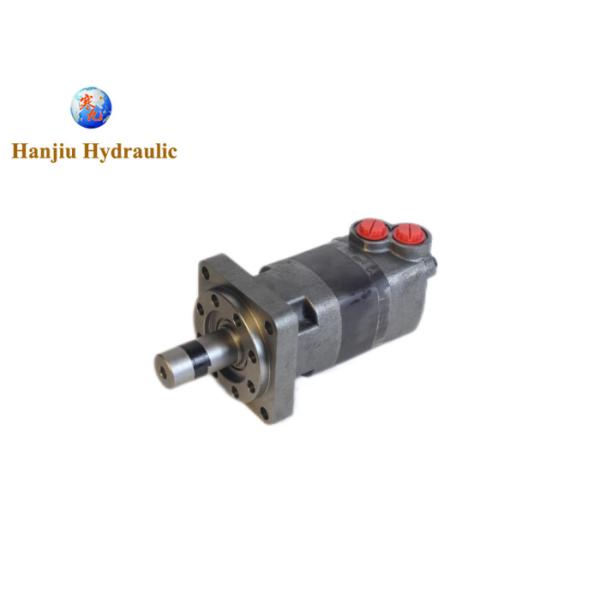

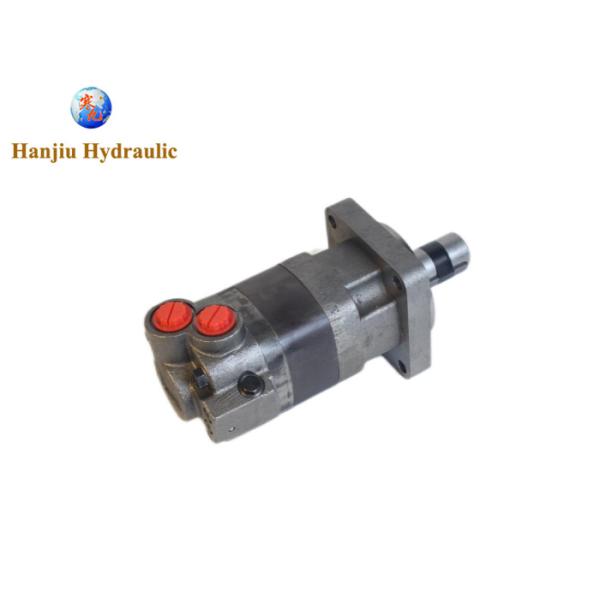

new OEM Char-Lynn 4000 Series; Standard Mount Motor 109-1339-006 Aftermarket
Product details:
| PRODUCT | MOTOR |
| SERIES | 4000 SERIES |
| DISPLACEMENT | 393.9 CM3/R [24.04 IN3/R] |
| MOUNTING TYPE | STANDARD, 4 BOLT; 127.00 [5.000] PILOT DIA.14.27 [.562] DIA. HOLES ON 161.92 [6.375] DIA. BOLT CIRCLE. (SAE C) |
| OUTPUT SHAFT | 40.00 [1.575] DIA. STRAIGHT WITH M12 X 1.75-6H THREAD, 7.955 [.3132] X 11.979 [.4716] WIDE X 69.98 [2.755] STRAIGHT KEY |
| PORTS | 1.0625-12 UN-2B SAE O-RING PORTS - STAGGERED PORTS |
| FLOW OPTIONS | .4375-20 UNF-2B SAE O-RING PORT WITH CHECK VALVE |


Applications
Harvesters
Augers
Spreaders
Machine tools
Conveyors
Winches
Turf care equipment
Food processing
Aerial Work Platforms
Anywhere a compact drive with high output torque is needed
