Thickness 5mm 25m 16 Sides Galvanized Light Pole For Airport Lighting

Categories Steel Power Pole
Brand Name: milky way
Model Number: 220kv steel tubular pole
Certification: ISO 9001;2015
Place of Origin: JIANGSU YIXING
MOQ: one container
Price: USD130-180 PER POLES
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 POLES PER WEEK
Delivery Time: ALWAYS 20 DAYS
Packaging Details: Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole ,anyway also can following by client required , The loading capacity of 40HC or OT an be calulated calcu
MATERIAL: Q234 Q345 Q460
APPLICATION: POWER TRANSMISSION
COLOR: CUSTOMIZED
HEIGHT: 25-40ft
SURFACE TREATMENT: HOT DIP GALVANIZATION
GALVANIZATION STANDARD: ASTM A123
WELDING: AWS D1.1
WARRENTY: 15 YEARS
Design of pole: Against earthquake of 8 grade
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Thickness 5mm 25m 16 Sides Galvanized Light Pole For Airport Lighting


ShapeConoid ,Multi-pyramidal,Columniform,polygonal or conical
Material

Usually Q345B/A572,minimum yield strength>=345n/mm2

Q235B/A36,minimum yield strength>=235n/mm2

As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-

Lamp power

20 W- 400 W (HPS/MH)

220V (+-10%) /50Hz

Torlance of the dimenstion+- 2%
Power10 KV ~550 KV
Safety Factor

Safety factor for conducting wine : 8

Safety factor for grounding wine : 8

Design Load in Kg300~ 1000 Kg appliced to 50cm from the to pole
MarksNane palte through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatmentHot dip galvanized Following ASTM A 123,color polyester power or any other standard by client required.
Joint of PolesInsert mode,innerflange mode,face to face joint mode .
Design of poleAgainst earthquake of 8 grade
Wind Speed160 Km/Hour
Minimum yield strength355 mpa
Minimum ultimate tensile strength490 mpa
Max ultimate tensile strength620 mpa
StandardISO 9001
Length of per sectionWithin 14m once forming without slip joint
WeldingWe has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness1 mm to 30 mm
Production ProcessRew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages
PackagesOur poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.

Competitive Advantage:


1. Easy work: more than 23 years pole field. quickly understand your meaning and let you get your result.
2. Lowest MOQ: lowest quantity from 1Ton depends on different style .
3. OEM Accepted: We can produce any pole of your design.
4. Good Service: We treat clients as friends.
5. Good Quality: We have very strict quality control system .Good reputation in the market.
6. Fast & Cheap Express service: We have big discount from forwarder (Long-term Contract with TNT,DHL,UPS,FEDEX,EMS ).
7. Manufacturer Capacity : 300 pieces/day.

Description:


Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on.


We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on.

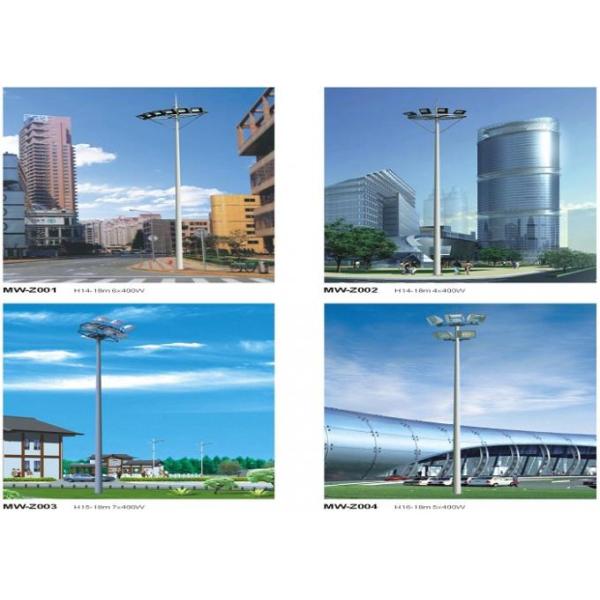

Professional 25m 8 Sides Galvanized Steel Outdoor Square Light Pole 10 KV ~550 KV 0


Design and Detail :


Lofting and design software :We have transmisson power pole design software which can help us design all kinds of steel pole ,at the same time ,the TMA and LMA are adopted by us to provide the design the drawing accuratly.


Professional 25m 8 Sides Galvanized Steel Outdoor Square Light Pole 10 KV ~550 KV 1


Our Servises:


1 Reply your inquiry in 24 working hours.


2 Experienced staffs answer all your questions in fluent English.


3 Customized design is available. UEM&UBM are welcomed.


4 Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.


5 Special discount and protection of sales are provided to our distributor.


6 Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 20 years, competitive with good quantity.


7 Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.


8 As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.


Professional 25m 8 Sides Galvanized Steel Outdoor Square Light Pole 10 KV ~550 KV 2
