50×250Mesh Stainless Steel Plain Dutch Weave Filter Cloth AISI SUS DIN JIS Standard

Introduction:

In a Plain Dutch Weave, the diameter of the warp wire is larger than the weft, and the mesh is formed by weaving a limited number of warps with the maximum number of weft wires woven tightly together, producing a cloth with no readily visible apertures. This mesh is strong and stable, easy to clean and with a good flow rate suitable for high pressure liquid/solid separation.

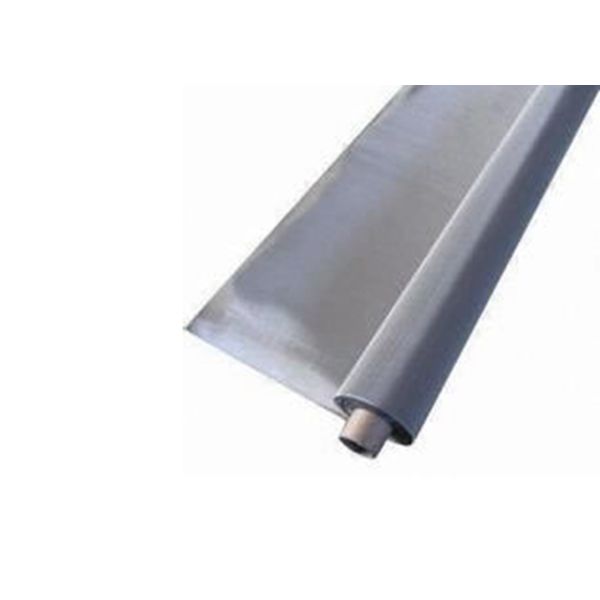

50X270 mesh plain dutch weave stainless steel wire mesh. Using 0.14X0.10mm diameter wire, by plain dutch weaving, woven 50X270 mesh opening for 50μm liquid or gas filter material. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

Wire Materials: SS304, SS304L, SS316, SS316L

Characteristics:

1. Warp wire has bigger dia than shute wire
2. Shute wires are possibly bound close to each other
3. High accuracy
4. Nominal or no pressure loss while filtration
5. Supreme filtration surface
6. More stable than square and rectangular wire mesh

Weaving Patterns:

Plain dutch, twill duth, reverse dutch, five heddle.

Packing:

stainless steel mesh made in small rolls,outside wooden cases.

Main Features:

The Plain Dutch Weave is just similar to plain weave woven wire screen where every weft wire and wrap wire passes over and beneath the next adjacent wire. The Plain Wire Mesh is available in two different sizes of wire diameter to suit your unique filtration needs. The weft wire used for designing it has finer wire diameter that is tightly woven together and this offers a tight mesh for optimal filtration. However, the wrap wires come with coarser wire diameter and this ensures to offer the required strength and durability to the final woven wire screen. Some of the unique characteristics include:

* It is stronger and robust than square and rectangular wire mesh or screen
* Zero in aperture
* The open area is quite higher as compared to other weaves

Specifications

Roll Width: 0.2m-1.6m

Roll Length: 10m, 20m, 30m; 100ft

Common Specifications of Plain Dutch Wire Mesh

Delivery Time
We always prepare enough stock material for your urgent requirement, the delivery time is 7 days for all the stock material. We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.

Mutual Benefit
If the products of our distributors are unmarketable due to the influence by market factors,we will seek customers in the same market or near market who are in need of the products to help the distributors to handle unsalable products.

Our other products

Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.

Our product range is as below,

Stainless steel woven wire mesh

Welded wire mesh

Crimped wire mesh

Hexagonal wire mesh

Knitted wire mesh

Wire mesh filter

Window screen

It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.

In order to make an offer,please provide us below wire mesh specification information.

Material

Wire diameter

Mesh size

Wire mesh length

Wire mesh width

If it is possible,please also provide us weight per roll that you required.
