| Categories | Electric Marine Winch |
|---|---|
| Brand Name: | LBS |
| Model Number: | Non-standard |
| Certification: | CCS, ABS |
| Place of Origin: | Shijiazhuang Hebei China |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 150 sets per month |
| Delivery Time: | 30 to 40 working days, depends on order amounts and specification |
| Packaging Details: | Export standard wooden case |
| Standard: | NS-ISO 13920BF |
| Corlor: | Interthane 990 Blue white |
| Application Range: | Marine crane |
| Length: | 1600mm |
| Material: | S355J2H |
| High: | 890mm |
| Weight: | 230kg |
| Surface general: | Ra 6.3 |
| Processing mode: | welding and maching |
| Function: | Support the bearing of winch |
| Name: | Bracket-Bearing For Winch Rope Lifing And Down |
| Company Info. |
| Hebei Junke Machinery Technology Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

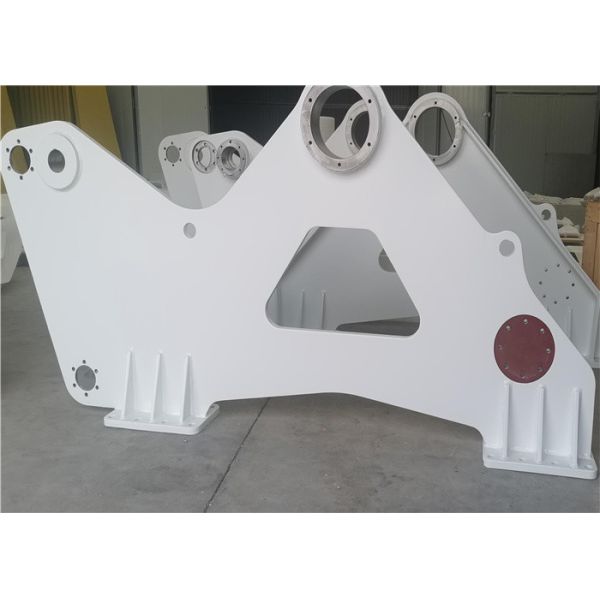

Product name: Q355D Marine Crane Equipment Parts Bracket -Bearing For Winch Rope Lifing And Down
Other name: Marine Winch bracket-bearing.
Standard: NS-ISO 2768mK
Sling type: cable or wire
power: Electirc
colour: Inerthane 990 Blue white
Rope: 100-1000mm
Rope diameter: 3-199mm
Tolerance General: NS-ISO 2768mK
Our company mainly serves lifting machinery, marine machinery, petroleum machinery, water conservancy machinery, We can produce winches and all steel parts for winches.
| Q/TY | ITEM | DESCRIPTION | TECHNICAL DESCRIPTION | MATERIAL | MASS | |
| 1 | 1 | Plate | PL30 | S355J2+N | 146.68KG | |
| 2 | 2 | Plate | PL25 | S355J2+N | 11.23KG | |
| 1 | 3 | Plate | PL25 | S355J2+N | 18.63KG | |
| 1 | 4 | Plate | PL20 | S355J2+N | 18.63KG | |
| 2 | 5 | Plate | PL20 | S355J2+N | 4.25KG | |
| 1 | 6 | Tube square | w300* H300 *T12 *L1250 | S355J2H | 26.26KG |
No parts shall be let unwelded unless clearly tsated on the drawing, for efficient and easy access it is recommended that sharp edges (that are not to be welded) are rounded to minimum R2.5 before assembling parts.
To ensure sufficient adhession for surface treatment all sarp edges shall be rounded to minimum R2.5, welding spatter beads and slag shall be completely removed, damaging in surfaces shall be filed and grinded flush, negative thickness measurements are prohibited.
Test temperature and charpy V-notch impact energy shall be in accoradance with DNV lifting appliances No.2.22. values for plates in primary and essential welded steel structure is listed in table below:
| Yield stress Re(MPa) | Thichness(mm) | temp(°C) | Impact energy(J) |
| 355 | 6< t ≤ 25 | 0 | 34 |
| 25< t ≤ 50 | -20 | 34 | |
| 50< t ≤ 70-40 | -40 | 41 | |
| 70< t ≤ 150 | -40 | 50 | |
| 690 | 6< t ≤ 25 | 0 | 46 |
| 6< t ≤ 25 | -20 | 46 | |
| 50< t ≤ 70 | -40 | 46 |
|
