Name: Single Row Large Turntable Bearing For Construction Equipment
Brand: Solarich
Price: 99 USD

Home > Swivel Plates >

Single Row Large Turntable Bearing For Construction Equipment

Categories	Slewing Ring Bearing
Brand Name:	Solarich
Model Number:	110.25.500---110.50.4500
Certification:	ISO9001
Place of Origin:	China
MOQ:	1
Price:	$99-199
Payment Terms:	D/A, L/C, T/T, Western Union
Supply Ability:	100000/month
Delivery Time:	15-25days
Packaging Details:	Seaworthy wooden case
Type:	Single row cross roller slewing bearing
Precision rating:	P0 P6 P5 P4 P2, P6, P0, P4, P5
Material:	42CrMo, 50Mn , chrome Steel, carbon steel/CCR 15, Gcr15, 9Cr18
Feature:	Long Life, durable
Application:	Automotive, Machinery, Taper Roller Bearing, etc, cars
Lubricating:	EP2 grease or customized
Customized:	Available
Service:	OEM Service.Design Service, OEM Customized Services, Customization & OEM Service, ODM, OEM
Packing:	Industrial packing, Single Box, Box Packing+Carton+Pallets
Specification:	Customized

Contact Now

Add to Cart

Company Info.

Luoyang solarich machinery Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

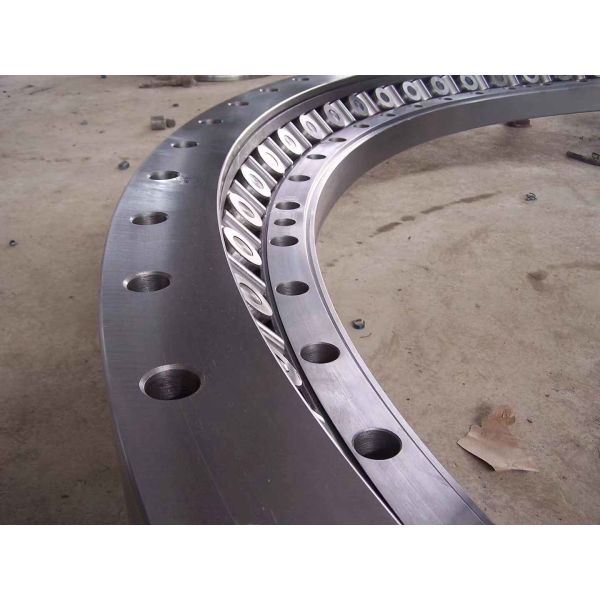

Single Row Large Turntable Bearing For Construction Equipment

Single row crossed roller bearing

Single row crossed roller slewing bearing incorporates two rings and designed with compact construction, light weight, high precision, and small assembling clearance. The rollers are crossed 1:1, enabling the slewing bearing to accommodate high axial, radial and tilting moment loads. Single row crossed roller slewing bearing is suitable for hoisting equipment and other engineering machinery.

Designations			Boundary dimensions			Bolt hole diameter				Gear parameters
Designations			D	d	H	D1	D2	n	φ	m	Da	z	da	z	b
Non-gear	External gear	Internal gear	mm			mm		n	mm	m	mm	z	mm	z	mm
110-25-500	111-25-500	113-25-500	602	398	75	566	434	20	18	5	630	123	365	74	60
	112-25-500	114-25-500	602	398	75	566	434	20	18	6	630	120	366	62	60
110-25-560	111-25-560	113-25-560	662	458	75	626	494	20	18	5	690	135	425	86	60
	112-25-560	114-25-560	662	458	75	626	494	20	18	6	690	112	426	72	60
110-25-630	111-25-630	113-25-630	732	528	75	696	564	24	18	6	774	126	492	83	60
	112-25-630	114-25-630	732	528	75	696	564	24	18	8	776	94	488	62	60
110-25-710	111-25-710	113-25-710	812	608	75	776	644	24	18	6	852	139	570	96	60
	112 25 710	114-25-710	812	608	75	776	644	24	18	8	856	104	568	72	60
110-28-800	111-28-800	113-28-800	922	678	82	878	722	30	22	8	968	118	632	80	65
	112 28 800	114-28-800	922	678	82	878	722	30	22	10	970	94	630	64	65
110-28-900	111-28-900	113-28-900	1022	778	82	978	822	30	22	8	1064	130	736	93	65
	112-28-900	114-28-900	1022	778	82	978	822	30	22	10	1070	104	730	74	65
110-28-1000	111-28-1000	113-28-1000	1122	878	82	1078	922	36	22	10	1190	116	820	83	65
	112-28-1000	114-28-1000	1122	878	82	1078	922	36	22	12	1188	96	816	69	65
110-28-1120	111-28-1120	113-28-1120	1242	998	82	1198	1042	36	22	10	1300	127	940	95	65
	112-28-1120	114-28-1120	1242	998	82	1198	1042	36	22	12	1308	106	936	79	65
110-32-1250	111-32-1250	113-32-1250	1390	1110	91	1337	1163	40	26	12	1452	118	1044	88	75
	112-32-1250	114-32-1250	1390	1110	91	1337	1163	40	26	14	1456	101	1036	75	75
110-32-1400	111-32-1400	113-32-1400	1540	1260	91	1487	1313	40	26	12	1608	131	1188	100	75
	112-32-1400	114-32-1400	1540	1260	91	1487	1313	40	26	14	1610	112	1190	86	75
110-32-1600	111-32-1600	113-32-1600	1740	1460	91	1687	1513	45	26	14	1820	127	1386	100	75
	112-32-1600	114-32-1600	1740	1460	91	1687	1513	45	26	16	1824	111	1376	87	75
110-32-1800	111-32-1800	113-32-1800	1940	1660	91	1887	1713	45	33	14	2016	141	1568	113	75
	112-32-1800	114-32-1800	1940	1660	91	1887	1713	45	33	16	2016	123	1568	99	75
110-40-2000	111-40-2000	113-40-2000	2178	1825	112	2110	1891	48	33	16	2272	139	1728	109	90
	112-40-2000	114-40-2000	2178	1825	112	2110	1891	48	33	18	2268	123	1728	97	90
110-40-2240	111 40 2240	113-40-2240	2418	2065	112	2350	2131	48	33	16	2496	153	1984	125	90
	112-40-2240	114-40-2240	2418	2065	112	2350	2131	48	33	18	2502	136	1980	111	90
110-40-2500	111-40-2500	113-40-2500	2678	2325	112	2610	2391	56	33	18	2772	151	2232	125	90
	112-40-2500	114-40-2500	2678	2325	112	2610	2391	56	33	20	2780	136	2220	112	90
110-40-2800	111-40-2800	113-40-2800	2978	2625	112	2910	2691	56	33	18	3078	168	2520	141	90
	112-40-2800	114-40-2800	2978	2625	112	2910	2691	56	33	20	3080	151	2520	127	90
110-50-3150	111-50-3150	113-50-3150	3376	2922	134	3286	3014	56	45	20	3480	171	2820	142	110
	112-50-3150	114-50-3150	3376	2922	134	3286	3014	56	45	22	3476	155	2816	129	110
110-50-3550	111-50-3550	113-50-3550	3776	3322	134	3686	3414	56	45	20	3880	191	3220	162	110
	112-50-3550	114-50-3550	3776	3322	134	3686	3414	56	45	22	3894	174	3212	147	110
110-50-4000	111-50-4000	113-50-4000	4226	3772	134	4136	3864	60	45	22	4334	194	3652	167	110
	112-50-4000	114-50-4000	4226	3772	134	4136	3864	60	45	25	4350	171	3650	147	110
110-50-4500	111-50-4500	113-50-4500	4726	4272	134	4636	4364	60	45	22	4940	217	4158	190	110
	112-50-4500	114-50-4500	4726	4272	134	4636	4364	60	45	25	4850	191	4150	167	110
