Double Jacket Double Armoured GYTA53 Fiber Optical Cable

Categories	Underground Fiber Optic Cable
Brand Name:	JQ/OEM
Model Number:	GYTA53-12/24/48B1.3
Certification:	ISO9001/RoHs/FCC
Place of Origin:	Guangzhou,China
MOQ:	2km
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	6500KM Per Month
Delivery Time:	5-8 work days
Packaging Details:	wooden drum
Fiber type:	YOFC,Fiberhome,as request
Color:	Black or as your required
Jacket:	PE,HDPE
Strength member:	Steel wire
Fiber count:	2-144 cores
Installation:	directly buired & underground
Fiber color:	Blue,Orange,Brown,Aqua,Grey
Armored:	Steel tape
Product name:	Outdoor Optic Fiber Cable
Application:	FTTH, OUTDOOR

Contact Now

Add to Cart

Company Info.

Guangzhou Jiqian Fiber Optic Cable Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

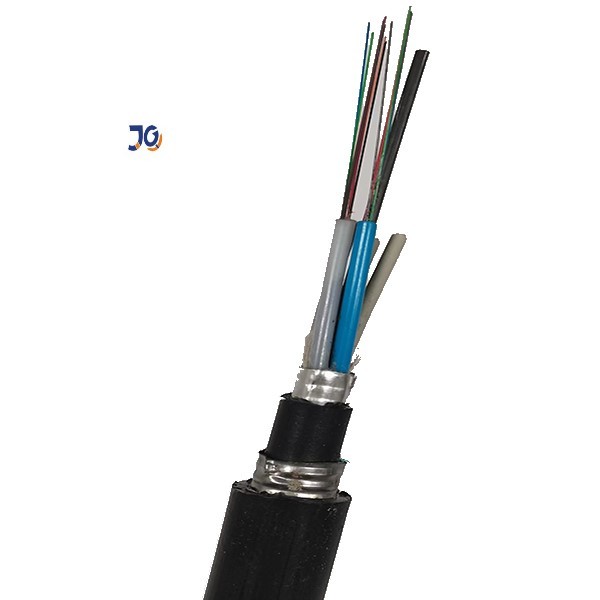

Double Jacket Double Armoured GYTA53 Fiber Optical Cable

double jacket double Armoured GYTA53 Fiber Optical Cable

Product Description

The structure of the GYTA53 cable is a 250µm fiber optic jacket filled with a waterproof compound in a loose tube made of high modulus material.

The center of the cable core is a metal reinforcing core. The loose tube (and filler rope) is twisted around the central reinforcing core to form a compact and round cable core, and the gaps in the cable core are filled with water blocking filler.

Plastic-coated aluminum tape (APL) longitudinally wrap and then extrud with a polyethylene inner sheath, and double-sided plastic-coated steel tape (PSP) longitudinally wrap to extrude a polyethylene sheath into a cable.

Application

Application: Duct / underground/Direct buried
Standard : YD/T 901-2001 and IEC 60794-1

Specification & Features

Has good mechanical properties and temperature characteristics.
The loose tube material itself has good hydrolysis resistance and high strength.
The tube is filled with a special ointment to provide critical protection for the fiber.
Good compression resistance and softness.
Single metal center reinforcement.
The loose tube is filled with special waterproof compound.
Complete core filling.
Plastic coated aluminum tape (APL) moisture barrier.
Double-sided plastic-coated steel tape (PSP) improves the moisture resistance of theoptical cable.
Good water blocking material to prevent longitudinal water seepage of the optical cable.

Optical Characteristics

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

Technical Parameters

Fiber Count	Diameter (MI)	Weight (KG/KMI)	Min.Bend Radius		Mlin.Tension (N)		Crush (N/100MMl)
Fiber Count	Diameter (MI)	Weight (KG/KMI)	Static	Dynamic	Long Term	Short Term	Long Term	Short Term
2-24	12.0	180	10 times Diameter	20 Times Diameter	1000	3000	1000	3000
26-36	12.2	195			1000	3000	1000	3000
38-60	12.5	205			1000	3000	1000	3000
62-72	12.8	225			1000	3000	1000	3000
74-96	13.5	245			1000	3000	1000	3000
98-120	14.4	275			1000	3000	1000	3000
122-144	16.5	315			1000	3000	1000	3000

Product showes

FAQ

1. Are you tradning company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

2. About the quality?

We will delivery before tested every fibers when finished production.

After price confirmation, you can require for free samples to check our quality.

3. Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4. What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
