| Categories | Aluminum Oxide Ceramic |
|---|---|
| Brand Name: | KAMTAI |
| Model Number: | KTJC14-320 |
| Certification: | ISO 9001 |
| Place of Origin: | CHINA |
| MOQ: | 1000PCS |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 20000PCS/ MONTH |
| Delivery Time: | 25 DAYS AFTER PAYMENT |
| Packaging Details: | CARTON BOX AND PLYWOOD PALLET |
| Name: | 99% al2o3 plate with good heat resistance and effective cost |
| Color: | Ivory white |
| Size: | Cutomize |
| Package: | Carton box |
| Density: | 3.9g/cm3 |
| MOQ: | 1000PCS |

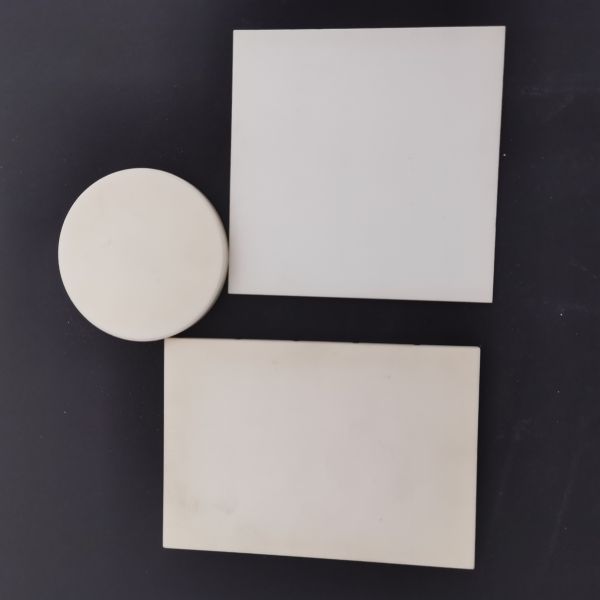

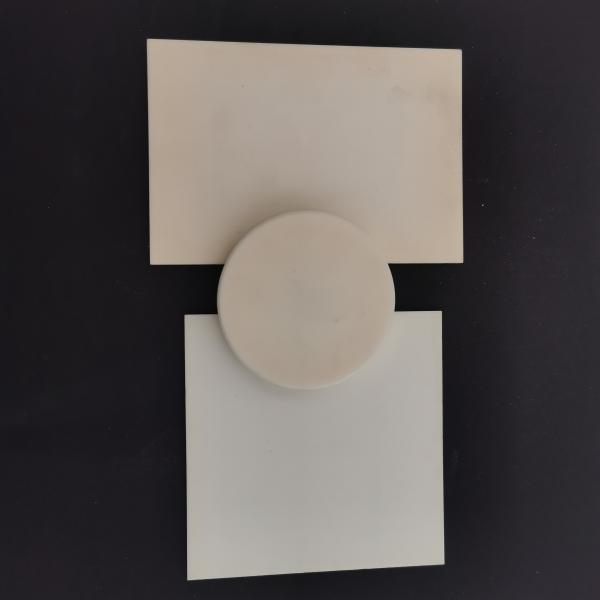

High Performance Aluminum Oxide Ceramic 99% Al2o3 Plate With Good
Heat Resistance
1.Aluminum oxide ceramic plates have a wide variety of applications:
• Alumina plates are hard enough to become armor for personnel or
vehicles.
• The corrosion resistivity of alumina plates makes them a great
material for the chemical industry.
• Used as a material for industrial furnaces due to its ability to
maintain its hardness at high temperatures.
• Used for making parts for CVD thin films, ion implants,
photolithography, and semiconductor parts.
• In traditional industries, alumina ceramics are ideal for
products such as injector tubes, gas nozzles, and insulators.
2.Technical Data
Item | Unit | Zirconia ceramic | 99% alumina ceramic | 96% alumina ceramic | 95% alumina ceramic | steatite ceramic | Mullite ceramic | cordierite ceramic |
Bulk density | g/cm3 | 6 | 3.8 | 3.7 | 3.6 | 2.8 | 2.2 | 2.3 |
Water absorption | % | 0 | 0 | 0 | 0 | 0 | 12 | 12 |
Thermal Conductivity | (W/m.k) | 10 | 19-30 | 16-28 | 14-24 | 2-3 | 2-6 | 1.3-1.8 |
Resistance to thermal shock, Minimum | TKε | 70 | 150 | 140 | 140 | 80 | 150 | 300 |
Withstand voltage, Minimum | KV | 15 | 20 | 18 | 18 | 20 | 25 | - |
Flexural strength | Mpa | 1000 | 300 | 280 | 240 | 120 | 120 | 30 |
Sinterring temperature | ℃ | 1500 | 1670 | 1600 | 1600 | 1250 | 1250 | 1250 |
Maximum working temperature | ℃ | 1200 | 1500 | 1200 | 1200 | 800 | 1000 | 1000 |

|
