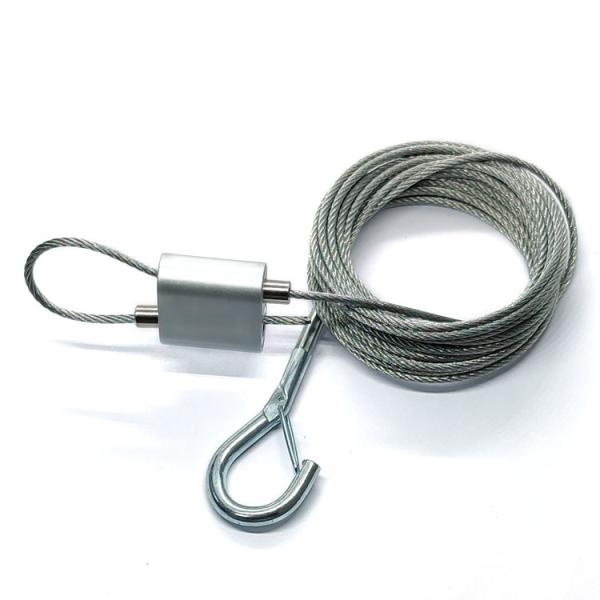

Cable Lock Suspension Kits Cable Looping Gripper

Feature of Cable looping gripper

1. Fast and Reliable Looping Maker,Makes installation quick and easy.
2. Create an adjustable loop in a suspension cable with a neat hook for hanging.
3. Hang items from beams, trusses, pipes and trunking.
4. Tool Free:Setting and Adjustable without utilizing tools.
5. Low cost and competitively priced for use in industrial and architectural lighting applications.

Technical Parameters of Cable looping gripper

Advantages of Cable looping gripper

Aesthetically appealing and easy to handle.
Saves time in installation/alignment unlike traditional threaded rods/angles.
Built-in pin for tool less adjustments with optional safety lock.

About the application of Cable looping gripper

Ideal solution for the following:
A. HVAC ducting.
B. Electrical (Cable Trays/Baskets, Lighting).
C. Signage Systems.
D. Fencing and Railing.
E. Mechanical (Copper pipes, Steel Pipes, Intermediary supports, bracing & pipe rack).
F. Catenaries/Horizontal Wire Rope Solutions.
G. Suspended Ceilings (False Ceiling, Acoustic baffles, etc).

Custom order information of Cable looping gripper

Contact us to receive a quote for your project.
After placing an order, the customer receives via fax or e-mail a Customer Order Acknowledgment, which indicates in detail descriptions of items and pricing. Orders will not be processed without WIRE ROPE MATE HARDWARE receiving a signed copy of said Customer Order Acknowledgment. Make sure to review and initial all areas. All changes to your orders of stock merchandise can be modified no later than 24 hours after receiving your order. We will call or fax you immediately should something change concerning your order.

Packaging Information of Cable looping gripper

500 pieces in a plastic bag, and then into a carton.
By Air: 12kg per carton.
By Sea: 25kg per carton.
Using European standard wooden pallets, one pallet can hold up to 700kg.

International Shipping Around the World

All the Cable looping gripper can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.

FAQ:

How to use the looping gripper?

(1) Pass the wire rope through the Looping gripper
(2) Loop wire rope through/around support
(3) Pass wire rope back through Looping gripper
(4) Push wire rope through clamp leaving 2" to 3" tail, then apply tension on wire rope
(5) To adjust, remove tension and pull wire rope slightly to disengage, slide pin in direction shown by arrow to release wire rop

How to use the looping gripper?

INSTALLATION:
STEP 1: Insert cable into Looping Gripper.
STEP 2: Pass cable through or around anchor point.
STEP 3: Insert cable back into Looping Gripper.

How To Use the Cable Looping Gripper?

Cable Looping Gripper is simple to use.
As you insert uncoated, galvanized steel cable into the arrow guided clutch, the built-in locking mechanism automatically grips the wire.
To release, press the clutch button which allows the cable to freely move back and forth for quick and easy height and leveling adjustments.
