240x23Nx26.3 Exedy Clutch Kits 41100-5K200 Hyundai Disc Assy Clutch

240x23Nx26.3 Exedy Clutch Kits 41100-5K200 Hyundai Disc Assy Clutch

41100-5K200 HYUNDAI DISC ASSY-CLUTCH 240x23Nx26.3 Exedy Clutch Kits

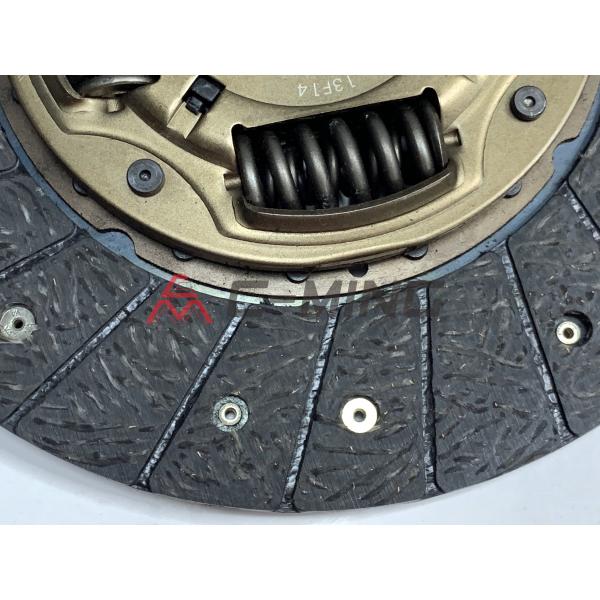

The outer diameter of this disc assy clutch / EXEDY Clutch Kit is 240mm, and the inner diameter is 150mm. There are 23 splines. Its Major Diameter is 26.14mm. The net weight of the clutch plate is 1.55kg. This clutch dic is used for Hyundai H100 Bus (P), H-1 / STAREX, H100 Box, H-1 Box, H-1 Platform/Chassis, GRACE Bus, H100 Platform/Chassis with D4BF, D4BH, D4CB, G4CS, G4JS, D4BB, G6BAJ engine.

PHC VALEO number. is HD-113. EXEDY number is HYD312, and AISIN number is DY-014.

OEM reference number(s) comparable with the original spare part number are

OEN 41100-5K200 — HYUNDAI.

OEN 41100-4B000 — HYUNDAI

OEN 41100-4B020 — HYUNDAI

OEN 41100-4B010 — HYUNDAI

OEN 41100-4B021 — HYUNDAI

OEN 41100-4B030 — HYUNDAI

PRODUCT SPECIFICATION

OE NUMBER

ARTNUM

Model	Engine	Displacement	Power	Hp	Type	Year
HYUNDAIH100 Bus (P)						(1993/07 - 2004/10)
H100 Bus (P) 2.5 TD	D4BF	2476	59	80	Bus	93/07 - 00/03
HYUNDAIH-1 / STAREX						(1997/06 - /)
H-1 / STAREX 2.5 D	D4BF	2476	57	78	MPV	97/10 - 04/04
H-1 / STAREX 2.5 TCi	D4BH	2476	73	99	MPV	97/10 - 07/12
H-1 / STAREX 2.5 TCi	D4BH	2476	74	101	MPV	04/05 - 07/12
H-1 / STAREX 2.5 TD 4WD	D4BH	2476	73	99	MPV	01/03 - 04/04
H-1 / STAREX 2.5 TD 4WD	D4BH	2476	74	101	MPV	01/11 - 04/04
H-1 / STAREX 2.5 CRDi	D4CB	2497	81	110	MPV	06/06 - 07/12
H-1 / STAREX 2.4	G4CS	2351	82	112	MPV	97/06 - 04/04
H-1 / STAREX 2.5 TD	D4BF	2476	59	80	MPV	97/06 - 04/04
H-1 / STAREX 2.4 4WD	G4CS	2351	82	112	MPV	98/02 - 04/04
H-1 / STAREX 2.5 TD 4WD	D4BF	2476	59	80	MPV	98/02 - 04/04
H-1 / STAREX 2.4 4WD	G4JS	2351	99	135	MPV	01/06 - 04/04
H-1 / STAREX 2.4	G4JS	2351	101	137	MPV	03/02 - 04/04
H-1 / STAREX 2.6 TDiC	D4BB	2607	63	86	MPV	97/10 - 04/04
H-1 / STAREX 2.4	G4JS	2351	107	145	MPV	01/11 - 04/04
HYUNDAIH100 Box						(1993/07 - 2004/12)
H100 Box 2.5 TDiC	D4BF	2476	59	80	Box	98/06 - 03/10
H100 Box 2.6 D	G6BAJ	2659	57	78	Box	99/10 - 04/12
HYUNDAIH-1 Box						(1997/10 - 2007/12)
H-1 Box 2.5 TD	D4BH	2476	74	101	Box	01/10 - 04/04
H-1 Box 2.4	G4JS	2351	107	145	Box	01/11 - 04/04
H-1 Box 2.5 TD	D4BF	2476	59	80	Box	00/03 - 00/09
H-1 Box 2.4	G4CS	2351	82	112	Box	00/03 - 04/04
H-1 Box 2.5 TD	D4BH	2476	73	99	Box	00/03 - 04/04
H-1 Box 2.6 CRDi	D4BB	2607	79	107	Box	97/10 - 07/12
HYUNDAIH-1 Platform/Chassis						(2000/06 - 2005/10)
H-1 Platform/Chassis 2.5 D	D4BH	2476	73	99	Platform/Chassis	00/06 - 05/10
HYUNDAIGRACE Bus						(1993/07 - 2004/10)
GRACE Bus 2.5 TD	D4BF	2476	59	80	Bus	98/06 - 01/10
GRACE Bus 2.6 D	G6BAJ	2659	57	78	Bus	99/10 - 04/10
HYUNDAIH100 Platform/Chassis						(1993/07 - 1997/12)
H100 Platform/Chassis 2.5 D	D4BF	2476	59	80	Platform/Chassis	96/05 - 97/12

DETAILED IMAGES
