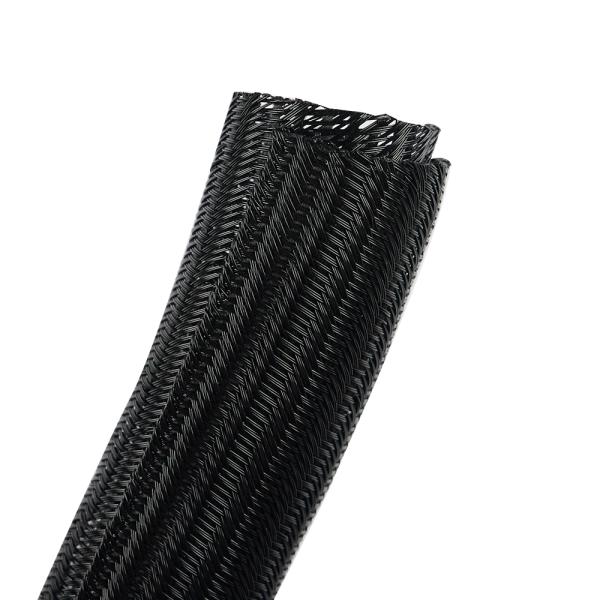

| Categories | Self Wrapping Split Braided Sleeving |
|---|---|
| Place of Origin: | Guangdong, China |
| Brand Name: | HuiYunHai |
| Model Number: | 201 |
| Packaging Details: | Spool + carton |
| Supply Ability: | 9999999 Piece/Pieces per Month |
| MOQ: | 1000 meters |
| Price: | $0.22 - $4.50/meters |
| Type: | Self closing cable sleeve |
| Material: | PET and PP |
| Working Temperatur: | -50°C----150°C |
| Melting Point: | 250℃ |
| Flammability: | UL94 V2 |
| Certified: | RoHS,Halogen Free |
| Standard Colors: | Black,white,grey,yellow and so on |
| Cutting Tool: | Hot Knife |
| Application: | The products are widely used in high-speed railway |
| Port: | Shenzhen |
| Company Info. |
| SHENZHEN HUIYUNHAI TECH CO., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
Technique Data-Sheet | ||
Material: | PET and PP | |
Working Temperature: | -50°C----150°C | |
Melting Point: | 250℃ | |
Flammability: | UL94 V2 | |
Certified: | RoHS,Halogen Free | |
Standard Colors: | Black,white,grey,yellow and so on. | |
Cutting Tool: | Hot Knife | |
Application: | The products are widely used in high-speed railway, automobile,
automation equipment and computer wire, especially in the environment that needs protection and heat dissipation. | |
Size specification | ||||||||
Model No. | Inner d%iameter(d) | Coincidence rate(%) | Max wire harness diameter | Packing(L) | ||||
SCW-006 | 6.0 | 25 | 7.0 | 100m/Roll | ||||
SCW-009 | 9.0 | 10.0 | 100m/Roll | |||||
SCW-013 | 13.0 | 14.0 | 50m/Roll | |||||
SCW-016 | 16.0 | 17.0 | 50m/Roll | |||||
SCW-019 | 19.0 | 20.0 | 25m/Roll | |||||
SCW-025 | 25.0 | 26.0 | 25m/Roll | |||||
SCW-032 | 32.0 | 33.0 | 25m/Roll | |||||
SCW-038 | 38.0 | 40.0 | 25m/Roll | |||||
SCW-050 | 50.0 | 52.0 | 25m/Roll | |||||














|
