Stainless Steel Security Anti Climb Blade Barbed Prison concertina razor wire

Categories Concertina Razor Wire
Brand Name: QiJie
Model Number: 500mm diameter
Certification: CE
Place of Origin: HeBei,China
MOQ: 1000meters
Price: negotiate
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 2000 Roll/Rolls per Month
Delivery Time: within 30 days
Packaging Details: packing with plastic cloth
Razor Type:: BTO-22
Application:: Protective Construction
Material:: hot dipped galvanized sheet
Type:: Barbed Wire Coil
Circle Diameter:: 50cm
Length:: 30m/roll
Razor Thickness:: 0.4-0.5mm
Wire core: 2.5mm
Email: devin@industrialmetalmesh.com
whatsapp: +8615369013183
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Stainless Steel Security Anti Climb Blade Barbed Prison concertina razor wire

Galvanized Security Fencing Concertina Price Anti Climb Blade Barbed Wire Prison Razor Barbed Wire​


Razor wire is called The concertina barbed wire, it is barrier equipment, which is made of hot-dip galvanized steel sheet or stainless-steel sheet punched out of sharp blade shape, high-tensile galvanized steel wire or stainless-steel wire as the core wire. Because of the unique shape of the gillnet and it is not easy to touch, it can achieve an excellent protective isolation effect.


Material:
Galvanized wire and plate
Heavy Zinc coated wire and plate
Stainless steel wire and plate

Process: galvanized steel plate or stainless steel plate punched into certain forms then attached to the steel wire in sharp angle to form the blades.
Barbed Types
: BTO-10 BTO-18 BTO-22 CBT-60 CBT-65

concertina razor wire


Sepcification for Razor wire
Reference NumberThicknessWire DiaBarbBarbBarb
LengthWidthspacing
BTO-100.5±0.052.5±0.110±113±126±1
BTO-120.5±0.052.5±0.112±115±126±1
BTO-180.5±0.052.5±0.118±115±133±1
BTO-220.5±0.052.5±0.122±115±134±1
BTO-280.5±0.052.5281545±1
BTO-300.5±0.052.5301845±1
CBT-600.6±0.052.5±0.160±232±1100±2
CBT-650.6±0.05 02.5±0.165±221±1100±2
Sepcification for Welded Razor Wire Mesh
Razor wire typeMesh openingHeightLength
BTO-1050x50mm1m6m
BTO-12100x100mm1.5m10m
BTO-1875x100mm2m15m
BTO-2275x150mm2.5m20m
BTO-2875x75mm30m
BTO-30as your require
CBT-60
CBT-65
Outside DiameterNo. of LoopsStandard Length per CoilTypeNotes
450mm338MCBT-65Single coil
500mm4110MCBT-65Single coil
700mm4110MCBT-65Single coil
960mm5313MCBT-65Single coil
500mm10216MBTO-10.15.22Cross type
600mm8614MBTO-10.15.22Cross type
700mm7212MBTO-10.15.22Cross type
800mm6410MBTO-10.15.22Cross type
960mm529MBTO-10.15.22Cross type

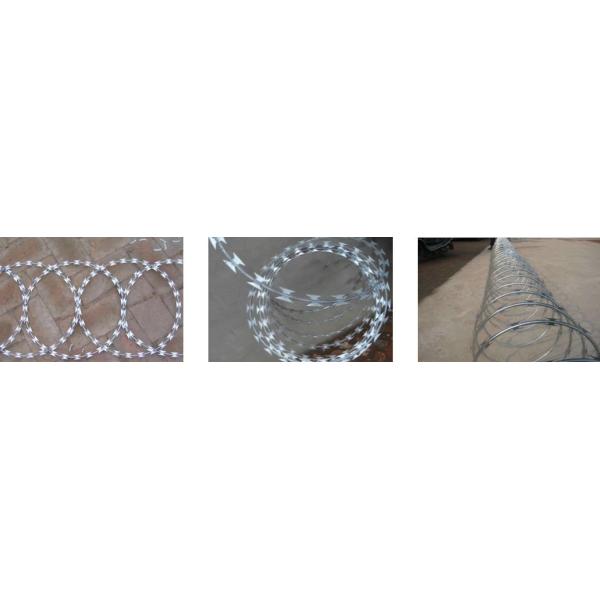

type of razor wire


Razor Barbed Wire Feature:
1. Razor barbed is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-
tensile wire.
2. Visual and psychological deterrent.
3. Resistance to corrosion.
4. Low price and easy to install.
5. It can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with
piecing and cutting razor blades mounted at the top of the wall, its special designs making climbing and touching
extremely difficult.


type of razor wire

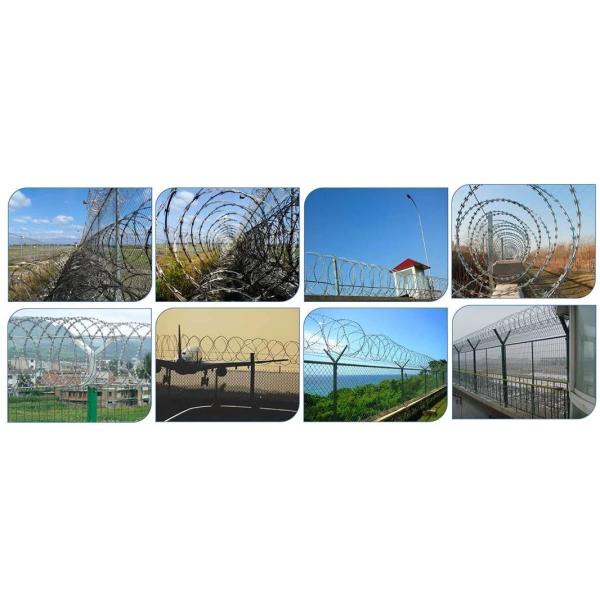

Applications:
Razor barbed wire is widely used by many countries in military field, prisons, detention houses, government buildings
and other national security facilities. Recently years, barbed tape has apparently become the most popular high-class
fencing wire for not only military and national security applications, but also for cottage and society fence, and other
private buildings.

application of razor wire
