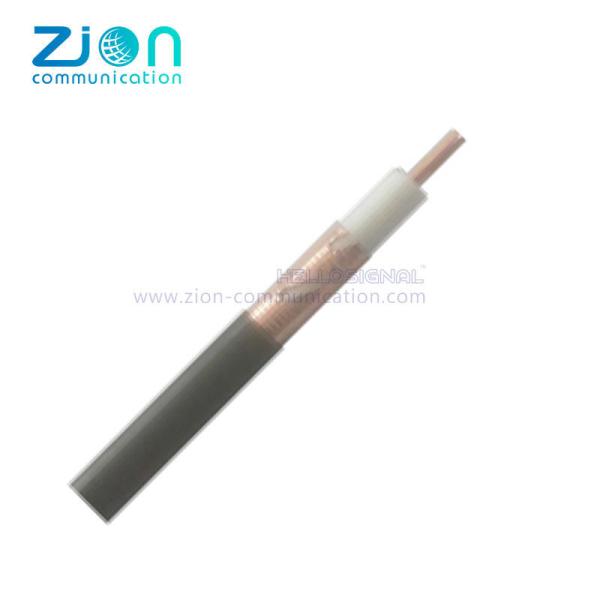

1/2" Radiating Leaky Cable (H Band) 1/2 Inches Radiating Cable For Wireless Mobile Communication

Categories	50 Ohm Coaxial Cable
Brand Name:	Zion communication OR OEM
Model Number:	Leaky Coaxial Cable
Certification:	ISO, CE, RoHS, UL
Place of Origin:	China
MOQ:	1 KM
Payment Terms:	T/T, L/C
Supply Ability:	1000KM / Month
Delivery Time:	25 working days
Packaging Details:	100M, 300M, Wooden Reel, Carton
Inner Conductor:	copper tube
Dielectric:	Cellular polyethylene
Outer Conductor:	Copper foil
Jacket:	Black PE or Black LSZH
Marking:	Brand, cable type, cable ID, meter mark

Contact Now

Add to Cart

Company Info.

HANGZHOU ZION COMMUNICATION CO., LTD

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

1/2” Radiating Leaky Cable(H Band) NO.7101131

CABLE TYPE: RFXT 1/2”-50H(BHF)；HLRCAY(Z)-50-12H

Construction
Inner Conductor	copper tube		Ø 4.8 mm
Dielectric	Cellular polyethylene		Ø 12.2 mm
Outer Conductor	Copper foil		Ø 13.2 mm
Jacket	Black PE or Black LSZH		Ø 15.8 mm
Marking	Brand, cable type, cable ID, meter mark

Electrical Characteristics at +20℃
Characteristic impedance		50 ± 2 Ω
Velocity		0.88
Capacitance		76 pF/m
Insulation Resistantce		>5000 MΩ.km
Insulation Voltage		6000 V
Jacket Spark Test Voltage		8000 V

VSWR
Frequency (MHz)		VSWR (Max)
790~960		1.30
1700~1900
1900~2025		1.40
2100~2200
2300~2500
2500~2700

MECHANICAL CHARACTERISTICS
Weigh		210kg/km
Maximum pulling force		1000N
Minimum bending radius
Single bending		125 mm
Repeated bending		350 mm
Operating temperature range		-40~ +80℃
Min. installation temperature		-20℃ (PE); -5℃ (LSZH)

Attenuation and Coupling Loss
Frequency (MHZ)		Attenuation dB/100m @20℃	Coupling Loss (50%/95%) dB
800		7.3	79/84
900		7.9	76/82
1800		14.3	67/70
1900		15.0	67/71
2000		15.7	68/72
2200		16.7	67/71
2400		17.6	67/72
2600		18.6	65/69
2700		18.9	66/70
Note: Attenuation tolerance 5%; Coupling Loss tolerance ±5dB

Order Informations:
Marking		HELLOSIGNAL 1/2” Radiating Leaky Cable(H Band) ××× M
Package		Inquired Length on Wooden Drum and Pallet.
Brand		HELLOSIGNAL® OR OEM
