| Categories | CATV Coaxial Cable |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Model Number: | KX Cable |
| Certification: | UL, ETL, CE, RoHS |
| Place of Origin: | China |
| MOQ: | 30 KM |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Delivery Time: | Normally 15 working days |
| Packaging Details: | 500M, 1000M, Wooden Drum, Pallet |
| Inner Conductor: | 7×0.008"/7×0.2mm/7×32 AWG Cu |
| Dielectric: | 0.15"/3.7mm Solid PE |
| Shield: | Copper Clad Aluminum(90%) |
| Jacket: | 6.10±0.10mm PVC |
| Company Info. |
| HANGZHOU ZION COMMUNICATION CO., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
75 Ohm CATV coaxial Cable NO.7100431 | |||
| Construction Parameters: | |||
| Inner Conductor | 7×0.008"/7×0.2mm/7×32 AWG Cu | ||
| Dielectric | 0.15"/3.7mm Solid PE | ||
| Shield | Copper Clad Aluminum(90%) | ||
| Jacket | 6.10±0.10mm PVC | ||
| Application | For Use in Longer CATV Run Lengths | ||
| Electrical Characteristics: | |||
| Inner Conductor Resistance | 87.5Ω/KM at 20℃ | ||
| Capacitance | 67 ±3 pF/m | ||
| Impedance | 75 ± 3 Ω | ||
| Return loss | between 5 and 1000MHz: > 22dB | ||
| Velocity of Propagation | 0.85 | ||
| Sparker Test (VAC) | 4 | ||
| Mechanical and Envrionmental Properties | |||
| Cable bend radius | 10 times the cable diameter | ||
| Operating Temp Range | -20 ℃ to 70℃ | ||
| Cable diamensions | 6.10±0.10mm PVC | ||

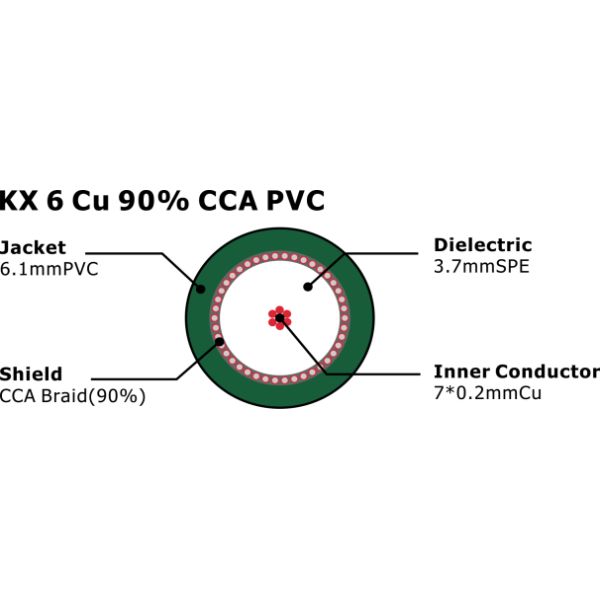

| Cross Section | |||
 | |||
| Attenuation(20℃): | |||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | |
| 10 | 5.00 | ||
| 50 | 8.10 | ||
| 100 | 13.00 | ||
| 200 | 18.50 | ||
| 400 | 22.50 | ||
| 850 | 34.50 | ||
| 950 | 37.50 | ||
| 1000 | 45.00 | ||
| Order Informations: | |||
| Marking | HELLOSIGNAL KX 6 Cu 90% CCA PVC CATV COAXIAL CABLE 7100431 ×××M/FT | ||
| Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | ||
| Delivery time | Normally 25 days after received the deposit. | ||
| Brand | HELLOSIGNAL® OR OEM | ||
|
